USED INGERSOLL-RAND HL5001S00VA0X

CFM: 500 cfm
Voltage: 115 volts
Phase: Single-phase

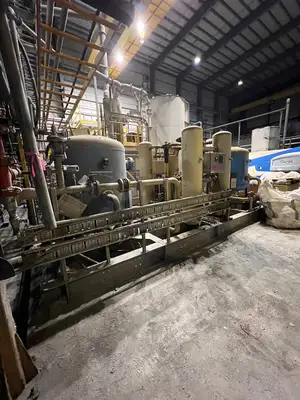

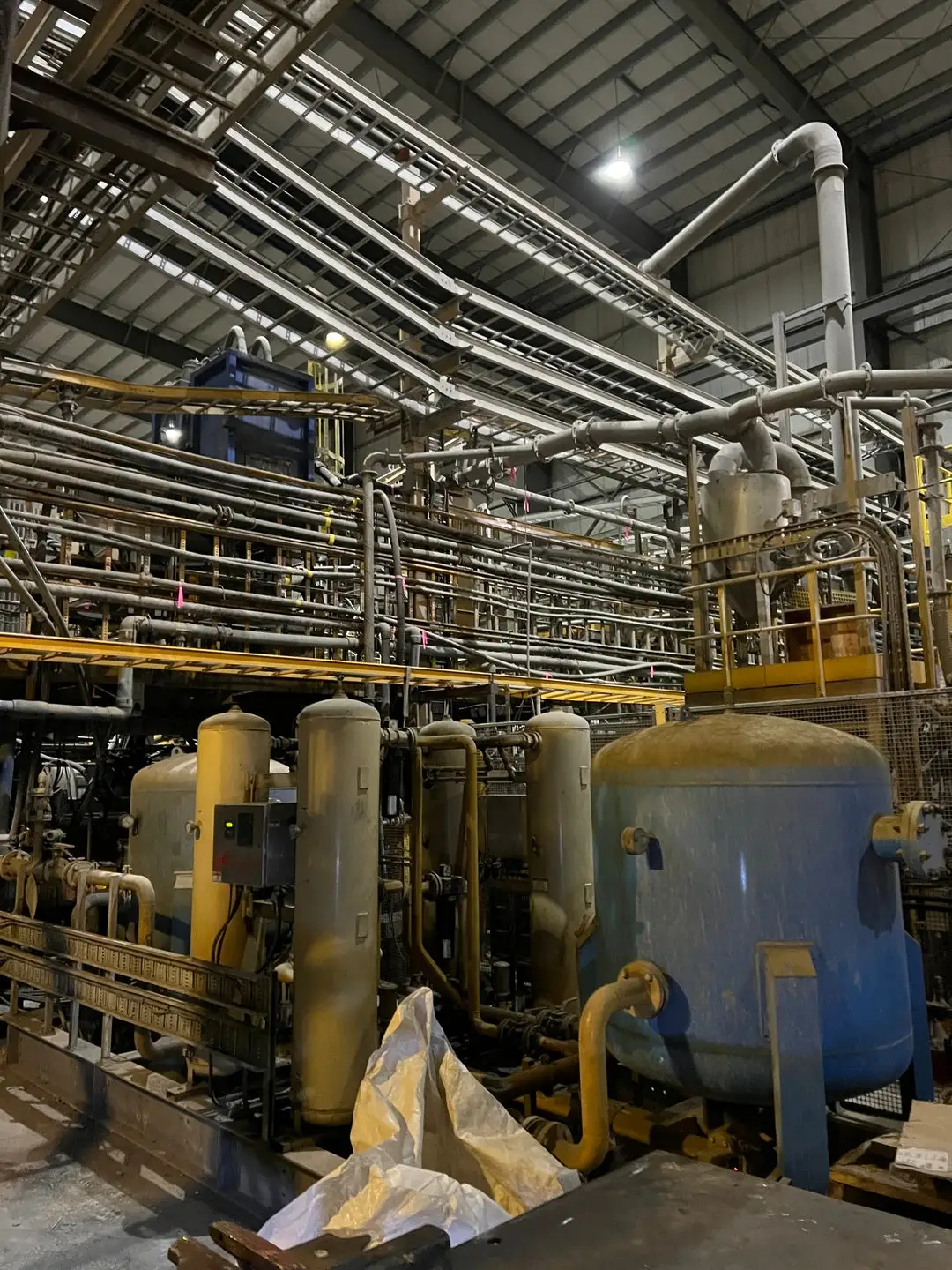

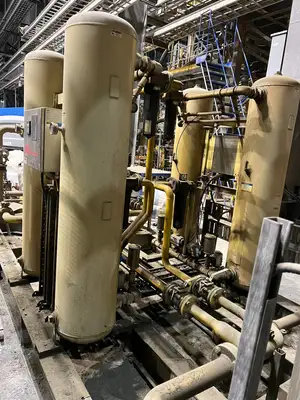

System Layout
(2) Ingersoll Rand Heatless Desiccant Dryers
(2) Oxair Air Receiving Tanks

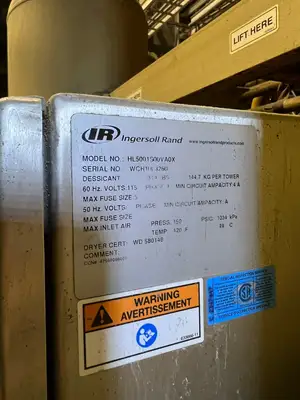

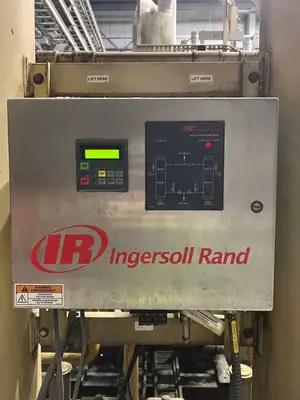

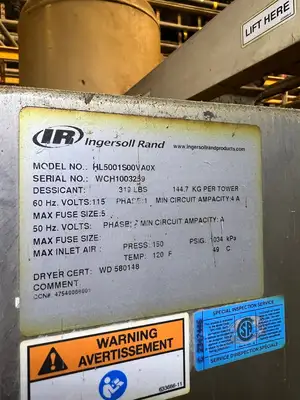

Desiccant Dryer
Capacity: 500 SCFM
Desiccant: 319 lbs (144.7 kg) Per Tower
Electrical: 115 V, 1- ph, 60 Hz
Min. Circuit Ampacity: 4 A
Max. Inlet Air Pressure: 150 psig (1034 kPa)
Max. Inlet Air Temp.: 120 F (49 C)

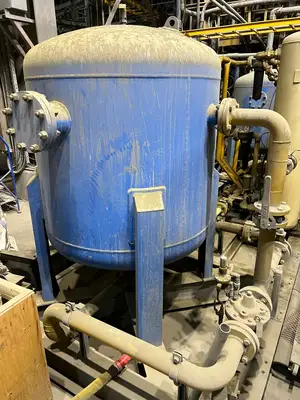

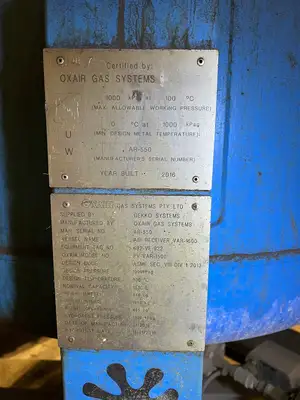

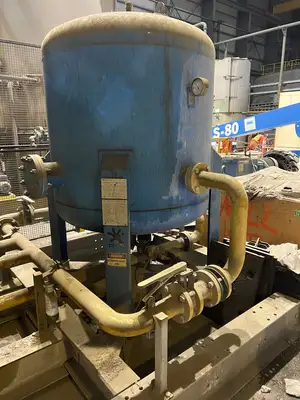

Oxair Receiver Tank
Oxair Model No.: PV-VAR-1500
Design Code: ASME SEC. VIII DIV. 1 2013
Nominal Capacity: 1510 L
Design Pressure: 1000 kPag
Design Temp.: 100 deg C
Min. Design Metal Temp.: 0 deg C at 1000 kPag
Weight (Empty): 446 kg
Weight (Hydro): 1956 kg
Weight (Operating): 465 kg
Hydrotest Pressure: 1300 kPag
