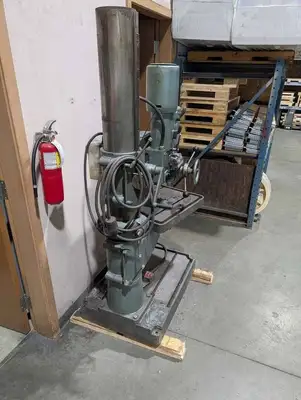

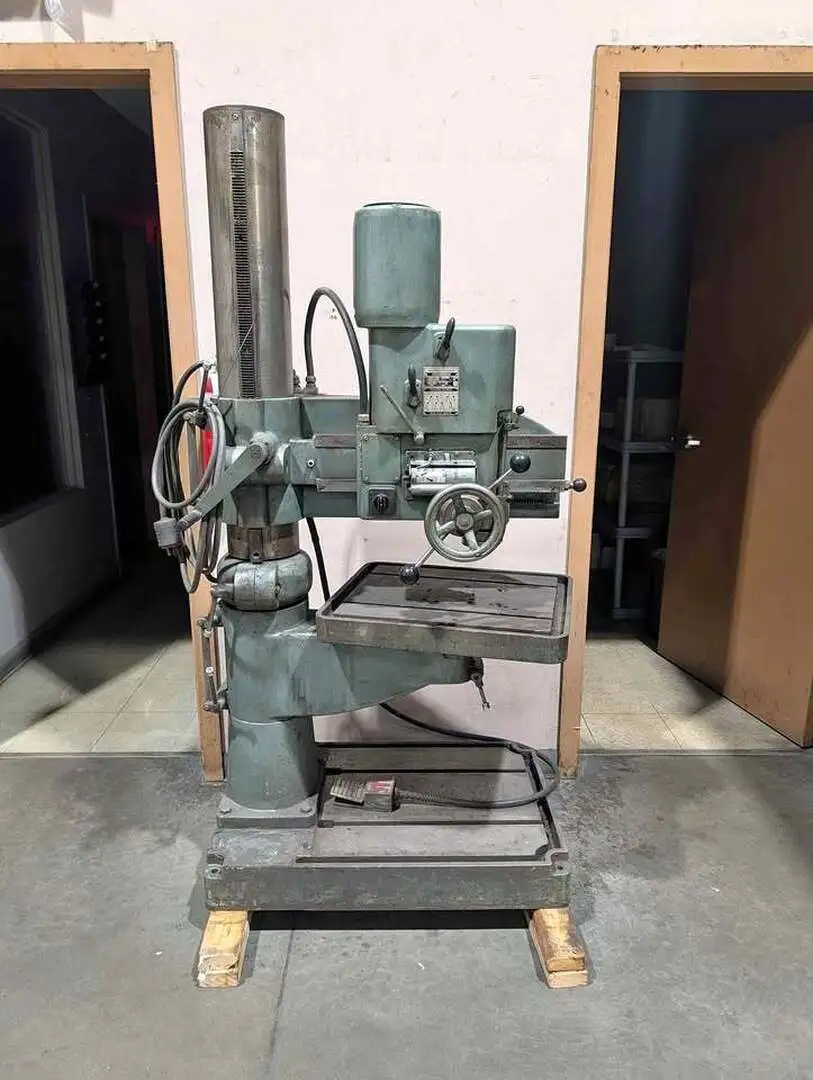

USED ARBOGA ER1830

Type: Drill Press
Morse Taper: MT#4
Table Size: 24" x 20"
Horsepower: 2.55 hp
Voltage: 575 volts
Phase: 3-phase
Diameter of Column: 8" "
Ditto between 16 mm (3/8") holes: 33.5" x 21.5"
Max distance centre of spindle to column: 24.5"
Min distance centre of spindle to column: 14.375"
Max distance spindle nose to baseplate: 53.75"
Min distance spindle nose to baseplate: 25.5"
Height of working surface of table above baseplate: 23.25"
Working surface of table: 19.625" x 23.5"
Vertical movement of column of radial arm: 28.125"
Diameter of ground column: 7.125"
Automatic power feed per spindle revolution: 0.004", 0.008"
Quill movement: 6.75"
Drilling capacity in steel: 1.25"
Drilling capacity in cast iron: 1.375"
Tapping capacity in steel (UNC/M): 1"
Tapping capacity in cast iron (UNC/M): 1.25"
Tapping/min: 4
