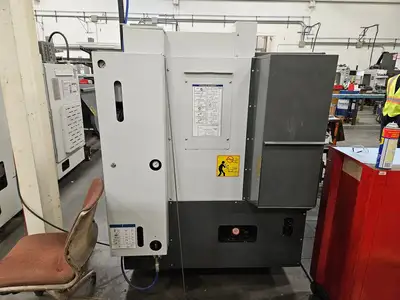

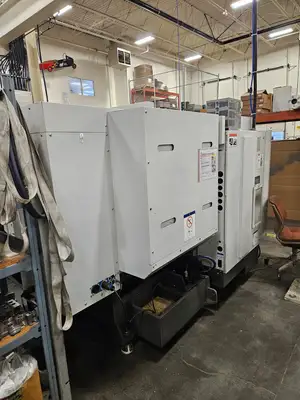

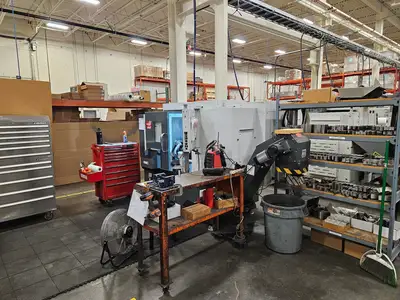

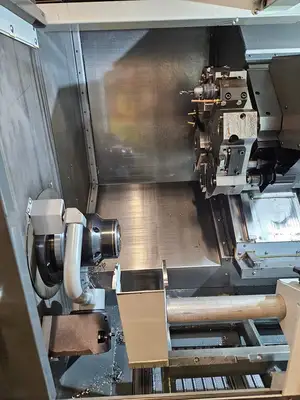

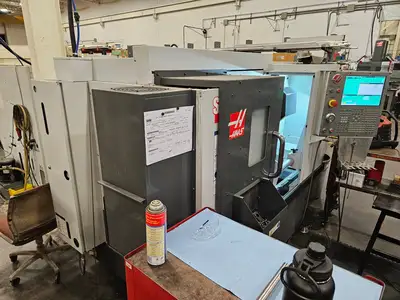

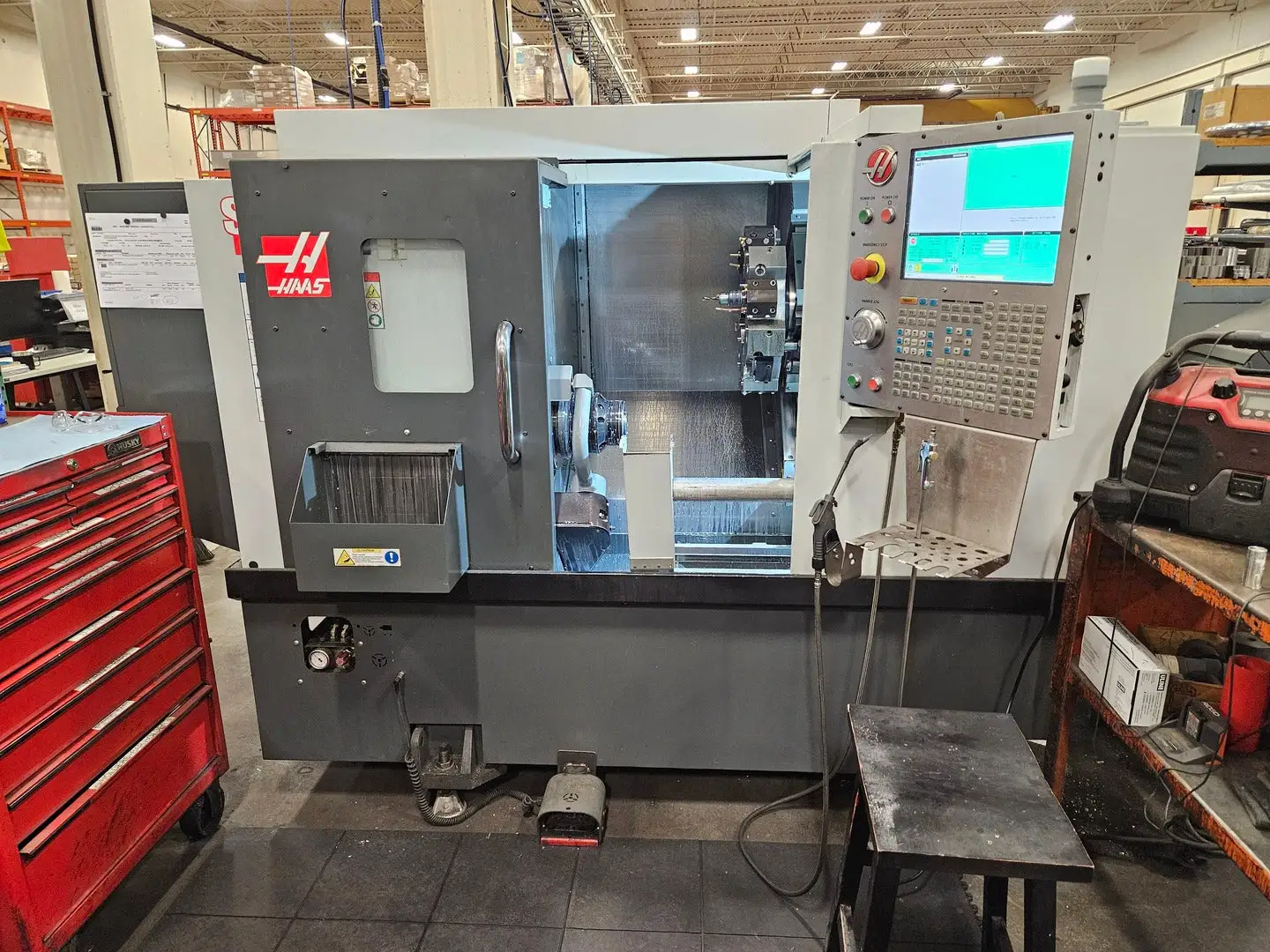

USED 2017 HAAS ST-15Y

Horsepower: 20 hp
Swing Over Ways: 16.5 "
Swing Over Carriage: 11 "
Bore Diameter: 2.5 "

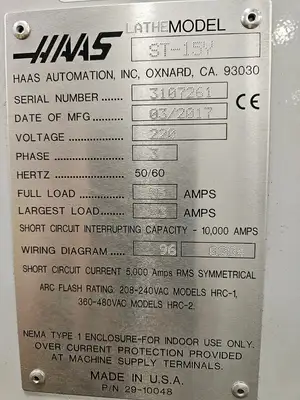

Voltage: 220 volts
Phase: 3-phase
Full Load Amps: 35 A
Largest Load Amps: 33 A

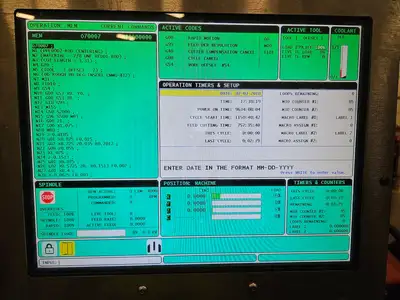

Power On Time: 9634 hrs
Cycle Start Time: 1150 hrs
Feed Cutting Time: 757 hrs

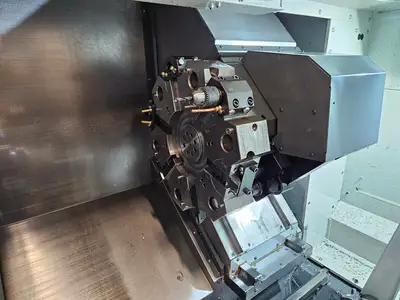

Number of Tools: 12 stations
Coolant Capacity: 30 gal.
Air Requirement: 4 scfm @ 100 psi
Capacity

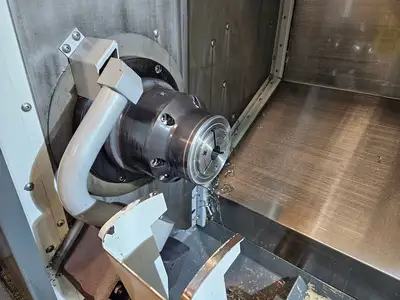

Chuck Size: 8.3"
Max Part Swing: 16.5"
Max. Cutting Diameter (with BMT45 turret): 11"
Bar Capacity: 2.50"
Travels
X-Axis Travel: 7.88"
Y-Axis Travel: +/- 2"
Z-Axis Travel: 16"
Feedrates
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 1200 ipm
Spindle
Spindle Nose: A2-6
Max. Horsepower: 20 hp
Max. Speed: 4000 rpm
Max. Torque: 150 ft-lbf @ 500 rpm
Spindle Bore Diameter: 3.50"
