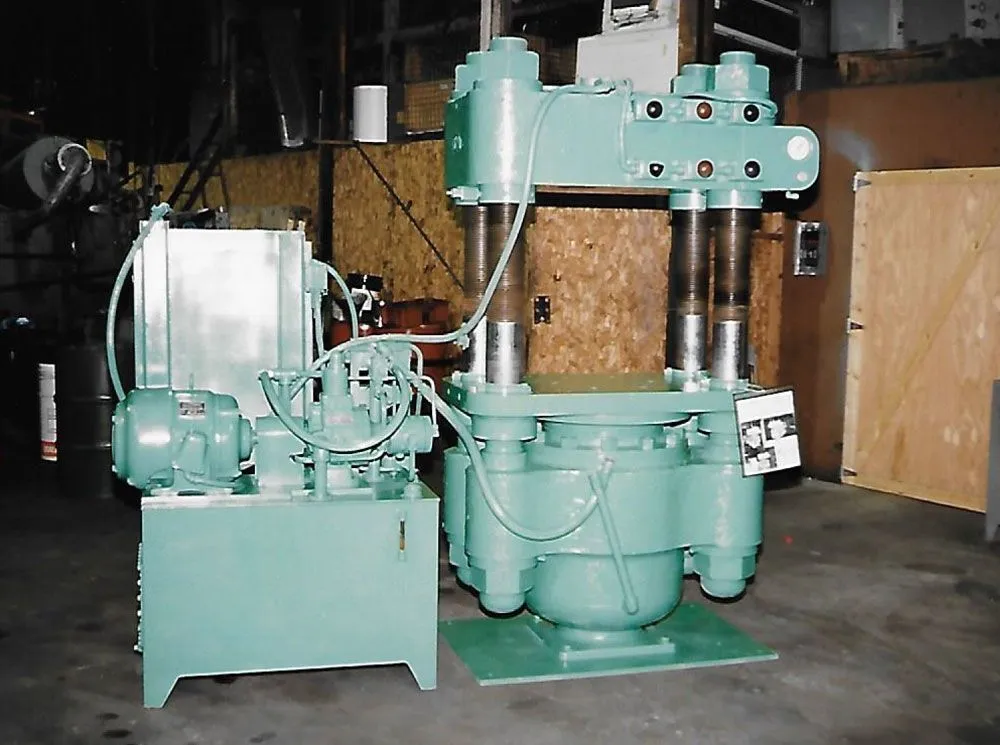

350 Ton, Four Post, Up-Acting, 12" stroke, 13"-30" adjustable daylight, 25.5" x 24" bed
350 TON 4 Post Press
Up-Acting
25 ½” X 24” L TO R UP-ACTING 4-POST PRESS
18” RAM WITH APPROX
12” STROKE
5” DIA. TIE RODS
ADJUSTABLE DAYLIGHT FROM 13” TO 30”
TWO 3” PLATES
TWO SETS OF ANTI-TIEDOWN PALM BUTTONS AND E-STOPS (TWO SPEEDS)
OVERALL DIMENSIONS APPROX. 90” TALL X 4’6” L TO R X 36” F TO B.
5 HP, 1200 RPM, 220/440 VOLT, 3000 PSI
RACINE VARIABLE VOLUME
2 FA PUMP AND RADIAL PISTON PUMP
38” X 20” X 22” TALL TANK
Press is being offered 'As-Is'
All machinery specifications need to be independently verified by buyer.
