4 Axis, 84" x 40" x 30" Fanuc 0iMC Control
| size | 84" x 40" x 31" | 84" x 40" x 31" |
| X Travel | 84" | 2,133.6 mm |
| Y Travel | 40" | 1,016 mm |
| Z Travel | 31" | 787.4 mm |
| Power | 30 W | 0 hp |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 30 | 30 |
| Taper | BT50 | BT50 |
| Table-W | 40 mm | 1.5748" |
| Table-L | 95 mm | 3.7402" |
| # Axis | 4 | 4 |
| Weight | 37500 | 37500 |

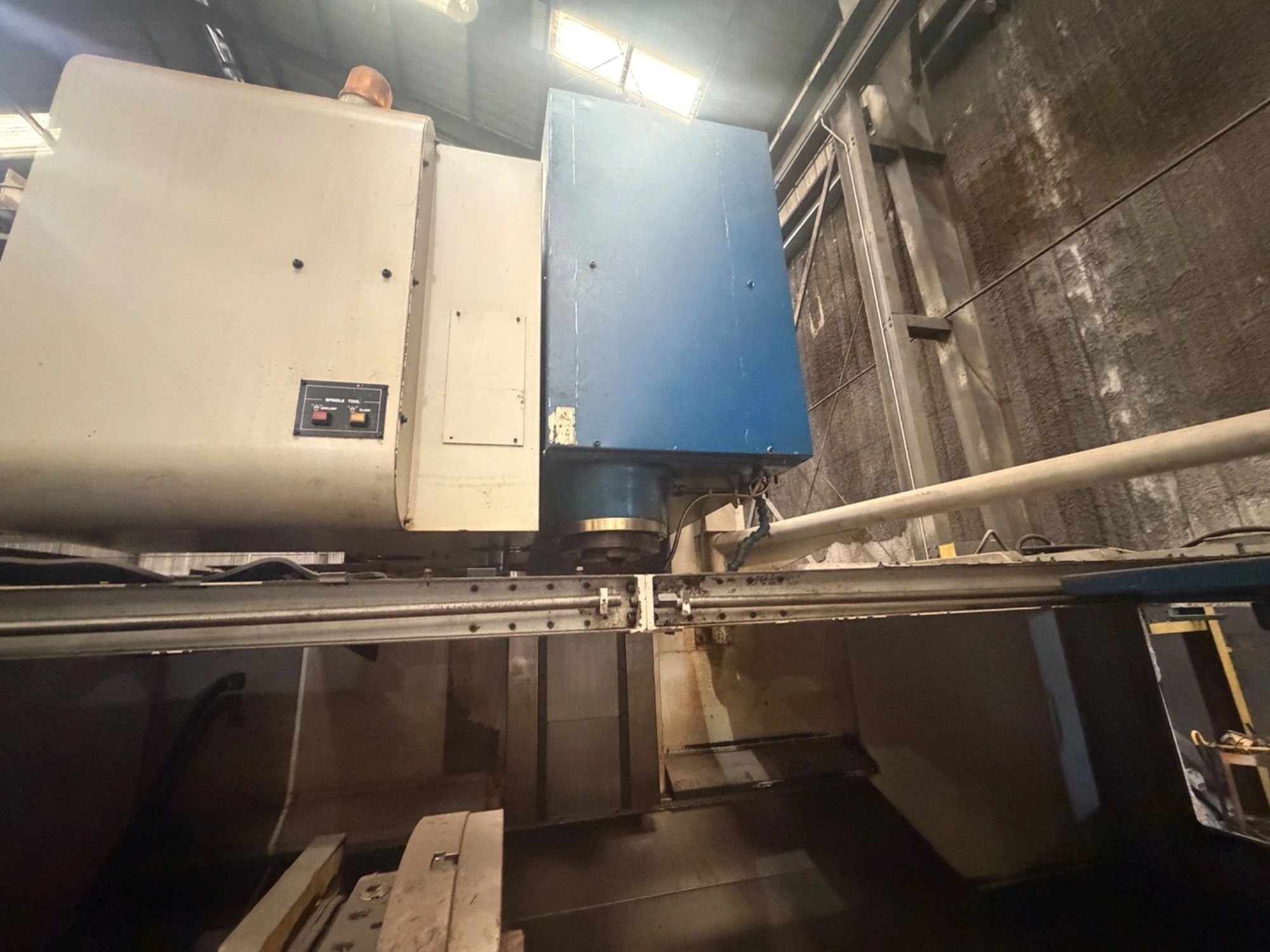

Kafo VMC-21100 4 Axis Vertical Machining Center (2006)
X-Axis: 84.6″
Y-Axis: 40.4″
Z-Axis: 31.4″
Rapid Traverse Rates: 810 Inch Per Minute
Cutting Feed Rates: 630 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″
Table:
Length: 95.2″
Width: 40.7″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 6800 lbs
Taper Size: 50
Speed Range: 7000 RPM
Spindle Power: 30 HP
Tool Changer Capacity: 30
Max Tool Weight: 18 lbs
Max Tool Dia: 5.9″
Max Tool Length: 11.8″ Tool Changing Time: 1.5 Seconds
Fanuc 0iMC Control
4th Axis Rotary Table
Thru Spindle Coolant
