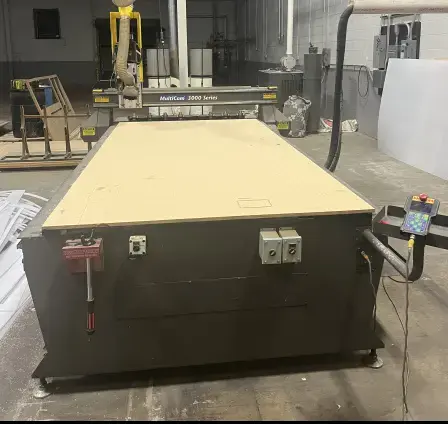

2009 Multicam 3000 Model 3 204R 5' x 10'

2009 Multicam 3000 Model 3 204R 5' x 10'
Mutlicam makes a industry tough machine that has a large table size for various jobs. This is another great offering from Asset Liquidity's offset and bindery equipment.

3000 Series Specs (inches)
Model: 3-204R
Working Area: 50.5” x 122”
Z-Axis Clearance: 6" - Optional 10"
Z-Axis Travel: 12"
Repeatability: +/- .001"
Positional Displacement Accuracy:+/- 0.005" over 10 feet
Maximum Cutting Speed: 1,400 ipm *
Maximum Rapid Traverse: 2,500 ipm *
Drive System X and Y axis: Rack and Pinion
Drive System Z axis: Ball Screw
Standard Work Surface: 1" Phenolic
Length: 183”
Width: 95”
Height: 77”
Weight: 5,170 lbs.
