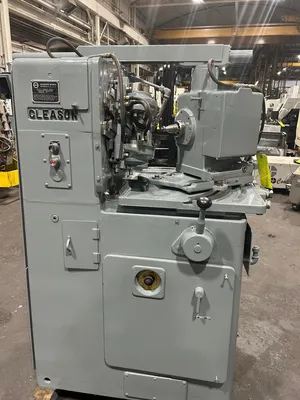

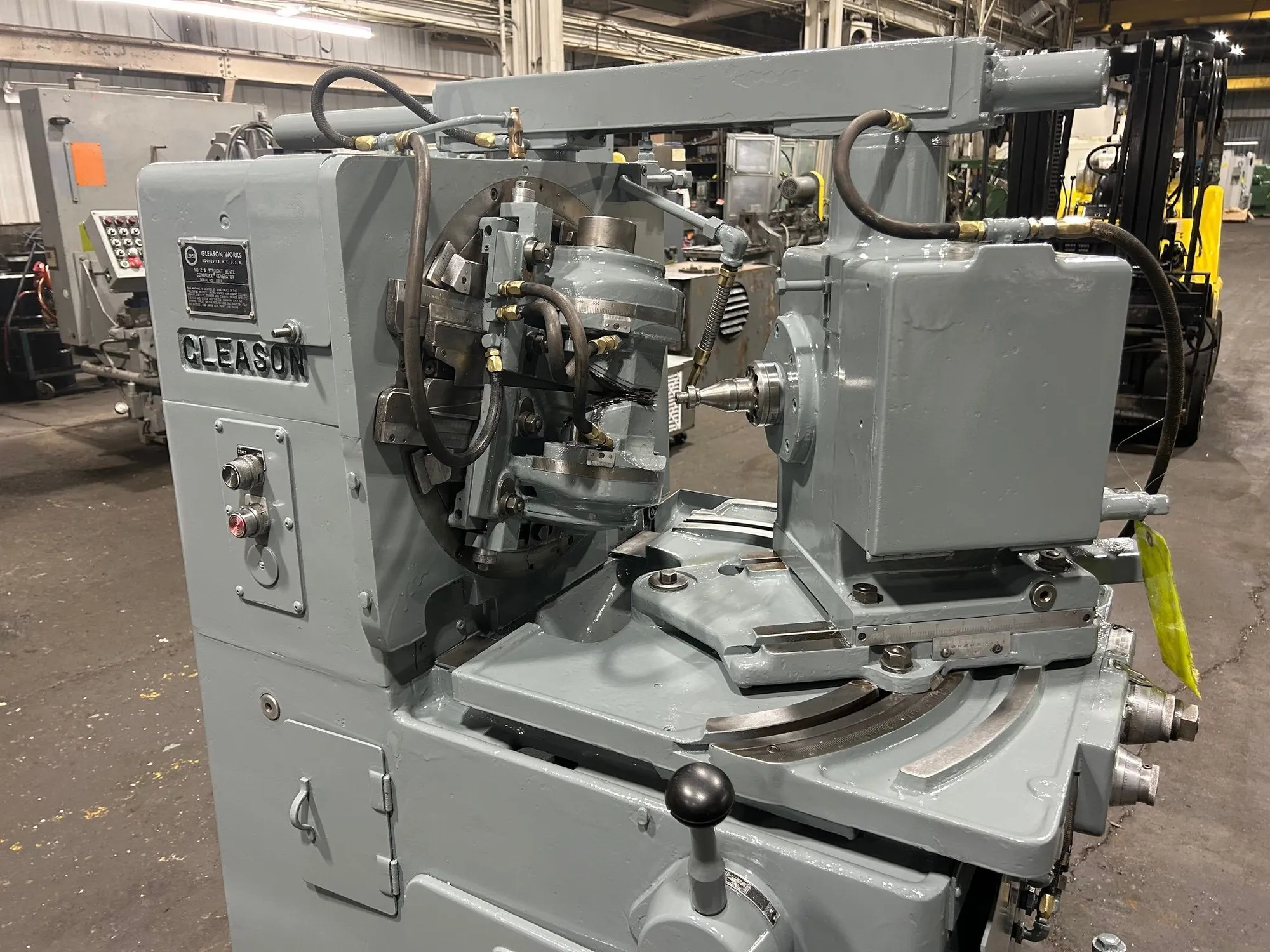

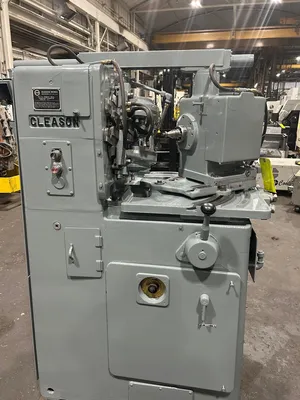

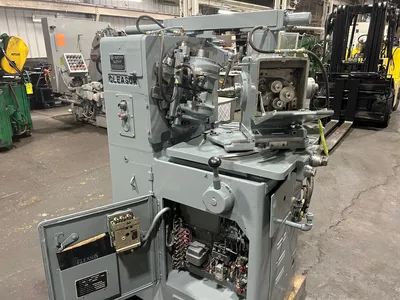

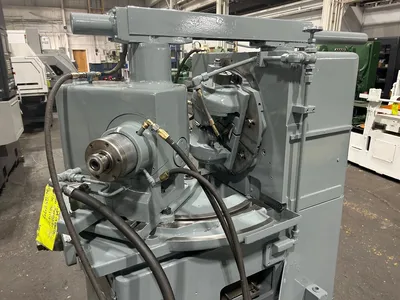

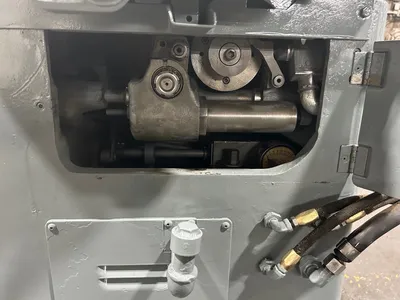

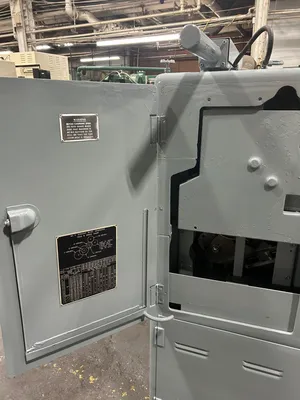

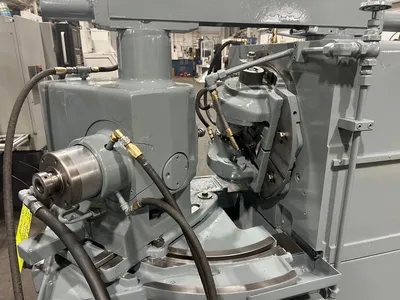

GLEASON Model 2A " CONIFLEX " straight bevel gear generator. Max workpiece diameter 4.5", face width 0.43", cone distance 2.25"..
| Type | GEAR GENERATORS, BEVEL, STRAIGHT | GEAR GENERATORS, BEVEL, STRAIGHT |
| Maximum Workpiece Diameter | 4.5" | 114.3 mm |
| Maximum Face Width | 0.43" | 10.922 mm |
| Diametral Pitch | 16 | 16 |
| Maximum Cone Distance | 2.25" | 57.15 mm |
| Extreme Ratio | 101 | 101 |
| Number of Teeth | 128 | 128 |
| Control Manufacturer | Conventional | Conventional |
| Dimensions | 39.5" x 26.5" x 60" | 39.5" x 26.5" x 60" |
| Weight | 3,425 # | 3,425 # |
Specifications:
Maximum pitch diameter: 4.5 (114mm)
Maximum cone distance: 2.25" (57mm)
Maximum face-width: .43" (11mm)
Work head angle: 0 to 90 degrees
Coarsest Diametral Pitch (Module): 16 DP (1.59 Module)
Diameter of taper hole in work-spindle at large end of taper: 1.496" (38mm)
Work spindle taper (per ft.): .5" (12.7mm)
Depth of taper: 3" (76.2mm)
Maximum distance, spindle nose to machine center: 5" (127mm)
Minimum distance, spindle nose to machine center: 1.25" (31.75mm)
Index range: 10 to 120
Pressure angle: 20 degrees
Cutter speed: 63 to 559 Ft./Min.
Feed per second (per tooth): .72 to 24
Main drive motor: .75 HP/1800 rpm
Overall machine length: 39.5" (1003mm)
Overall machine width: 26.5" (673mm)
Overall machine height: 60" (1524mm)
Approximate machine net weight: 3,425 Lbs. (1553 kGs)
Coniflex

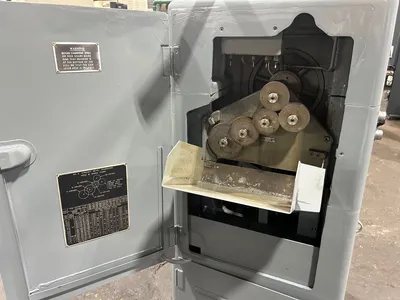

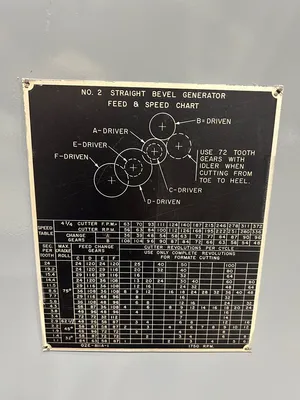

Change Gears
Cutter Adapters
Cutters
Coolant Pump

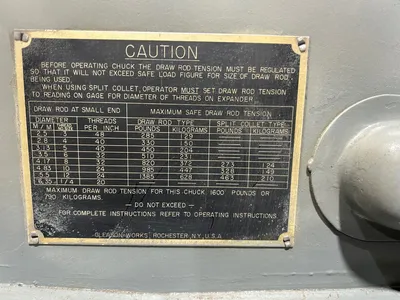

Hydraulic Chucking
Hydraulic System
Lube System
Work Holding
