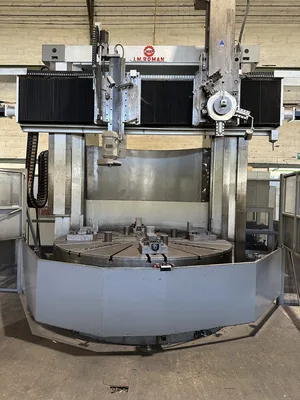

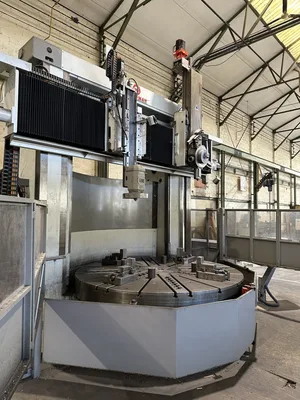

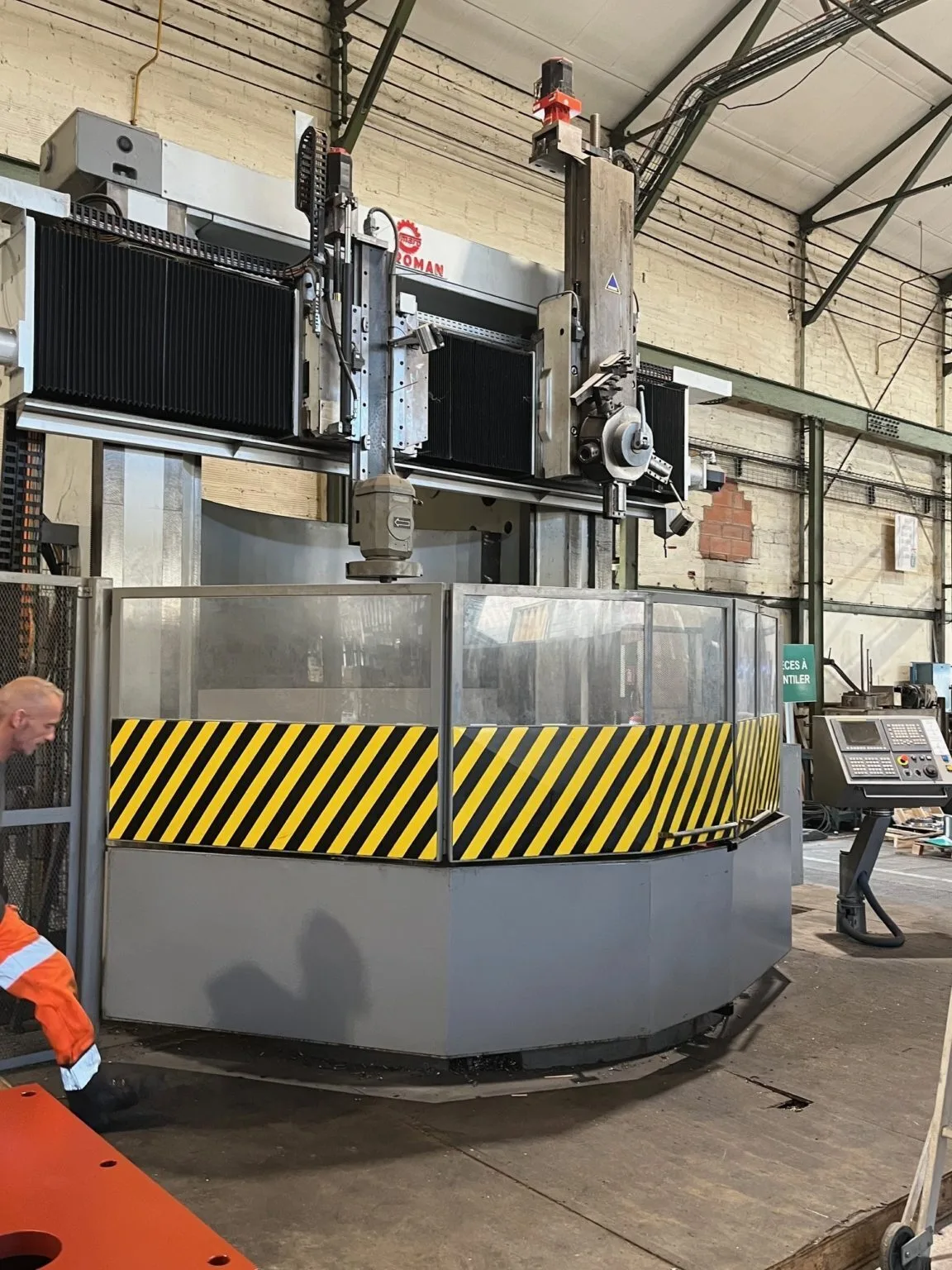

2001 with 2018 Retrofit UMARO Mdl SC27 4 AXIS Vertical Boring Mill, FANUC 0i, Max Turn Dia 102.36
UMARO (founded 1916 in Roman, Romania) is a historic manufacturer of heavy-duty machine tools, specializing in conventional and CNC vertical turning lathes (VBM) up to 12,500 mm in diameter. UMARO Roman has a long history of industrial production, focusing on large-scale engineering, modernization, and precision machining solutions for heavy industry.
Acquisition: In 2020, UMARO was acquired by the REM Group to expand production and modernize manufacturing facilities.
| Table Dia | 98.2" | 2,494.3 mm |
| Swing | 104.33" | 2,650 mm |
| Work Ht-U/R | 74.8" | 1,899.9 mm |
| Power | 100 hp | 74.6 kW |
| RPM | 112 RPM | 112 RPM |
| Control | CNC (FANUC 0i) | CNC (FANUC 0i) |
| Dimensions | 196.85"W x 188.98"L x 188.98"H | 196.85"W x 188.98"L x 188.98"H |
| Weight | 41 Tons | 41 Tons |
Specifications :
Turning capacity :
Max swing diameter : 2650 mm 104.33"
Max turn diameter : 2600 mm 102.36"
Max Turn height. 1900 mm 74.8"
Chuck Dia : 2500 mm
Diameter 2500 mm 98.43"
Max Load. 15 Tons
Chuck Speed (2 ranges) 1 - 112 RPM
Main motor power 75 / 60 kW 100.6 HP
Rams on cross-rail :
Vertical stroke RH saddle 760 mm 29.92"
Vertical stroke LH saddle 1200 mm 47.24"
Cross-rail :
Vertical stroke 1600 mm 63.0"
Foot-print + height 5 x 4.8 x 4.8 m 196.85"W x 188.98"L x 188.98"H

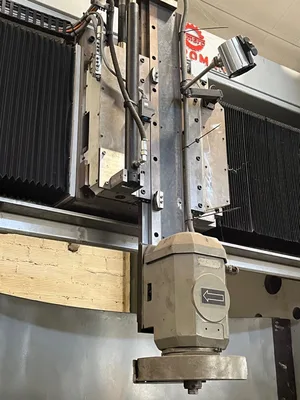

CNC Grinding head to RH saddle
Set of 4 chuck jaws
