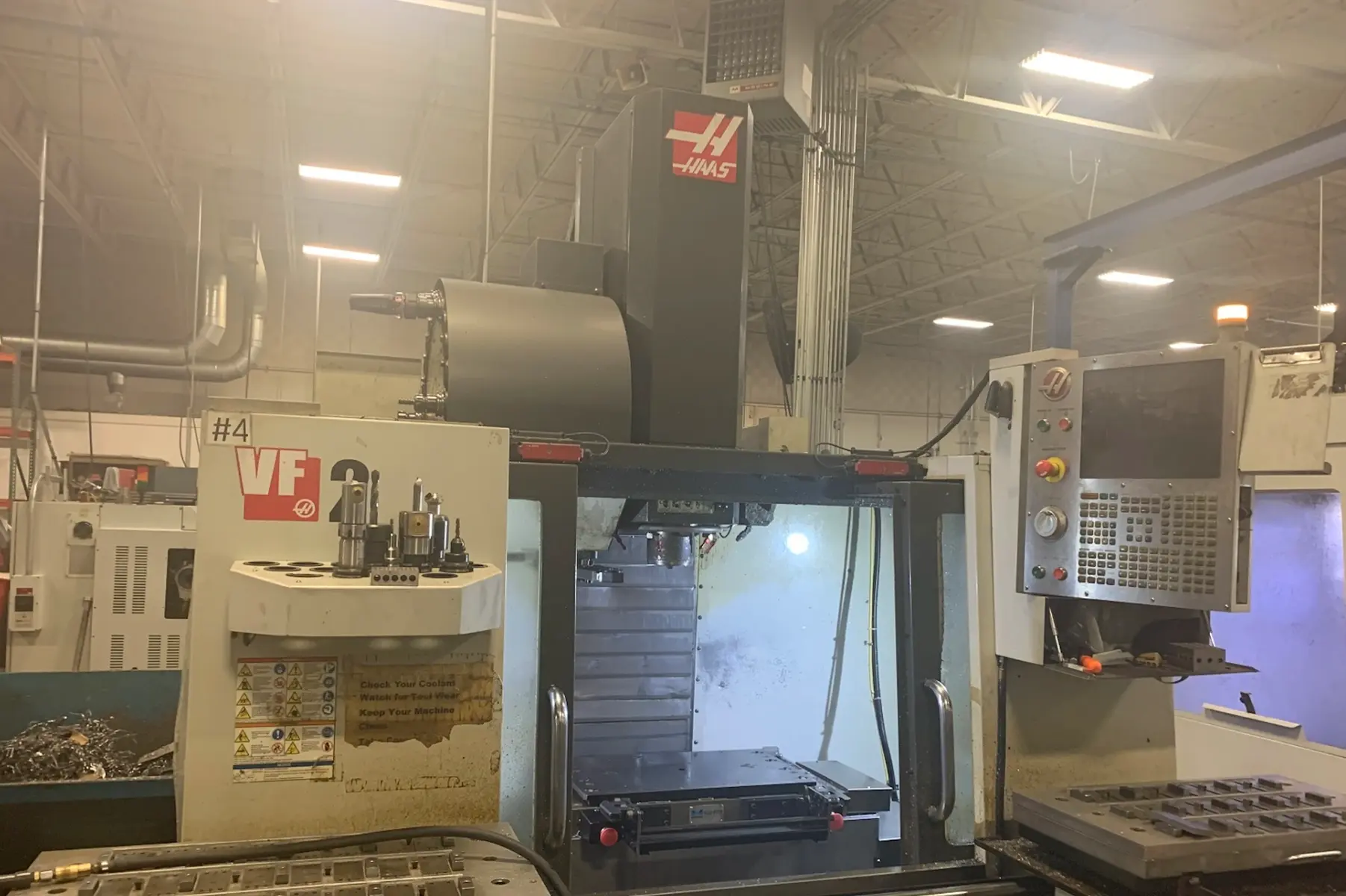

Vertical Machining Center, used, offers 30" x 16" x 20" travel with a 20 hp motor at 8,100 RPM. Features CAT 40 taper, 24 ATC, programmable coolant, TSC, chip auger.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 101" X 99" X 101" | 101" X 99" X 101" |
| Weight | 8,000 | 8,000 |
MAX TABLE LOAD: 3,000 LBS
MAX TORQUE: 90 FT-LBF
MAX TOOL DIAMETER: 3.5"
MAX TOOL WEIGHT: 12 LB
TOOL-TO-TOOL (AVG): 4.2 S
CHIP-TO-CHIP (AVG): 4.5 S
PROGRAMMABLE COOLANT
THROUGH SPINDLE COOLANT
24+ SIDE MOUNT TOOL CHANGER
INTERNAL HIGH VOLT TRANSFORMER
CHIP AUGER
