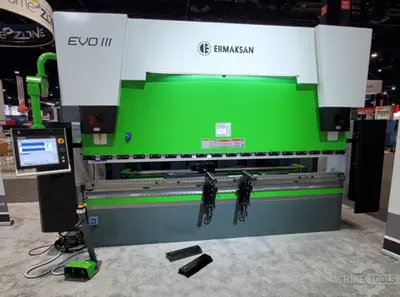

USED ERMAKSAN EVO III HYBRID

Brand – ERMAKSAN

Tonnage: 242 T
Type: ELE
Overall Length: 12′
Between Housings: 128″
Stroke: 10.8″
# Axis: 7
Dimensions: 87″ (W) x 107″(H) x 221″(L)
Weight: 28,452
Control: CNC (Delem 69T)
Tonnage: 242 US Tons Machine Axis: 7-Axis (Y1, Y2, X, R, Z1, Z2, X-Prime)

Ermak EvoIII 3760-220 (242 Ton x 12’) Press Brake 7-Axis Configuration: Y1, Y2, X, R, Z1, Z2, X-Prime Delem 69Touch 3D CNC Control (17”) Delem Profile T-3D CAD (IGES, STEP) Offline Bending Software CNC Motorized Wedge-Type Crowning LazerSafe PCSS Ram-Mounted Safeguarding (2mm Mute Point, 40 IPM Bending Speed) Precision Tooling Package: American / European Clamps (18) Rolleri 0813 85° Precision Ground & Hardened Punch Rolleri M460 Precision 4-Way Die (16, 22, 35, 50mm openings) American Die Riser Block (60mm) 31.5” Servo-Driven Back Gauge (X-Axis) 9.8” Servo-Driven Back Gauge (R-Axis) (2) Front Sliding Support Arms on THK Ways Front & Rear LED Work Lights Rear Door with Safety Interlock Switch (Back Gauge Access) Side Interlocking Safety Doors with Switch Double Foot Pedal Siemens Electrical System 460V, 3-Phase, 60Hz English Labels & Manuals
