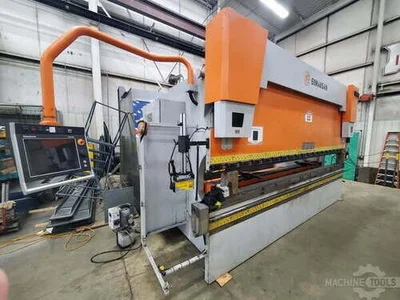

USED ERMAKSAN SPEED-BEND 4270-175

Brand – ERMAKSAN Model – SPEED-BEND 4270-175 Type – Press Brakes Year – 2018 Condition – Used – Good

Tonnage: 193 T
Type: HYD
Overall Length: 14′
Between Housings: 12′
Stroke: 10.8″
# Axis: 6
Dimensions: 212″ X 102″ X 118″ Tall
Weight: 27,550
Control: CNC (Delem 69Touch)
Tonnage: 193 US Tons Machine Axis: 6-Axis Bending Length (A): 168″ Distance Between Housings (B): 148″ Stroke (C): 10.8″ Daylight / Open Height (D): 21.7″ Throat Depth (E): 16.1″ Table Height (F): 35.4″ Table Width (G): 3.54″ Approach Speed: 425 in/min Bending Speed: 28 in/min Return Speed: 436 in/min Back Gauge X-Axis Travel: 31.5″ Main Motor: 25 HP Oil Capacity: 79.6 US Gallons Machine Length (L): 212″ Machine Width (W): 102″ Machine Height (H): 118″ Weight: 27,550 lbs

Delem 69TOUCH 3D CAD CNC Controller LazerSafe PCSS, Ram-Mounted Laser Safety WILA PREMIUM Upper Hydraulic Punch Clamping CNC Motorized Crowning System
