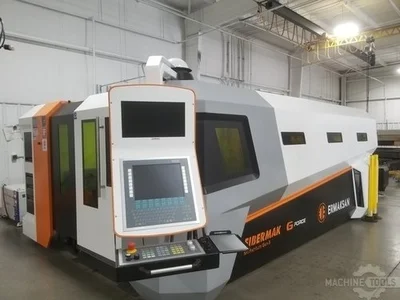

USED ERMAKSAN FIBERMAK GEN-3 G-FORCE

Brand – ERMAKSAN Model – FIBERMAK GEN-3 G-FORCE Type – Laser Cutters Year – 2020 Condition – Used – Excellent

Sheet-W: 5′
Sheet-L: 10′
Wattage: 6 kw
IPM: 5551 ipm
X: 120″
Y: 61″
Z: 6″
Dimensions: 201″ (W) x 91″(H) x 408″(L)
Weight: 24,690
Control: CNC (BECKHOFF)

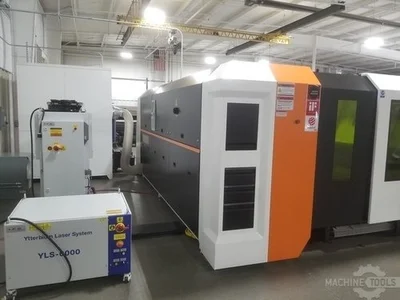

Resonator: YLS 6000 Power Range: 10–105% Beam Quality @ Collimator: 2–4 mm·mrad Power Stability: ±1–2% Pulse Frequency Range: 5 kHz Laser Wavelength: 1075 ± 5 nm Output Fiber Core Diameter: 100 µm Excitation: Laser diode Cooling Water Flow Rate: 10.6 gal/min

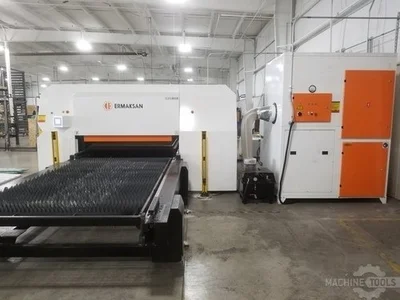

5′ x 10′ Dual-Pallet Cutting Tables (35-second changeover) 6.0 kW IPG-YLS Resonator with Chiller (with additional module redundancy) 2.5G (5,551 IPM) Beckhoff Servo Motors & Drives Precitec ProCutter Auto-Focus “Smart” Cutting Head Beckhoff CNC TS Control on Pendant Arm (full remote connectivity) Lantek INSIDE Camera CNC with drag-and-drop programming to sheet/remnant Lantek ExpertCUT CAD/CAM Software Nozzle-Centering Camera System Nozzle Cleaning & Calibration Station Small Part / Scrap Conveyor Operator Remote Tethered Controller Air-Conditioned Electrical Cabinet Automatic Lubrication System Internal Desiccant Dryer (for air/moisture control) Dust Collector with waste gas and fume filtration unit SICK Light Curtains for loading table safeguarding
