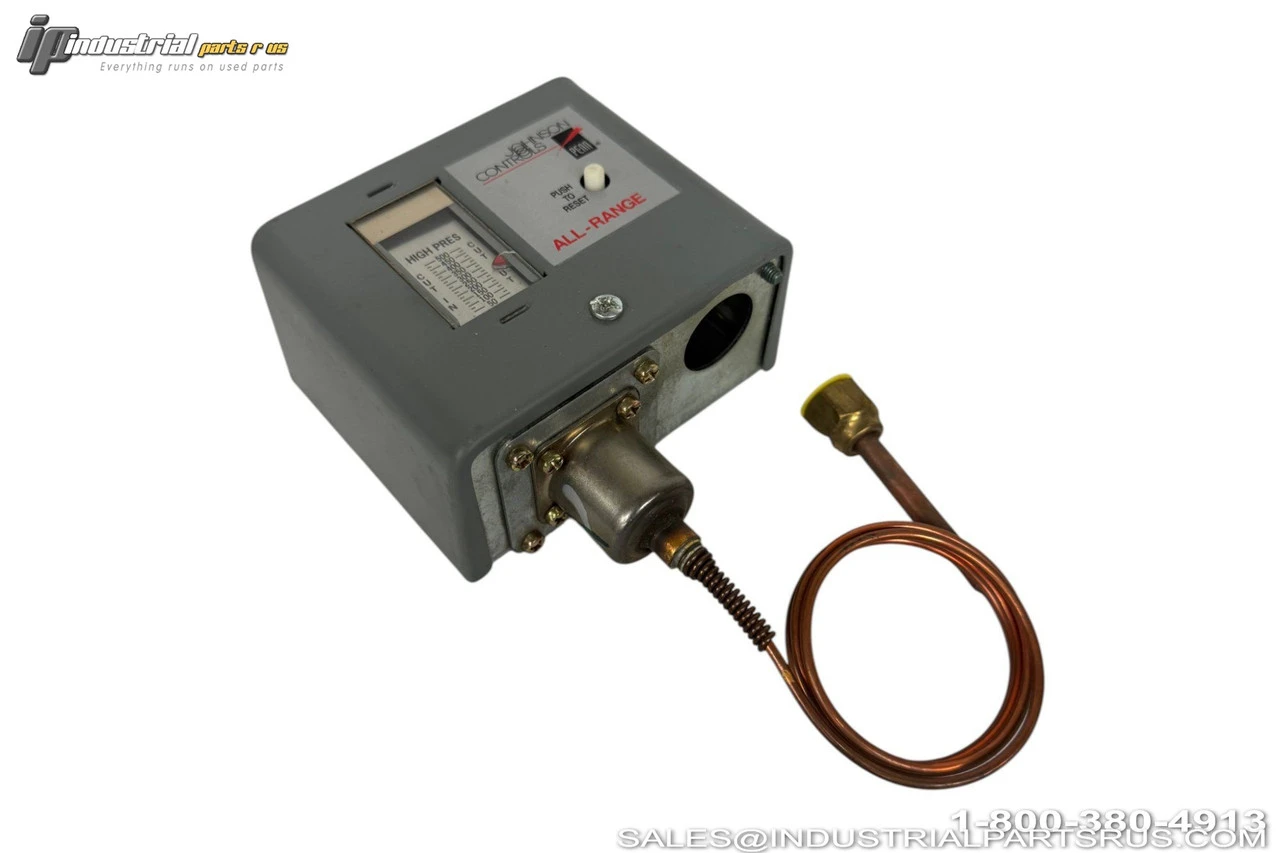

The Johnson Controls P70DA-1 is a single pole high pressure control switch designed for commercial air conditioning and refrigeration applications. This electromechanical pressure switch features a manual reset lockout function that provides trip-free protection and cannot be overridden until pressure returns to specified levels. The unit operates with a bellows-actuated switching mechanism and is compatible with common refrigerants including R-12, R-22, R-134A, R-500, and R-502.
Specification
Value
Brand
Johnson Controls
Model/Part Number
P70DA-1
Product Type
Pressure Sensor
Series
P70
Pressure Range
50 to 450 PSI
Maximum Working Pressure
525 PSIG
Switch Configuration
SPST (Single Pole Single Throw)
Switch Action
Close High, Open Low
Reset Type
Manual Reset Lockout
Capillary Length
36 inches
Connection Type
1/4 inch Flare Nut
Element Type
Bellows
Compatible Refrigerants
R-12, R-22, R-134A, R-500, R-502
Application
High Pressure Cut-Out Control, Head Pressure Control
NEMA Rating
NEMA 1
Enclosure Material
Galvanized Steel Case, Plated and Painted Steel Cover
We warranty all items for 30 days from date of purchase.
| Weight | 2.00 LBS | 2.00 LBS |
SKU: AI1008
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: Relay
Sensor Type: Pressure Switch
Manufacturer: Johnson Controls
Enclosure Type: NEMA 1
Part Number: P70DA-1
Shelf: K-3
Model: P70DA-1
MPN: P70DA-1
Type: Pressure Sensor
