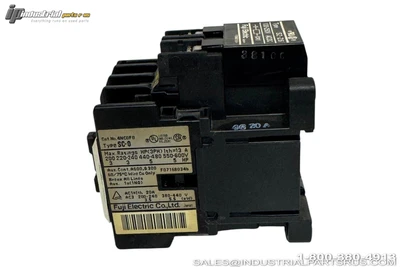

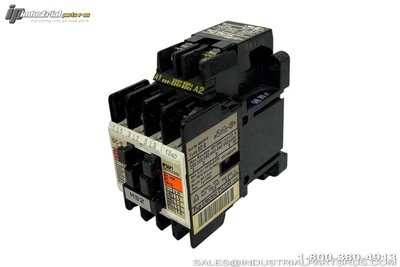

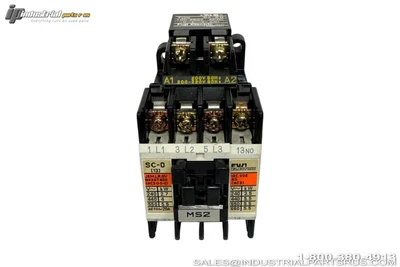

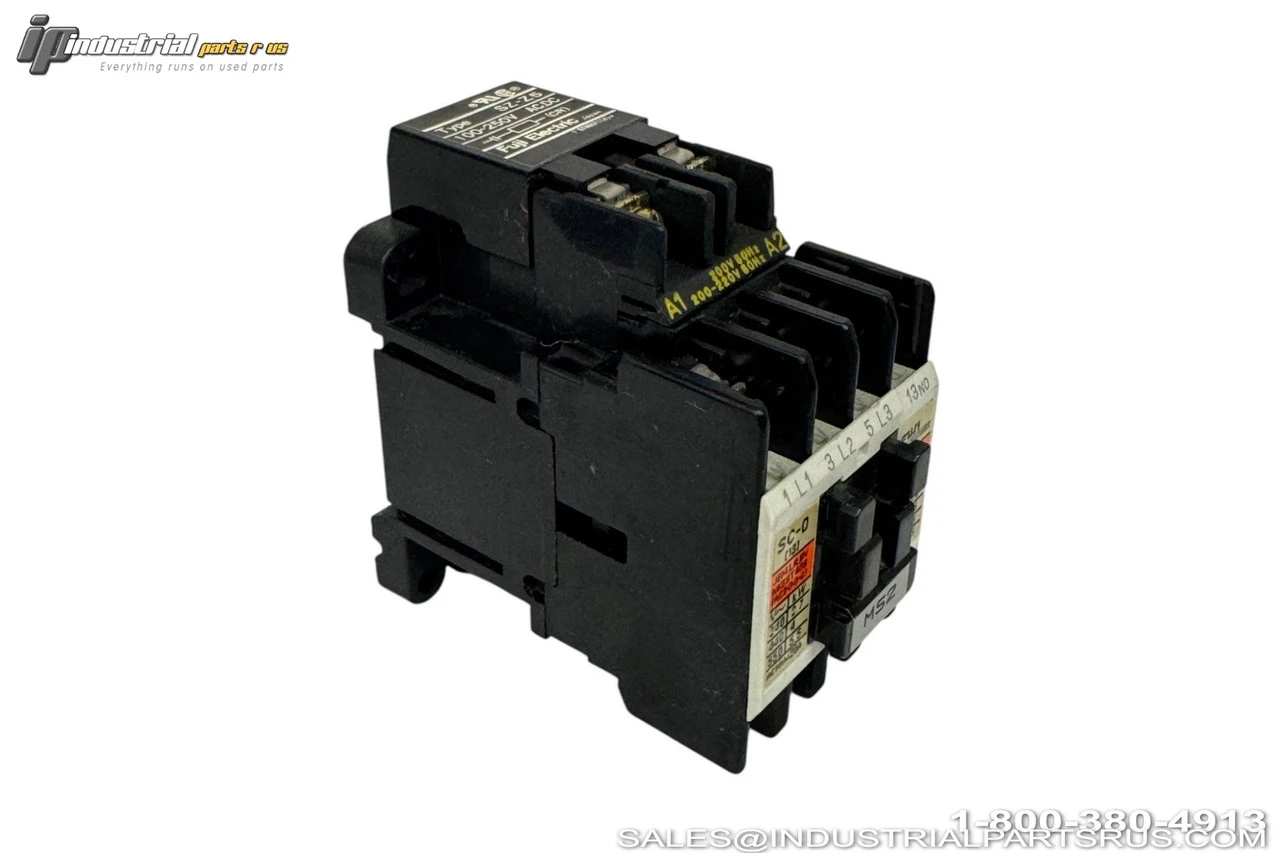

USED FUJI SC-0

The Fuji Electric SC-0 is a magnetic contactor designed for motor control and power switching applications. This Type SC-0 contactor features a 13A continuous current rating with versatile voltage capabilities for various industrial motor control applications.
Specification
Value
Brand
Fuji
Model/Part Number
SC-0
Product Type
Magnetic Contactor
Current Rating
13A
Phase
3 Phase
Voltage Range
200-600V AC
AC1 Rating
20A
AC3 Rating (200-240V)
3.5kW
AC3 Rating (380-440V)
5.5kW
Motor HP (200V)
3HP
Motor HP (220-240V)
3HP
Motor HP (440-480V)
5HP
Motor HP (550-600V)
5HP
Frame Size
Small Frame
Auxiliary Contacts
Available (Snap-on)
Optional Accessories
Auxiliary contact blocks, coil surge suppressors
We warranty all items for 30 days from date of purchase.

SKU: AI0863
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: Standard Panel Mount
Current Rating: 13A
Material: Thermoplastic Housing
Full Load Amps: 13A
Manufacturer: Fuji
Part Number: SC-0
Series: SC
Shelf: C-19
Model: SC-0
Coil Voltage: 220V AC
Horsepower: 5 HP
MPN: SC-0
Type: Contactor
