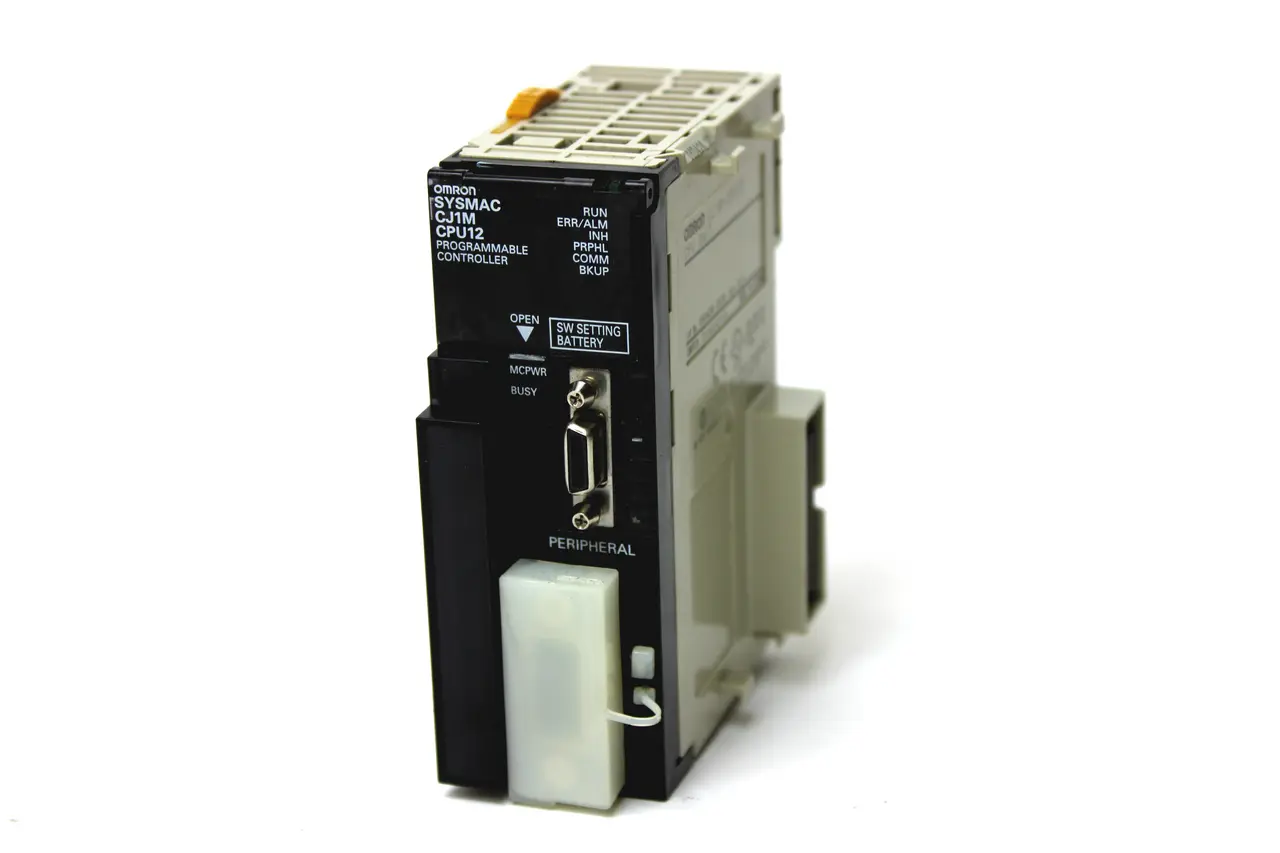

The Omron CJ1M-CPU12 is a compact PLC processor from the CJ1M series designed for flexible control applications. This CPU unit features 10K steps of user program memory capacity and supports up to 320 I/O points with modular expansion capabilities.
Specification
Value
Brand
Omron
Model/Part Number
CJ1M-CPU12
Product Type
PLC Processor
Series
CJ1M
Maximum I/O Points
320
Program Memory Capacity
10K steps
Data Memory Capacity
32K words
LD Execution Time
0.1 μs
Basic Instruction Execution Time
0.10 μs min
Special Instruction Execution Time
0.15 μs min
Overhead Time
0.5 ms min
Maximum Units
10 Units max
Expansion Racks
No Expansion Racks
Current Consumption
0.58 A at 5V DC
Flash Memory
704 KB (unit version 4 or later)
Communication Port
RS-232C
Width
31 mm
Weight
120 g
Programming Languages
Ladder, SFC, ST, Mnemonic
Interrupt Inputs
2
Maximum Subroutines
1024
Maximum Jump Numbers
1024
Function Block Definitions
128 max
Function Block Instances
256 max
Mounting Method
Direct connection (no backplane)
We warranty all items for 30 days from date of purchase.
| Weight | 1.00 LBS | 1.00 LBS |
SKU: IP11054
UPC: 646412852617
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 646412852617
Shelf: E-3 Tub 2
MPN: CJ1M-CPU12
Country/Region of Manufacture: Japan
Manufacturer: Omron
Part Number: CJ1M-CPU12
Model: CJ1M-CPU12
Type: CPU (Central Processing Unit)
Controller Platform: Omron CJ1M
