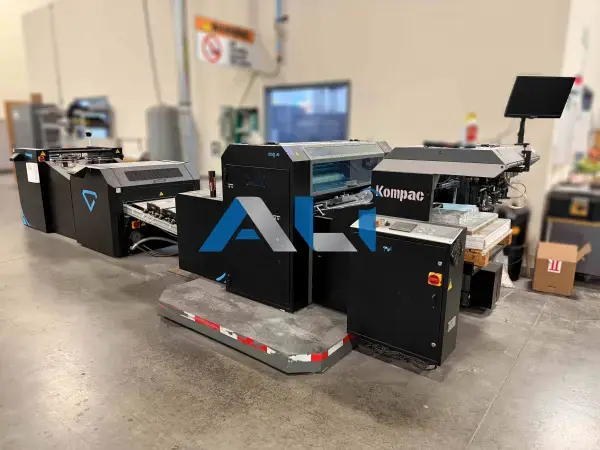

2020 Kompac Onyx 30 Spot and Flood UV Coater
Overview
Description
2020 Kompac Onyx 30 Spot and Flood UV Coater
This machine is industry tough and versatile with spot and flood coating. Another great offering from Asset Liquidity's offset printing and bindery equipment.
ONYX 30
Specifications
SHEET SIZE: 22” x 31.5” (560mm x 800mm)
COATING AREA: 21.65” X 31.5” (550mm x 800mm)
MINIMUM SHEET SIZE: 10” x 12” (254mm x 305mm)
SPEED: up to 6000 sheets per hour
STOCK WEIGHT: 3pt to 30pt (60 to 600g/m²)
FOOTPRINT: 6’ wide x 24’ long (1.8m x 7.4m)
Onyx 30
Flood and Spot Coat
Easily apply UV, Aqueous, Specialty Coatings and Primers
Perfect solution for medium/large Digital Printers, Commercial Packaging, and Label Printers
Automatic Stream Feeder accepts pallets/dollies right from your digital or offset press
(No “hand” loading means it is the perfect solution for variable data or sequential jobs)
Handles substrates up to 22” x 32” (560mm x 800mm) [22” x 30” (560 x 762mm) in Anilox Mode]
Coat/Prime at up to 6000 sheets per hour
System includes the Kompac High Pile Pallet/Dolly Stacker, handles 34”(86cm) lift
Patented Short-wave, high-intensity intensity bulbs with Air Curtain
