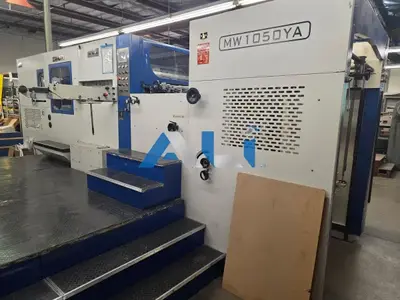

2006 Yawa MW1050 YA Die Cutter

2006 Yawa MW1050 YA Die Cutter
This die cutter is a versatile size for many applications. Yet another great offering from Asset Liquidity's offset printing and bindery equipment.

YAWA 1050 MW 2006 Nr.1390021
AUTOMATIC DIE CUTTER WITH STRIPPING
Max Sheet Size 750mm x 1050mm
Min Sheet Size 370mm x 450mm
Max Pressure 250 x 10(4) N (250 ton)
Cardboard 157-2000g/m(2)
Paper 100g/m(2)
Max Speed 5,000 sheets per hour

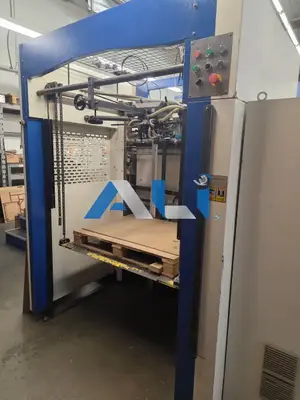

Non Stop feeder
1 Mechanical Chase lock,
1 x Universal cutting chases,
2 x 50MM Cutting Plate
50 1 MM cutting plates.
Stripping Unit -Double action movement,
Counting device, with tab inserter
Stripping Unit -Double action movement,
20KW 400v 50hz,
weight 20000kg
