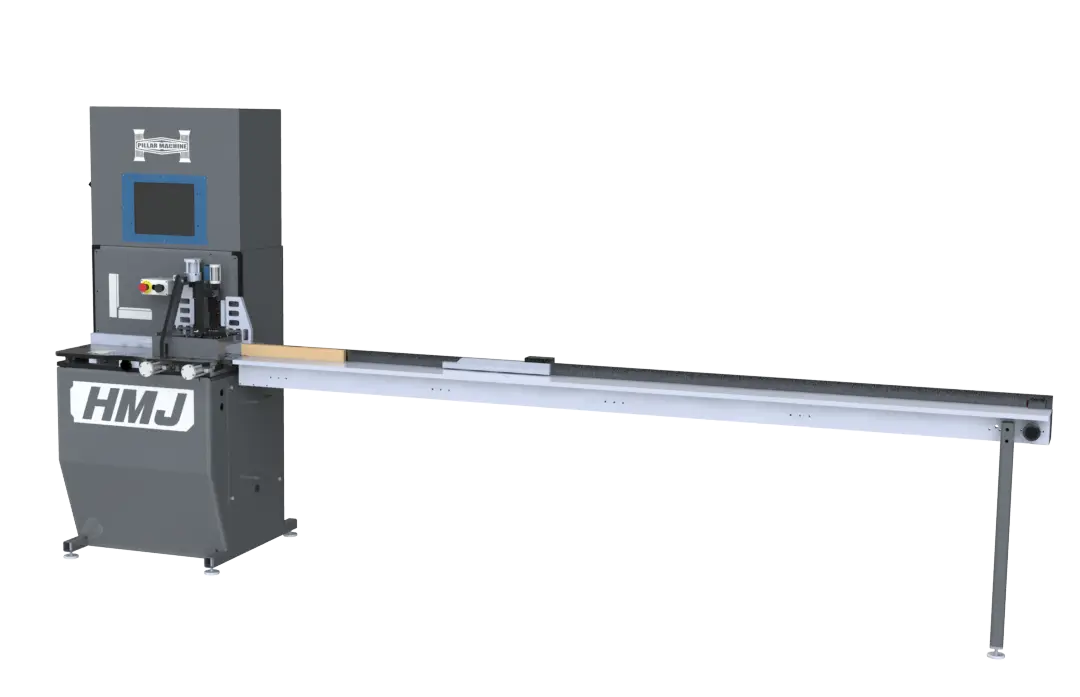

Pillar HMJ: CNC Haunch Machine for Beaded Face Framing
Overview
Description
The HMJ is a CNC haunch machine for cutting haunch joints in beaded face frame stiles and rails, producing self-aligning joints that simplify assembly. It stacks two parts for simultaneous cutting, effectively doubling output without additional operators. IWF Challengers Award semi-finalist.
Specifications
CNC Haunch Precision: Servo-driven X-axis with belt control miters profiles for tear-out-free haunch joints on beaded face frames.

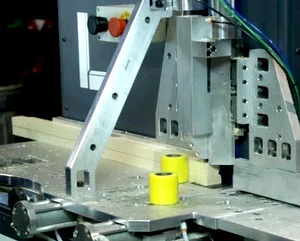

Doubled Output: Stacks two stiles or rails for simultaneous cutting, boosting production without extra labor.
Self-Aligning Joints: Produces joints that simplify assembly, reducing time and effort in cabinet and furniture construction.
Compact Footprint: Measures 177″ W x 37″ D x 82″ H, ideal for shops with limited space yet needing high output.
Intuitive Interface: A 15″ industrial touchscreen with open-architecture software enables quick program setup and unlimited storage.
Rugged Durability: 1,400 lb. frame with high-precision square rail guides ensures reliable performance in demanding environments.
Visual guides for haunch joint placement.
Parametric programming for custom setups.
Unlimited program storage and online diagnostics (with internet).
