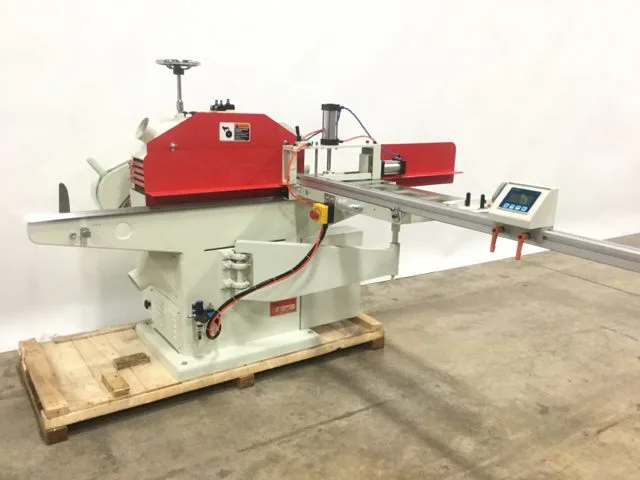

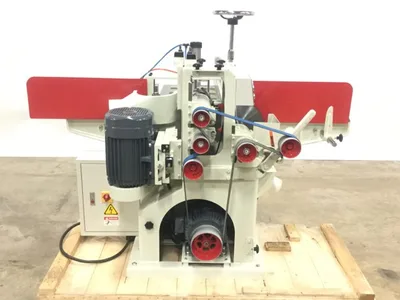

Northtech NT 152B-M10X Single End Tenoner

The Northtech NT 152B-M10X Single End Tenoner Features:
Top and bottom heads that can be adjusted individually or simultaneously to accept material from 8″(L) x 1″(W) x 3/16″(H) to ∞”(L) x 14-1/2”(W) x 4-1/2″(H)
A coping head for producing various end patterns
Cuttoff saw (up to 12″ blade diameter) for cutting stock to length
Digital positioner
Two (2) flip-stops
Sliding table with precision-machined “V” ways to maintain sliding accuracy

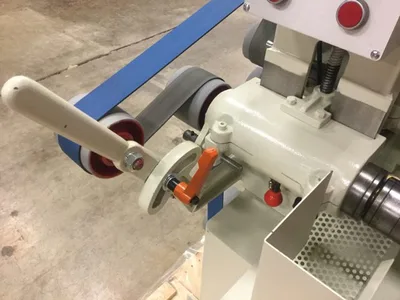

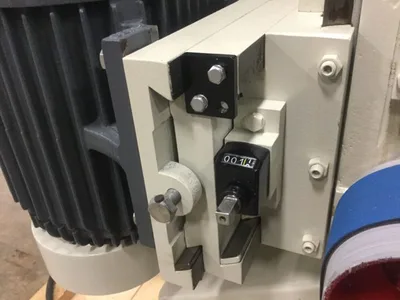

Both top and bottom tenon heads can be individually or simultaneously vertically adjusted.
Individual cross adjustment in 1″ distance.

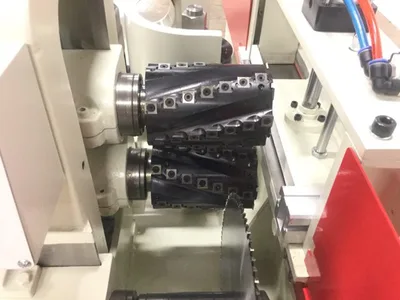

Helical and straight tenon cutter heads on the 152 series provide excellent quality results on a range of materials.
For fitting with pattern cutter producing various end patterns.

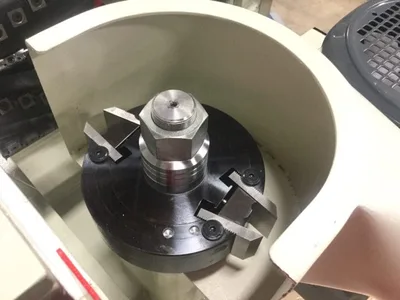

The cope spindle may be vertically or crosswise adjusted.
Vertical movement distance is 3.625”
Forward and backward movement distance is 3.4”.

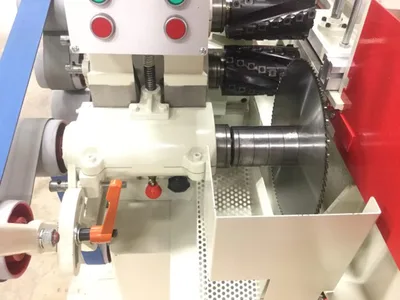

The saw mechanism is mounted in front of tenon heads for cutting stock to the desired length.
The saw blade may be vertically adjusted.
The saw head accepts a 12″ maximum blade diameter.
Table slides on precision machined “V” ways, precise sliding accuracy is assured.
The bearing support permits for effortless hand moving of the table.

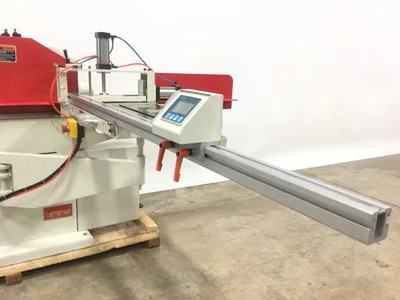

Use the extendable aluminum ruler to measure the required length of the workpiece.
Equipped with two work stops for convenient repetitive cutting.

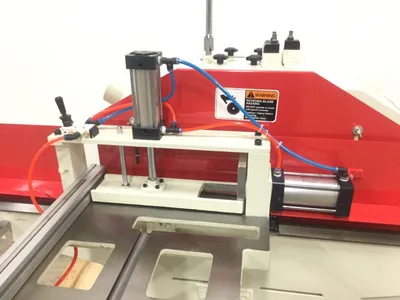

An added saw blade guard offers added safety for the operator.

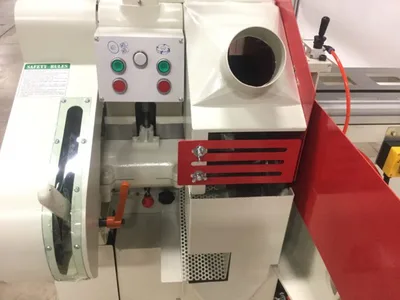

A filter screen is provided in front of the dust hood to prevent chips from entering the dust collector.

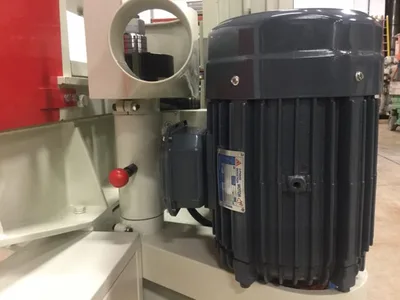

Machine Hp. = 12.5 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 36.6 Amp
Spindle Diam. = (3) 1-1/4”
1st Head = 12” 2900 Rpm 100T Cutoff Saw
2nd Head = 4” x 6” 3400 RPM Tenon Head
3rd Head = 4” x 6” 3400 RPM Tenon Head
4th Head = 6” 6000 RPM Cope Head
Feed System = Sliding Table
Drive System = Manual
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Pass-Line = 32”
Cut Envelope = 4-1/8” x 14-1/2”
Min. Length = 8”
Max. Length = Infinite
Min. Width = 1″
Max. Width = 14-1/2”
Min. Thickness = 3/16″
Max. Thickness = 4-1/2”
Rows of Cutters = 6 Rows
No. of Inserts = 39 Inserts
Insert Size = 15 x 15 x 2.5 mm
Dust Collection = (3) 4” @ 1308 CFM
Dust Port Out = (3) 4” Outlets

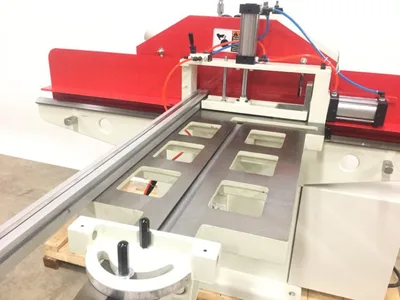

Hold Down Style = Pneumatic Clamp
FLR Included = Filter, Lubricator, Regulater
Recommended CFM = 1350 Total CFM

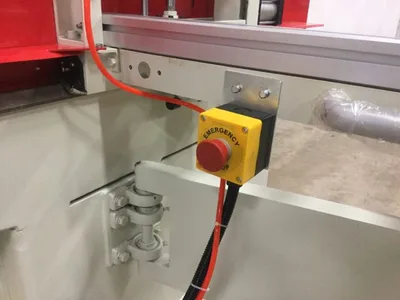

Emergency Stop = Push Button
Guarding = High Visibility Guarding
Operation Style = Manual
Fence Type = Adjustable Fence
Fence Dims. = 2” x 72”
Sliding Table = 43-3/4” Travel
Frame Const. = 1/2” Steel Construction
Worktable Dims. = 39” x 15-1/2” x 32”
Table Const. = Machined Steel
Measure Meth. = Digital Position Readout
Decible Rating = 82 dB
Net Weight = 1322 Lbs.
Gross Weight = 1587 Lbs.
Machine Dims. = 94” x 72” x 58”
Packaging Dims = 66” x 30” x 53”
