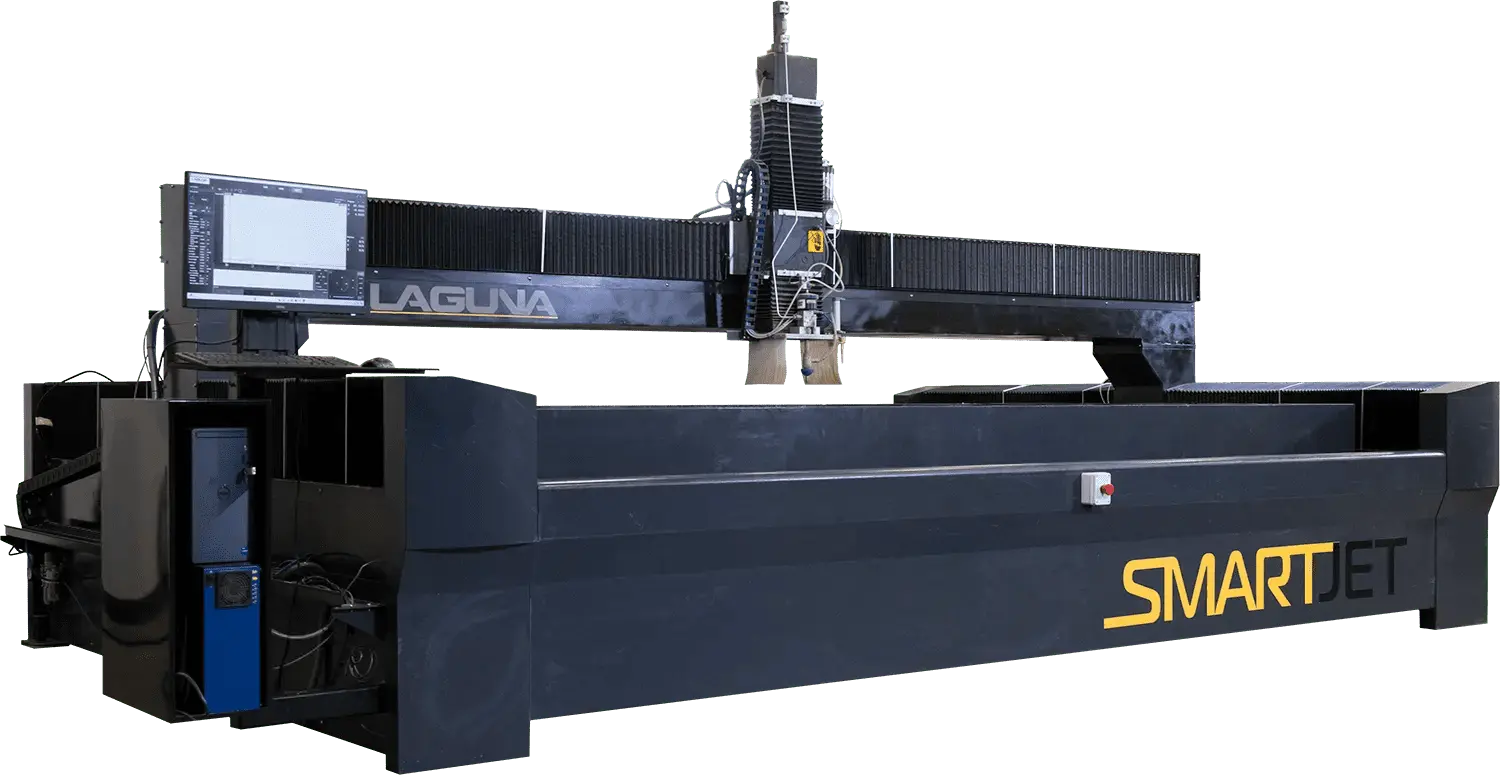

Laguna SmartJet CNC Waterjet Cutter
Overview
Description
The Laguna Tools SmartJet, a groundbreaking solution for many applications. It harnesses a jet stream capable of effortlessly slicing materials from the ultra-thin at .0005” to the substantial at 12” thickness. Astonishingly, the abrasive waterjet pierces or drills holes as small as .030” in diameter, offering unparalleled intricacy. Elevating usability, the Flashcut CAD/CAM/CNC interface empowers both seasoned professionals and newcomers. Elevate productivity and craftsmanship with the SmartJet, where innovation meets precision.
Features:
Flashcut CNC Control & Drives
KMT High Pressure Water Pump & cutting head
Assembled In Texas
Available In 4×4 ,5’x10’ Or 6’x13’ Work Area (Custom sizes available on request
Specifications
Max rapid travel speed – 400/in min
Linear positional accuracy – +/- .003”
Repeatability – +/- .001”
Z travel -12”
Mobile operators Station
Precision Ground Ball Screws On X,Y and, Z Axis
24? Control Screen
Laser Pointer
IDE Diamond Orifice, Abrasive Cutting Head
Closed Loop Industrial Chiller – 42K BTU
500lb garnet hopper
On-Site Installation & Training
