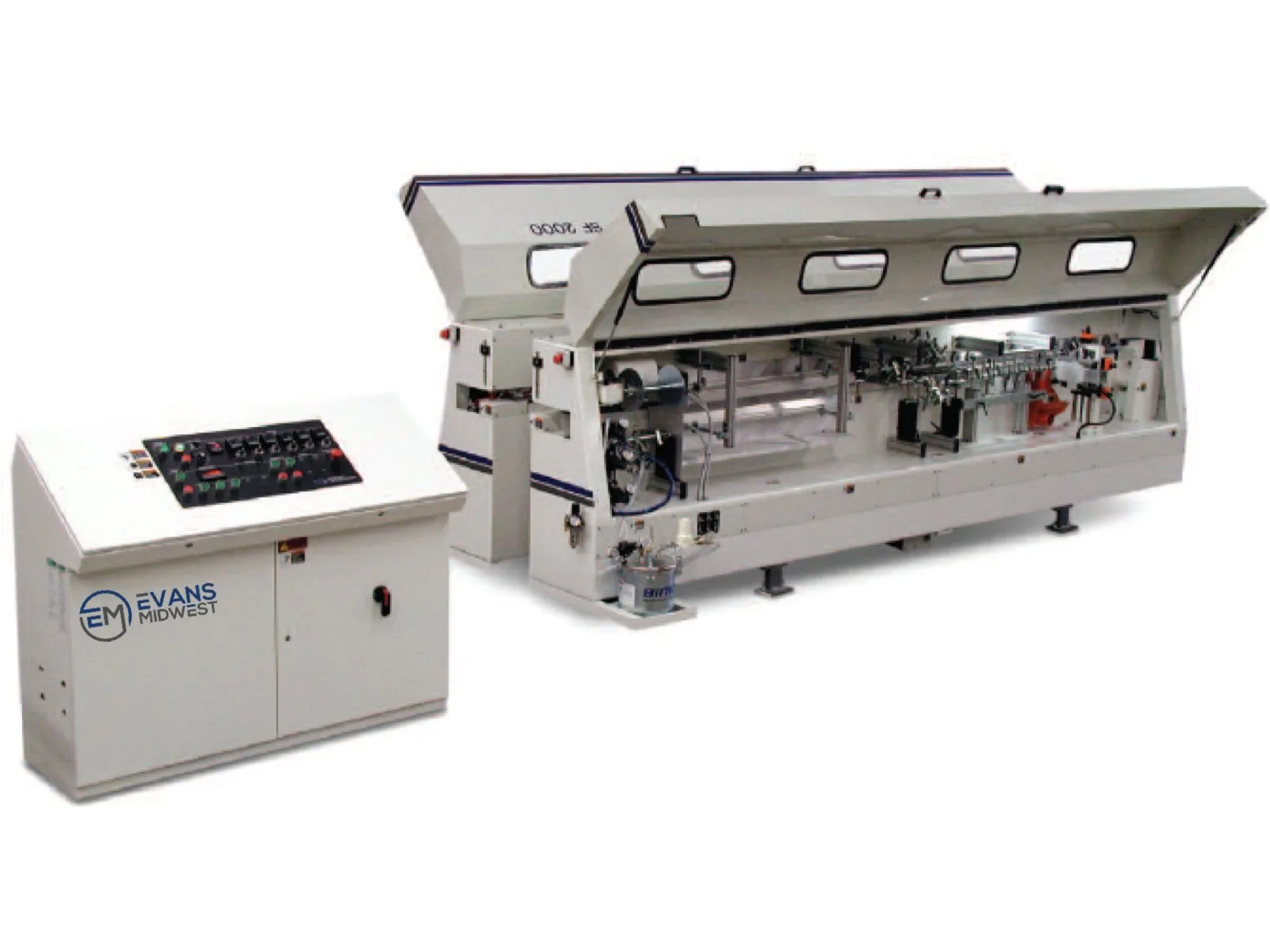

The Evans Midwest SF2000 Standardform Postformer Is a compact feed-through machine designed for small- to medium-sized manufacturers of kitchen countertops, commercial office furniture, and postformed components.
Available in single- and double-sided models in 10- and 15- foot lengths, the SF2000 can be configured to produce components with either contact adhesive, water-based, or PVA glue. Optional high-frequency trimming, finishing, and slitter saw units are available to produce completed components without additional labor.
Heavy-duty lower frame with direct AC drive motors
Heavy-duty transport chain assemblies in 3-3/16 inch
Rubber drive pads vulcanized to steel plates and mechanically fastened to carrier blocks
Electronic variable speed forward/reverse drive with digital line speed
Upper beam(s) with a double row of 2 -3/4 inch diameter serrated rollers
Upper beam adjustment with pointer and scale
Power width adjustment
Infrared heater(s) with electronic temperature controls
90° and 180° quick-change forming roller assemblies with adjustable spring-loaded silicone rollers
90° and 180° compression rollers with adjustable spring-loaded silicone rollers
Forming and compression roller assemblies are mounted on infinitely adjustable linkages to accommodate a large variety of profiles
Gas spring-operated enclosure door(s) with viewing windows and safety interlock
Operator interface (HMI) with color monitor
Special infeed and outfeed conveyor systems
Optional PVA spray system for applying adhesive to the edge of core and laminate
Optional high-frequency trimming and finishing units
Optional floating slitter saw units
Custom tooling packages to customer specifications
