Evans Midwest AC 3125 AutoCove™ Machine
Overview
Evans Midwest AutoCove™ AC 3125 Is the perfect machine for the medium size kitchen countertop manufacturer; it is designed to produce up to one countertop per minute or 5,000 linear feet per shift.
The pneumatic lift & clamp system, electronically-controlled heat bar, cove-stick feeding/clamping system, and unique two-stage forming mechanism ensure a true 90° backsplash every time.
Optional powered infeed conveyor and automatic loading system maximize throughput without additional labor.

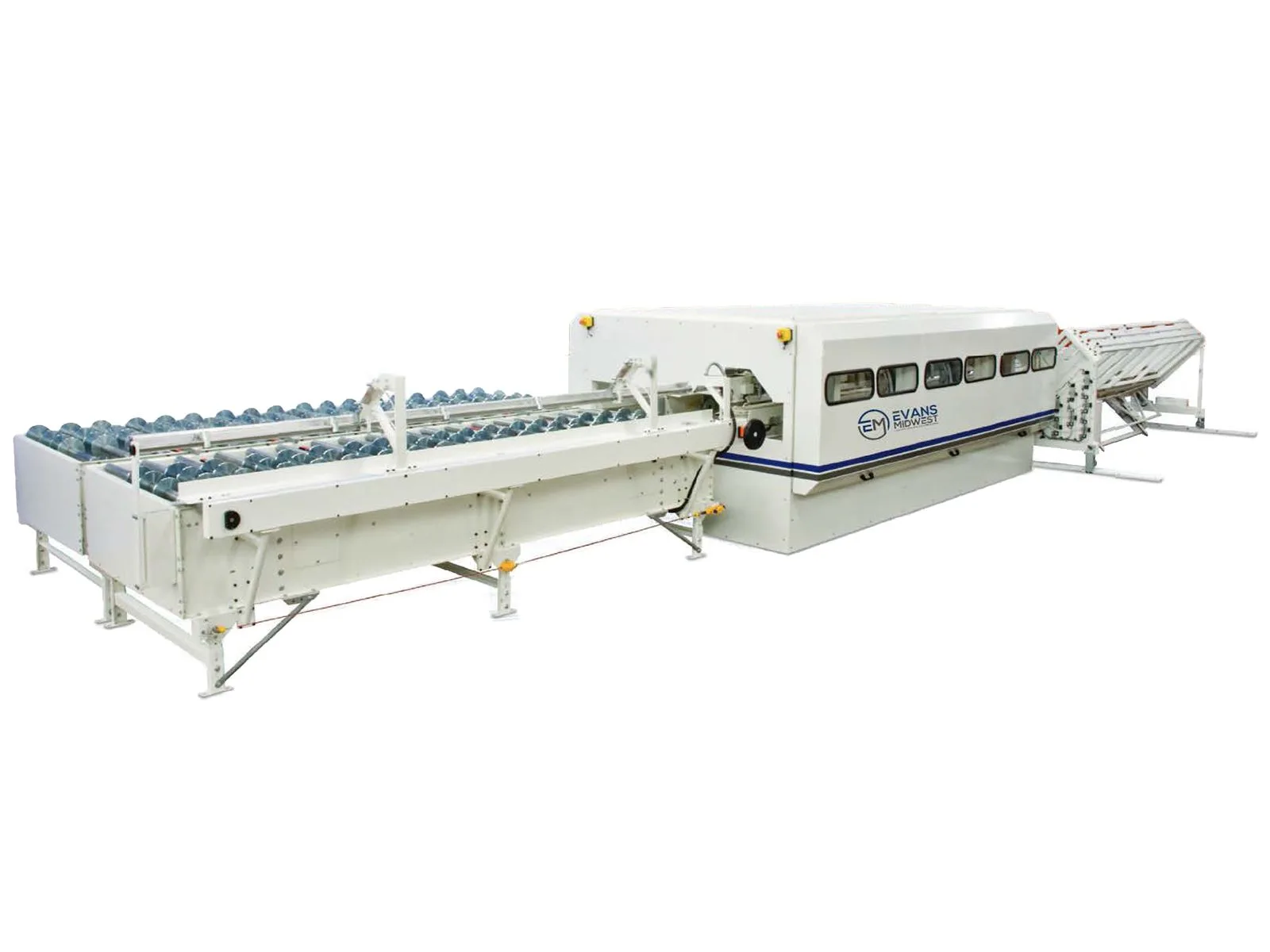

(*Pictured: AC 3125 shown with powered infeed conveyor, laminate preheat, powered outfeed conveyor, and automatic cove stick magazine.)
Specs
Heavy-duty enclosed frame eliminates flexing
Gas-spring operated access doors
Heavy-duty rear fence with large-diameter jack screws and seven (7) contact points
Automatic loading/unloading system with polyurethane v-belt
Pneumatic lift and clamp system with air bladder and hold over cylinders to ensure countertop contact with rear fence and cove bar assembly
Aluminum cove bar assembly with 8, 10, and 12-foot heat zones
Three (3) electronically controlled heat zones to eliminate scorching of laminate
Automatic cove stick system with electronic linear actuated pusher and variable speed control
Stick placement rack with five (5) pneumatic cylinders
Nordson Durablue™ Hot Melt System with air-actuated glue gun and manifold
Unique form bar assembly is electronically driven with chains at four (4) connecting points to ensure concentricity
Electronically controlled form bar speed
Electronically controlled width adjustment
Special infeed and outfeed conveyors
Optional infrared pre-heat system with electronic temperature controls
Optional automatic stick feed magazine with three (3) racks for 8, 10, and 12 -foot long cove sticks
