Evans Midwest UF 2000 Ultraform Postformer
Overview
Evans Midwest UF 2000 Ultraform Postformer Is an extremely rugged, feed-through machine designed for high-volume, multishift operation. The UF 2000 is available in single- and double-sided models up to 30 feet in length. The modular design of the UF 2000 allows the machine to be configured to specific production requirements.
Optional automatic electronic and pneumatic positioning systems using state-of-the-art PLC controls reduce costly set-up and can eliminate operator labor. Optional infeed and outfeed high-frequency trimming, finishing, and splitter saw units are available to produce completed components without additional labor.

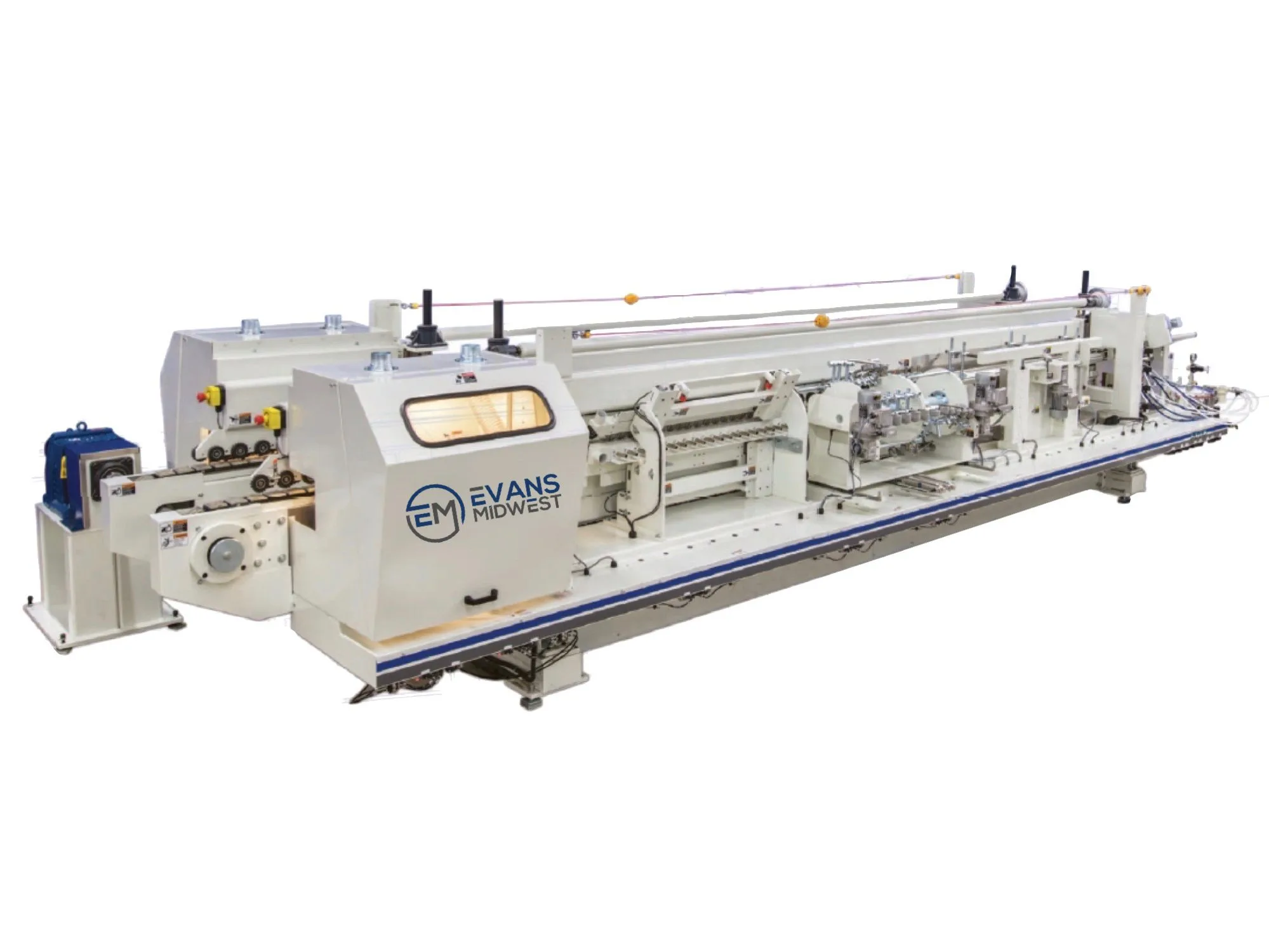

(*Pictured: UF 2000D-25 Double-sided Postformer shown with PVA edge spray, infrared heating, forming / compression rollers, outfeed trimmer, and slitter saw )
Specs
AC Drive motor coupled directly to the driveshaft

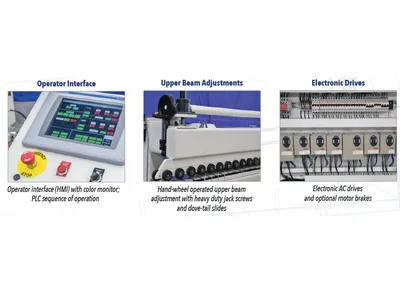

Electronic width adjustment with high-speed ball screw and linear beer bearings
Handwheel operated upper beam with jackscrews and dovetail slides
PLC-controlled sequence of operation
Optional infeed, high-frequency, vertical and horizontal drilling units
Optional hot air gun kits with self-contained lower
Optional 90° and 180° “turret” style forming roller assemblies
Optional automatic, electronic and pneumatic positioning systems to reduce set-up
Electronic motor brakes
