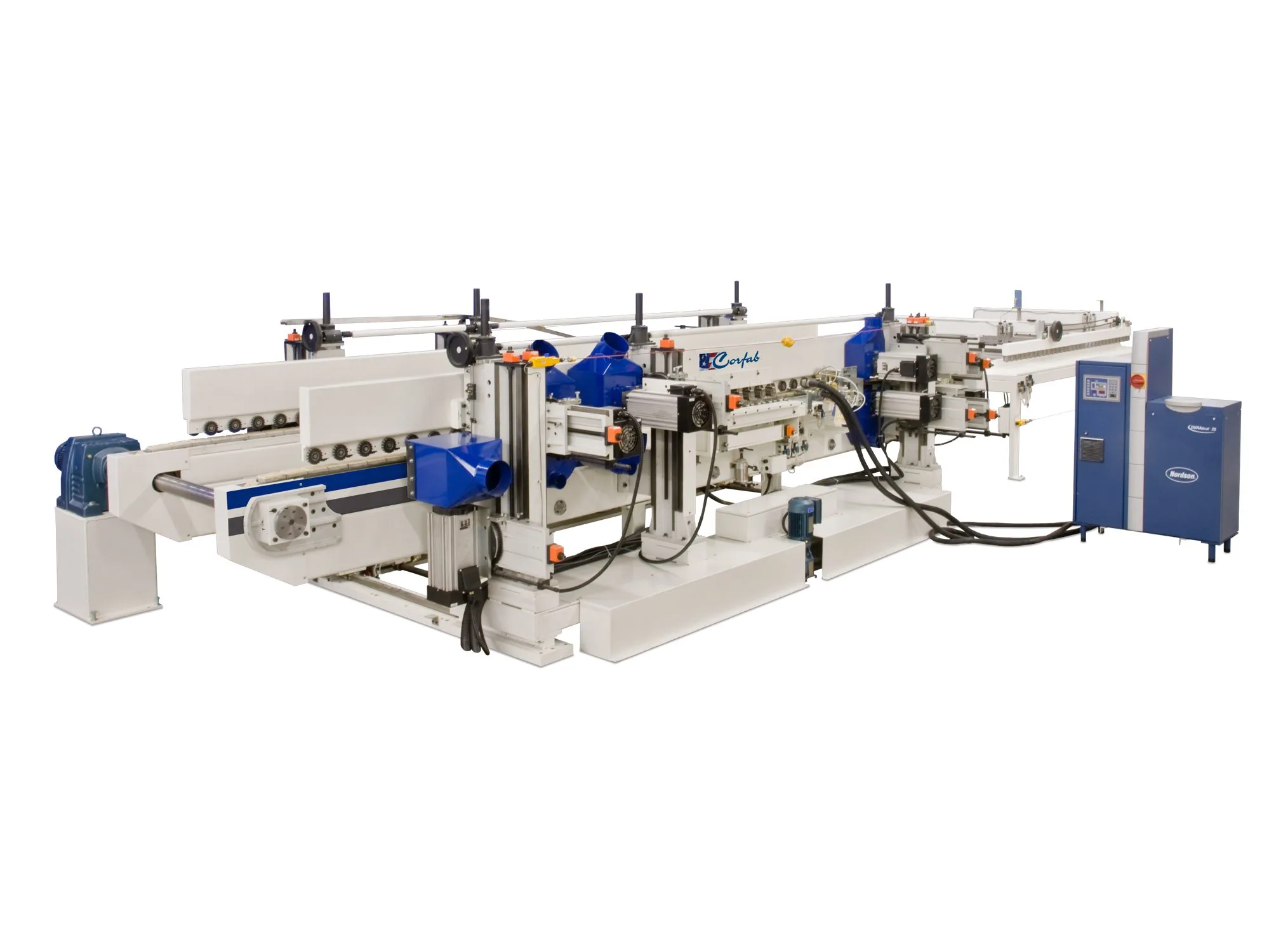

Evans Midwest CF 1545 Corfab™ Countertop Machining Center

The Evans Midwest Corfab™ Model CF 1545 is the next step in simplifying the kitchen countertop manufacturing process. The CF 1545 is a double-sided, kitchen countertop machining center, designed to automatically cut particleboard sticks from the edges of the core, while simultaneously feeding, gluing, and clamping them to the top and/or bottom of the core, in a continuous operation.

Compact double-sided design with center drive
Heavy-duty welded frame with unique 2 to 1 ratio fixed side design
Transport chain assembly with 3-3/16 inches wide carrier blocks
Rubber drive pads vulcanized to steel plate and mechanically fastened to carrier blocks
AC drive motor coupled directly to drive sprocket
Electronic variable speed control with digital display
Upper beam with double rows or 2-3/4 inch diameter hold-down wheels
Power width adjustment with high-speed ball screws and linear bearings
Hand-wheel operated upper beam adjustment with dial indicator
Two (2) double cast-iron columns per side with machined dovetail slides
Sizing, milling, and shaping units include horizontal and vertical adjustment on dovetail slides
Sizing/milling/shaping units are tiltable from O to 180 degrees
Spindle motor sizes up to 10 hp (7.7kw) and shaft lengths up to 8-5/8 inches
Operator Interface (HMI) PLC controls
lnfeed sizing saw units with custom-engineered cutter head assemblies
Optional infeed end milling units to machine relief cuts and/or dados
Automatic build-down and scribe stick system
Optional no-drip stick and cove stick systems
Nordson Durablue'” hot melt system
Special infeed and outfeed conveyor systems
Optional automatic panel feeders
Optional pick and place loading systems
Optional electronic motor brake kits
Optional carbide and diamond tooling packages
