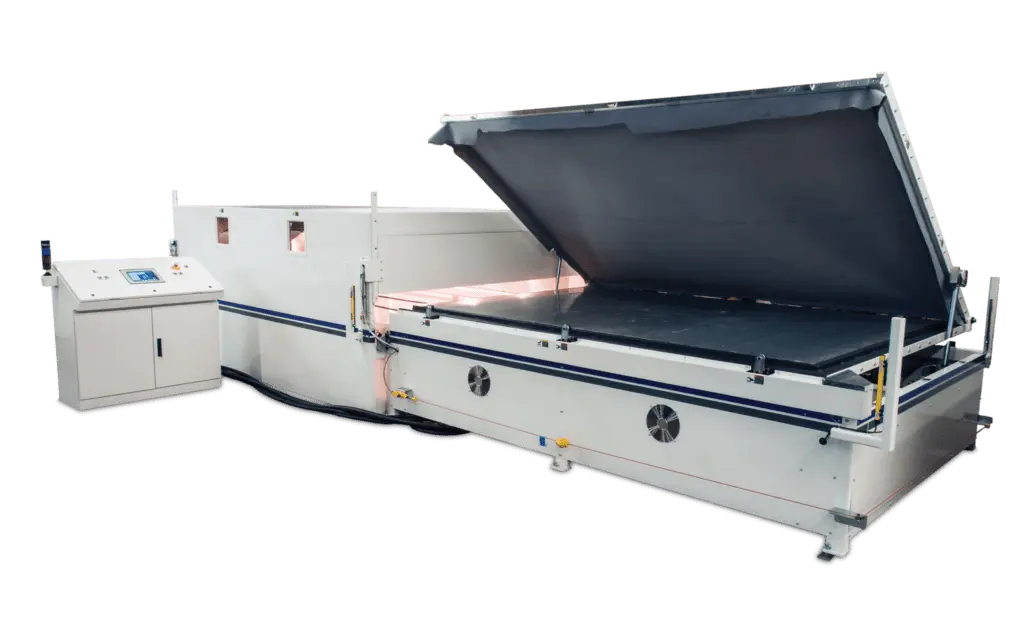

Evans Midwest AP 710S / 1010S Shuttle Presses

The AP 710S and AP 1010S models exemplify Evans Midwest’s commitment to innovation. These “shuttle” style thermo-laminating presses are specifically engineered to laminate both flat and 3-dimensional panels, commonly found in aircraft and railcar interiors. Utilizing infrared heating and vacuum technology, these systems offer unparalleled precision. The presses come in two configurations, capable of handling panels up to 15 or 24 inches thick at the center of the form. Moreover, the option of adding a second shuttle significantly boosts production capabilities. These models can also be equipped with optional pneumatic locking cylinders, cooling fans, and light curtains, further enhancing their functionality.

Base frame/heating chamber with infrared heating system, viewing windows and interior light. Includes pneumatically operated end-door(s) to retain heat during heating cycle
Shuttle frame/vacuum bed with laser perforated galvanized steel platen, two (2) vacuum ports to evenly distribute vacuum, and heavy duty casters with rails
Heating system includes 375 watt infrared emitters rated to 10,000 hours of life, SSR temperature controls, and non-contact thermal sensor
Silicone membrane mounted to a pneumatically operated, hinged aluminum extrusion with over-center mechanical clamps
Vacuum system with single stage, rotary vane vacuum pump, vacuum gauge, manual bleed valve and dump valve
Heating/cooling cycle indicator light with buzzer
Compressed air blow-off gun with coiled hose
Console style electrical enclosure
Automation Direct operator interface (HMI) with six (6) inch color monitor
PLC controlled sequence of operation with twenty (20) presets
Allen-Bradley® HMI/PLC controls
Powered shuttle with pneumatic locking cylinders
Second shuttle/vacuum bed
Lower heating system
Cooling fans
Light curtain
