***Please note: This product has territorial restrictions. Meaning we can only sell it with in a certain radius from our location in Kingston, TN. However please contact us and we will point you to the right point of contact for your area. We are always here to help.

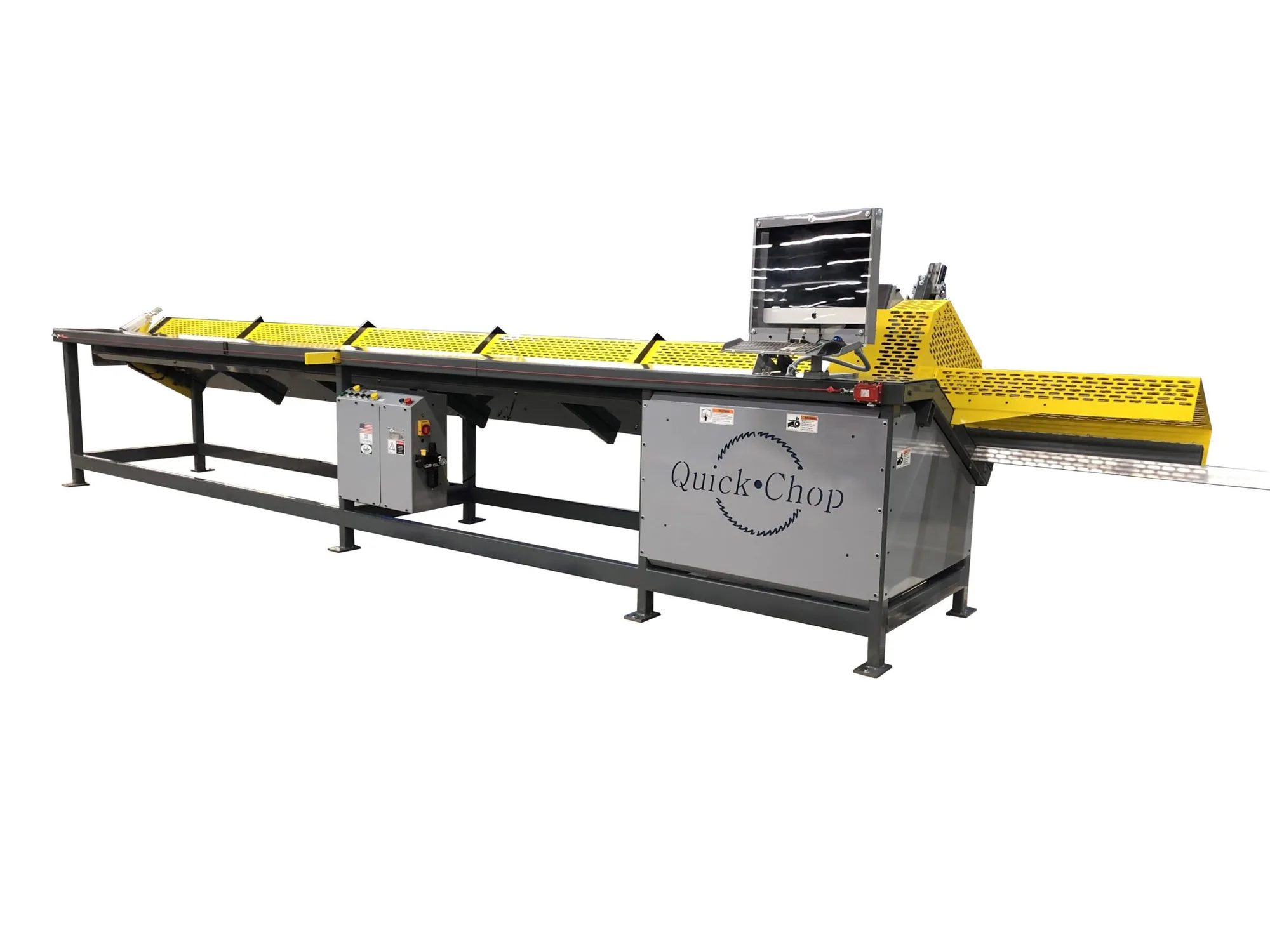

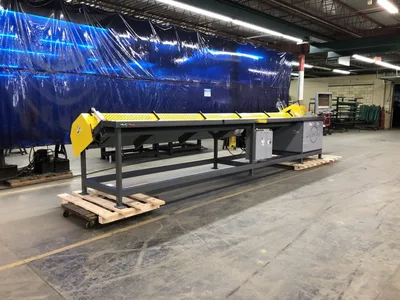

Redesigned from the ground up in 2018, the Quick Chop Plus is a complete and affordable push feed chop saw optimization system. Based off of the time tested #37A- Quick Chop Design and the Powerful “Quick Chop” software platform, The Quick Chop Plus offers many of the same features at more than double the production. The Quick Chop Plus can cut around 30 lineal ft. of material a minute. This totals 13,000+ Lineal Feet per (8) Hour shift.
Like our other Cameron Platforms, the Cameron “Quick Chop” Program is robust and powerful. The Quick Chop’s software runs on a full featured computer – not just a keypad and a PLC. Because the Quick Chop is designed with the custom shop in mind, the software is sophisticated yet easy to use and easy to understand.
The Quick Chop Will:

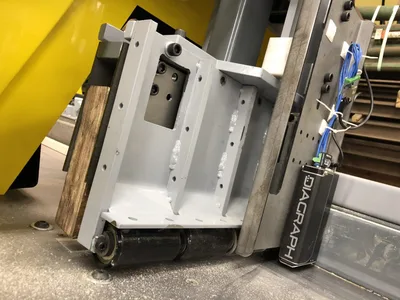

Accurately cut boards to length from cut lists plus or minus .030″. For even closer tolerances the Quick Chop chop saw optimization system offers the option of a lineal encoder for accuracy of +/- .010″.
Allow operator to use familiar crayon based defect marking and grading.
Increase yield of cut stock and prioritize chop lengths.
Make accurate and smooth cuts with a mechanical chop saw.
Keep accurate tallies of production and yield.
Increase operator safety.
Network with office computers to import cut lists from spread sheets and review reports.
Print lengths and references on parts with an optional inkjet printer.
Wirelessly network with other Quick Chops and the Quick Rip to collectively work on jobs and increase yield.
Small to medium sized shops.
Those who currently have operators using manually operated chop saws.
Manufacturers of high quality wood products.
Door and Face Frame Manufacturers
Stair and Tread Manufacturers
Furniture Component Manufacturers
(1) Hour = 1,900 Lineal Ft.
(8) Hour Work Day
Assuming (7) Working Hours = 13,000+ Lineal Ft.
Assuming (7) Working Hours = 13,000+ Lineal Ft.
10 Hour Work Day
Assuming (9) Working Hours = 17,000+ Lineal Ft.
Assuming (9) Working Hours = 17,000+ Lineal Ft.
Power Requirements (3 Phase Required)
220V = 30 Amps
480V = 15 Amps
220V = 30 Amps
480V = 15 Amps
Air Requirements
1/4″ Airline = 5 SCFM @ 90 psi
1/4″ Airline = 5 SCFM @ 90 psi
Saw Blade Cutting Capacities
14″ Diameter / 1″ Bore
4/4 Material = 8.5″ Wide
8/4 Material = 7″ Wide
18″ Diameter / 1″ Bore
4/4 Material = 13″ Wide
16/4 Material = 10″ Wide
14″ Diameter / 1″ Bore
4/4 Material = 8.5″ Wide
8/4 Material = 7″ Wide
4/4 Material = 8.5″ Wide
8/4 Material = 7″ Wide
18″ Diameter / 1″ Bore
4/4 Material = 13″ Wide
16/4 Material = 10″ Wide
4/4 Material = 13″ Wide
16/4 Material = 10″ Wide
Saw Arbor Motor
7.5 Hp
7.5 Hp
Max Material Length Capacity
Offered in 12, 16, 20, and 24 ft Length Options
Offered in 12, 16, 20, and 24 ft Length Options
Dust Collection
1 x 4″ Dust Port
400 CFM Required
1 x 4″ Dust Port
400 CFM Required
Increases yield of cut stock
Higher production
Tallies Material Automatically
Better consistency in Chop Lengths
Simple and quick Luminescence crayon marking is used for defects or grading
Unique design enables operator to be marking two or more boards ahead of the board being chopped. This equals higher productivity.
Higher yield through grade sharing
Accuracy within +/- 0.010
Quick Chop uses a full featured computer system, not just a keypad

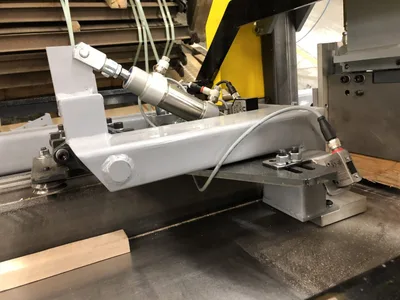

Pneumatic saw actuator is fast and delivers a smooth operation cycle for accurate and quality cuts.

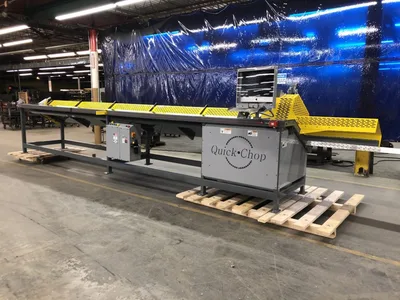

Welded one-piece steel frame allows the Quick Chop to ship set up. Installs in one afternoon
