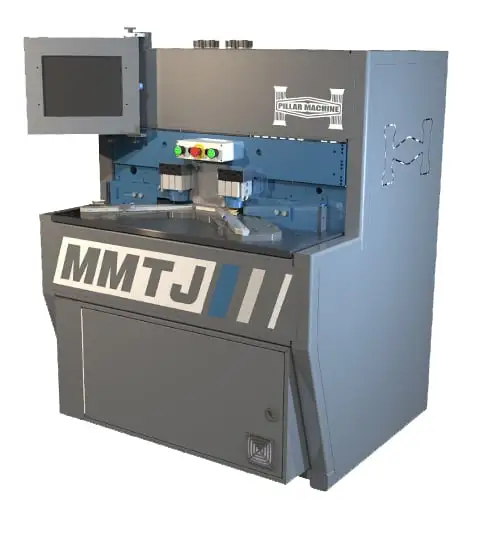

Pillar MMTJ: High-Output 3-Axis CNC Miter Machine for Cabinet Doors

The MMTJ is a 3-axis CNC miter machine producing 200-275 mitered mortise-and-tenon doors per 8-hour shift with one operator. Servo-driven rack-and-pinion and ball screw axes handle the cuts; a 2024 slim shaker upgrade processes parts as narrow as 1/2″. Winner of the 2004 IWF Challengers Award.

3-Axis CNC Precision: Servo-driven X, Y, and Z axes, featuring rack-and-pinion and ball screw systems, ensure precise mortise and tenon cuts across diverse profiles.
High-Volume Output: Produces 200-275 doors per shift, making it ideal for scaling production without requiring additional labor.
Slim Shaker Capability: 2024 upgrade handles parts down to 1/2″ wide, perfect for sleek, modern cabinet designs.
Dual Work Zones: Two zones enable pendulum processing, allowing continuous operation by loading one part while machining another.
Intuitive Control Hub: A 15″ touchscreen with open-architecture software supports .xml file imports and barcode scanning (optional reader) for fast programming.
Robust Durability: High-precision square rail guides and a welded frame ensure long-lasting performance in demanding environments.
Visual guides for precise mortise and tenon placement.
Customizable tool paths for varied profiles.
Secure access and online diagnostics (with an internet connection).
