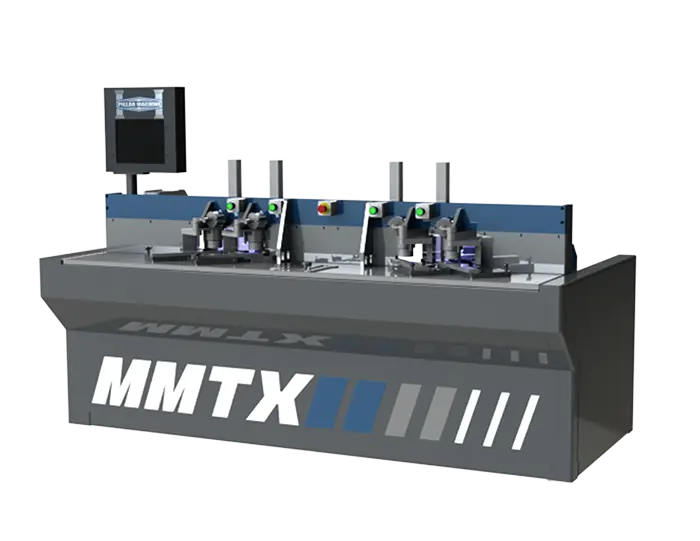

Pillar MMTX: High-Volume 6-Axis CNC Miter Machine for Cabinet Doors
Overview
The MMTX is a 6-axis CNC miter machine with dual carriages, producing 400-500 mitered doors per 8-hour shift with one operator. Separate 7.5 HP tenon, 7.5 HP miter, and 3 HP mortise spindles handle each operation independently. Processes MDF, paper-wrapped, and vinyl-wrapped profiles without inlays or post-sanding.
Specs
6-Axis CNC Mastery: Dual carriages, each with three CNC-controlled axes (X, Y, Z), ensure tear-out-free mortise and tenon cuts with unmatched precision.
High-Capacity Output: Crafts 400-500 doors per shift, ideal for large-scale cabinet shops aiming to maximize productivity.
Material Versatility: Processes MDF, paper-wrapped, and vinyl-wrapped profiles, eliminating the need for inlays and reducing tooling costs by over 50%.
Dual Work Zones: Two loading stations per carriage enable pendulum processing, ensuring uninterrupted production flow.
Advanced Control: A 15″ touchscreen with intuitive software supports .xml file imports and barcode scanning (optional reader) for rapid program changes.
Heavy-Duty Build: Weighing 3,200 lbs. with a welded steel frame, it’s engineered for durability in demanding environments.
6-Axis CNC Mastery: Dual carriages, each with three CNC-controlled axes (X, Y, Z), ensure tear-out-free mortise and tenon cuts with unmatched precision.
High-Capacity Output: Crafts 400-500 doors per shift, ideal for large-scale cabinet shops aiming to maximize productivity.
Material Versatility: Processes MDF, paper-wrapped, and vinyl-wrapped profiles, eliminating the need for inlays and reducing tooling costs by over 50%.
Dual Work Zones: Two loading stations per carriage enable pendulum processing, ensuring uninterrupted production flow.
Advanced Control: A 15″ touchscreen with intuitive software supports .xml file imports and barcode scanning (optional reader) for rapid program changes.
Heavy-Duty Build: Weighing 3,200 lbs. with a welded steel frame, it’s engineered for durability in demanding environments.
Visual guides for mortise and tenon placement across multiple profiles.
Multiple tool paths for customizable cuts.
Secure access and online diagnostics (with an internet connection).
