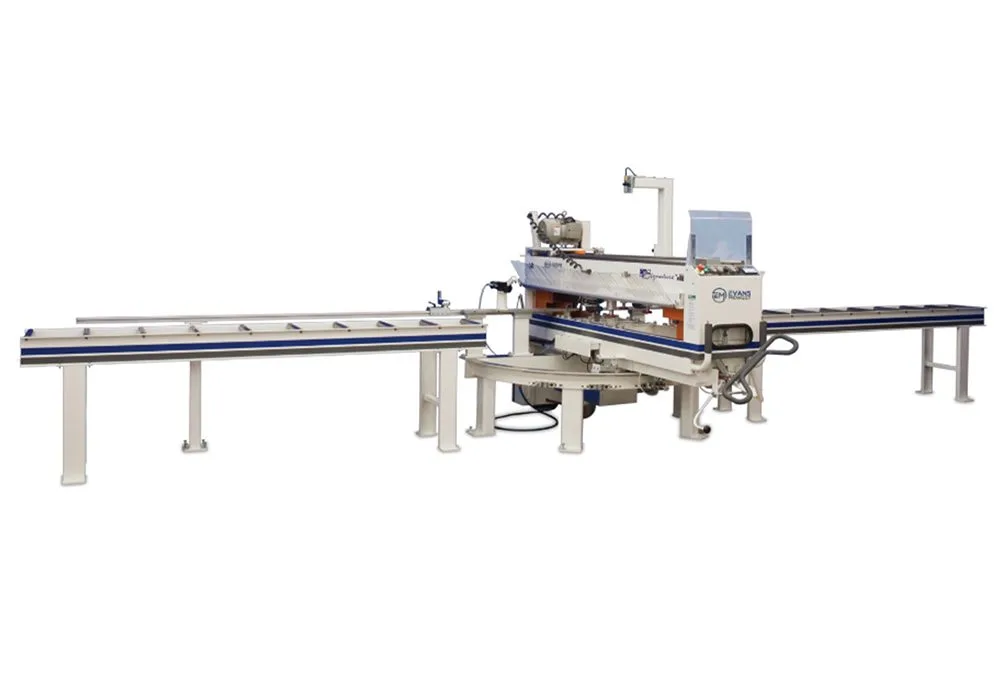

Evans Midwest CS XL Cutting Station – Postforming Miter Saw

Meet the Evans Midwest CS XL Signature™ Cutting Station; this countertop saw is highly sought-after for fabricating a wide range of kitchen countertops and vanities. With fast, accurate miter cuts and drawbolt mortises, this reliable machine reduces handling time, operator fatigue, and product damage.

Upper and lower frames ore machined in a single set up at Midwest’s state-of-the-art manufacturing facility
Fixed stops at 22.5°, 45°, and 90° (RH & LH side}
Pneumatic locking pin
5 HP saw motor with heavy-duty arbor assembly
Variable speed forward/reverse drive
Router system includes four(4) router motors, a guiding template, rotating template pin with ball bearing
Two (2) pneumatic hold-down clamps per side
OSHA-recognized safety Awareness Barriers
Heavy-duty rear fence
Three (3) dust collection hookups
Plexiglass shield
Ergonomically designed with low profile control panel and sure-grip operator handles
Sixteen (16) inch (406 mm) saw blade and four (4) router bits
Safety interlocks and emergency stop
Standard And Heavy-duty Roller Conveyors
Special Wheel Conveyors
Special Fences With Nip-over Stops
Tigerstop Electronic Fence With Automatic Positioning
Laser Guideline Kit
Dust Manifold
Variable Miter Kit With Digital Readout
Backsplash Clamps
Support Rings For Short Parts
Dust Enclosure Kit
5th Router Motor Kit
