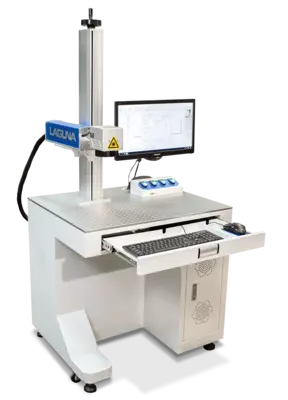

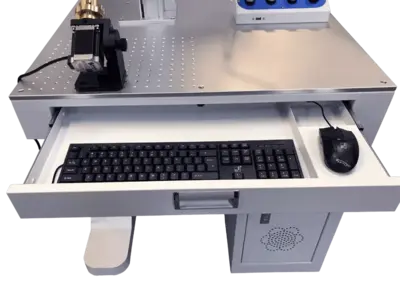

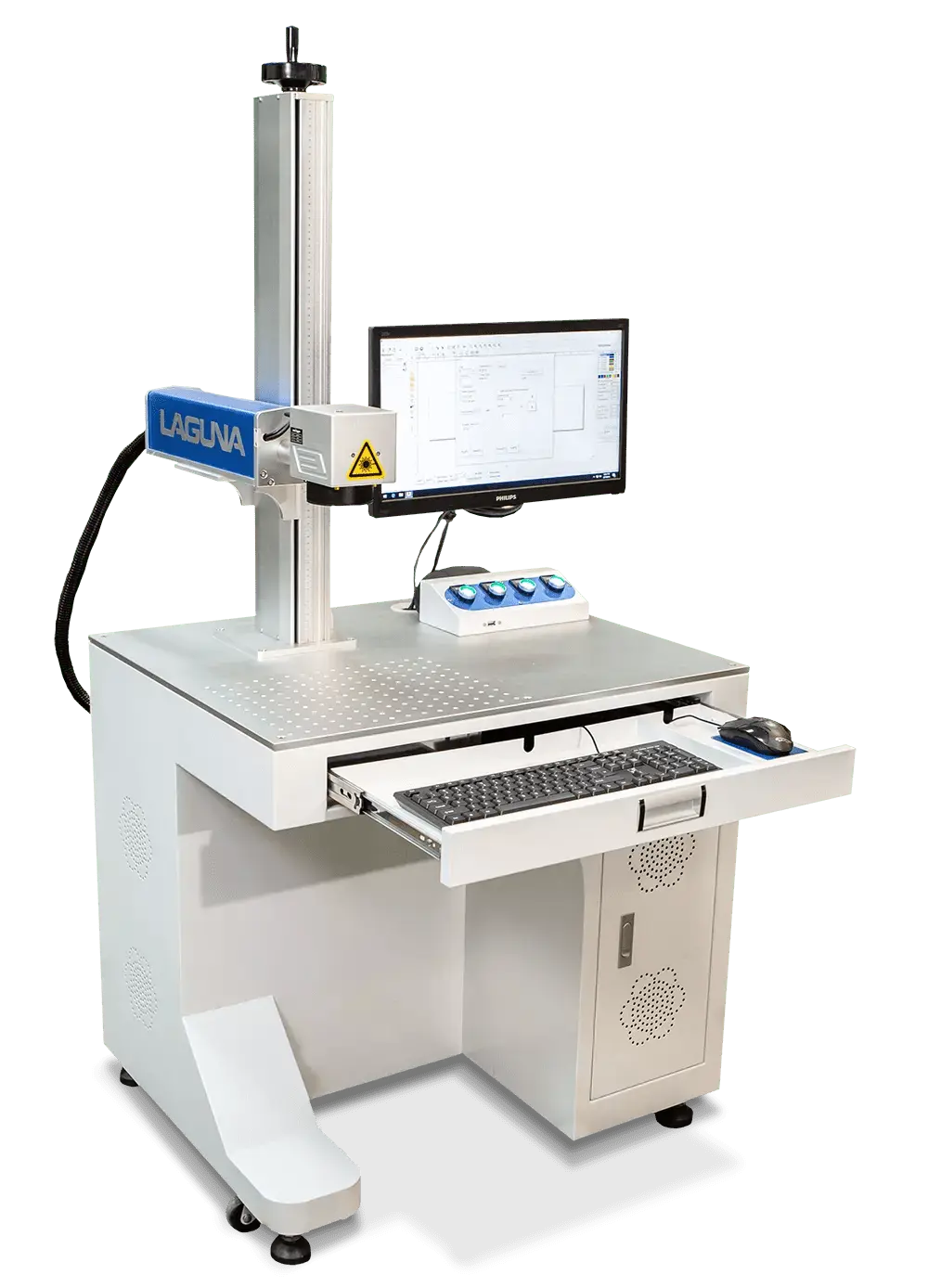

Laguna Fiber Marker | OM

Laguna Fiber laser marking machines are a new generation laser marking system made with the newest laser technology, designed for permanently marking and engraving metal as well as industrial polymers.
Features:
20,30, 50 and 100 Watt Options
110 x 110mm Lens
Laser Wavelength: 1064nm
Up to 10,000mm/s Marking Speed
Resolution: 0.001mm
Repositioning Precision: 0.003mm
Air cooling system

1064nm Wavelength
20W/30W/50W Average Power Output
20kHz – 80kHz Modulation Frequency Range
File Formats: .plt, .dst, .bmp, .dwg, .ai, .las, supports AutoCAD, CoreDraw Direct output
Raycus Q-Switch or JPT MOPA (Optional)
10,000mmm/s Maximum Speed
0.001mm Resolution
0.003mm Repositioning Precision
0.01mm Minimum Line Width
0.2mm Minimum Height of Characters
F = 160mm
Range: 110 x 110mm (with standard)
0.5KW
AC: 220V
50Hz
0.01mm
150mm x 150mm
200mm x 200mm
220mm x 220mm
300mm x 300mm
0.2mm
Air-Cooled
0 ~ 35 ℃, 90% Humidity
