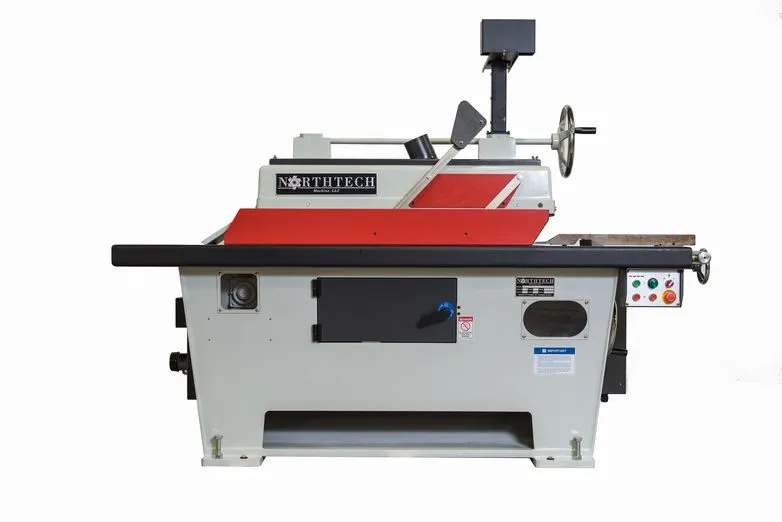

Northtech NT-SLR-18SC Precision 18″ Straight Line Rip Saw ( 5″ Depth of Cut)

With it’s main 20 hp motor and a 18″ blade you will be able to achieve a max. depth of cut of 5” with an 18” Blade. Chain and Race equipped with “True Track” for glue line accuracy. This is the newest generation of straight line cutting machines and affordably priced. The 3HP variable feed will allow speeds from 50′ – 190′ / minute.

Main Motor Hp. = 20 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 55/28 Amps
Feed Hp. = 3 Hp.
Feed System = 4” Split Chain with True Trac
Drive System = Belt
Feed Speed = 50 – 190 FPM
Variable Speed = Mechanical
Elevation Style = Manual Wheel Adjustment
Elevation Sys. = Jack Screw / Linear Guides
Total Hp. = 23 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt
Pass-Line = 32-3/4”
Throat Capacity = 26-1/4”
Min. Length = 16″ Kickback to First Roller
Min. Width = 1″
Min. Thickness = 3/16″
Max. Thickness = 5”
Glue Line Rip = 14′ – 16′ 4/4 stock @ 50 FPM
Arbor Rpm = 3550 Rpm
Blade Size = 14” Tungsten Carbide Tipped
No. of Teeth = 70 Tooth
Tooth Spacing = 5/8 In.
Blade Kerf = .197 In.
Tracking Style = “True Track” System
Dust Collection = 1417 Total CFM
Dust Port Out = 4” Top 6” Bottom
Chain Adj. = True Track Adjustable Chain
Hold Down Style = 8 Spring Loaded Hold Downs
Kickback Finger = (85) Bottom (40) Top
Emergency Stop = Push Button
Rear E Stop = Push Button
Safety Feature = Door Switch / Motor Brake
Guarding = High Visibility Guarding
Oiler = Automatic Mechanical Oiler
Low Oil Warning = Low Oil Shut-off
Fence Type = Industrial Cam Lock Quick Rel
Fence Dims. = 1-3/4” x 27-3/4”
Brake System = Air Brake on Motor
Frame Const. = 1″ Base 1/2″ Cabinet 3/4″ Arms
Worktable Dims. = 83″ x 40″ x 3.5″ Table
Table Const. = Steel
Laser = 100mw Laser Light & Mount Bracket
Decible Rating = 84 dB
Net Weight = 3455 Lbs.
Gross Weight = 3675 Lbs.
Machine Dims. = 90″ x 67″ x 68″
Packaging Dims = 91” x 72” x 78”
