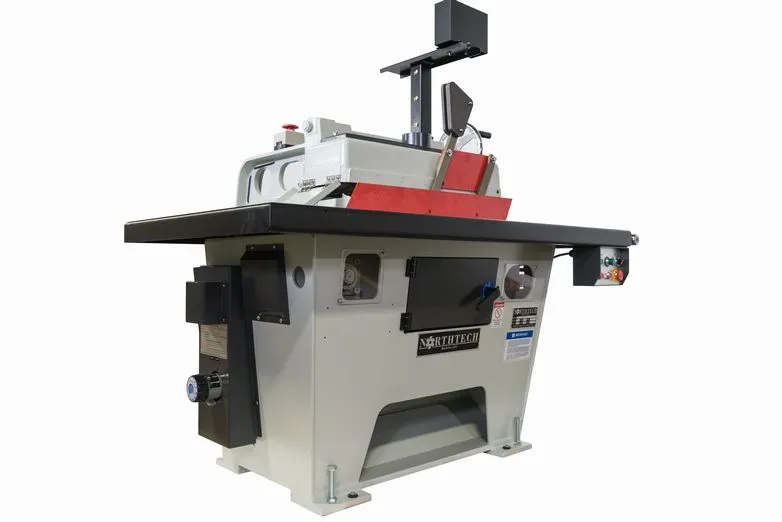

Northtech NT SLR-14SC 14″ Straight Line Rip Saw ( 3-1/8″ depth of cut)

With it’s main 15 hp motor and a 14″ blade you will be able to achieve a max. depth of cut of 3-1/8″ with a 14” Blade. Chain and Race equipped with “True Track” for glue line accuracy. This is the newest generation of straight line cutting machines and affordably priced. The 1.5HP variable feed will allow speeds from 40′ – 120′ / minute.

Saw motor: 15HP, 3PH 230/460V
Feed: 1.5HP variable from 40 – 120 FPM
Min. thickness: 3/16″
Max depth of cut: 3-1/8″ (with 14″ blade)
Max. width of stock: (Blade to column arms) 18″
Chain and Race equipped with “True Track”
Table size 61″ x 33-1/2″ x 31-1/2”
The machine frame is constructed of a 1″ thick base plate.
Solid steel frame with 3/4″ thick column arms.
Safety door switch with pneumatic motor brake.
2″ arbor and large support bearings.
Glue line guarantee on 8ft 4/4 at 50 FPM
All motors and electricals are UL-rated.
Industrial fence with cam-lock quick release on rack and pinion glide.
Two rows of heavy-duty kickback fingers.
(6) large pressure rollers for optimum glue line ripping.
An automatic mechanical oiling system with low oil level feed shutoff.
A 100mw laser light (red) and mounting bracket are included.
(1) Toolbox
Amperage requirements: 15HP + 1.5HP 230V / 460V: 40A / 20A.
Dust requirements: (1) 4″ @ 450 CFM (1) 6” Port @ 981 CFM
Weight: 1,930 lbs..
Machine dimensions: (L) 70″ x (W) 59″ x (H) 71″
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.
Main Motor Hp. = 15 hp.
Direct Drive = Direct Drive
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 40/20 Amps
Feed Hp. = 1.5 Hp.
Feed System = 4” Split Chain with True Trac
Drive System = Belt
Feed Speed = 40-120 FPM
Variable Speed = CVT Adjustable Drive
Elevation Style = Manual Wheel Adjustment
Elevation Sys. = Linear Gauge with Hand Wheel
Total Hp. = 16.5 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt

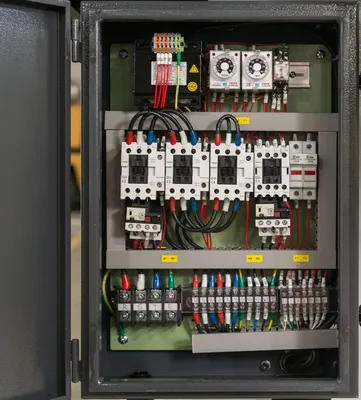

Control Voltage = 110 Volt
Assisted Start = Wye Delta
Pass-Line = 31-3/8”
Throat Capacity = 18”
Min. Length = 12” 1st Hold Down to Kickback
Max. Length = Infinite
Min. Width = 1″
Min. Thickness = 3/16″
Max. Thickness = 3-1/8”
Glue Line Rip = Guaranteed 8′ 4/4 stock @ 50 FPM
Arbor Rpm = 3520 RPM

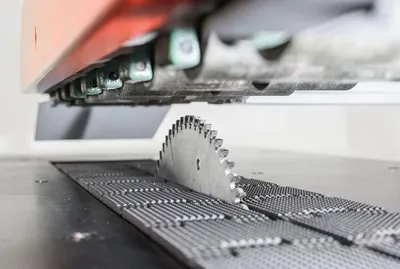

Blade Size = 14” Tungsten Carbide Tipped
No. of Teeth = 70 Tooth
Tooth Spacing = 5/8 In.
Blade Kerf = .197 In.
Tracking Style = “True Track” System
Vertical Travel = 3/16” – 3-1/2”
Dust Collection = 1417 Total CFM
Dust Port Out = (1) 4” Top (1) 6” Bottom
Arbor Diameter = 2″ Arbor
Chain Adj. = True Track Adjustable Chain
Hold Down Style = (6) Spring Loaded Hold Downs
Kickback Finger = (31) Top (59) Bottom Fingers
Recommended CFM = 1417 Total CFM

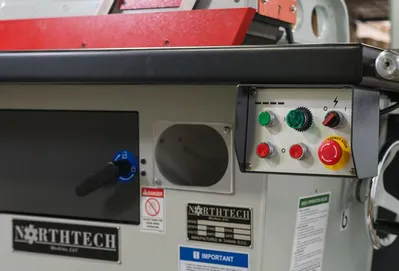

Emergency Stop = Push Button
Rear E Stop = Push Button
Safety Feature = Door Switch / Motor Brake
Guarding = High Visibility Guarding

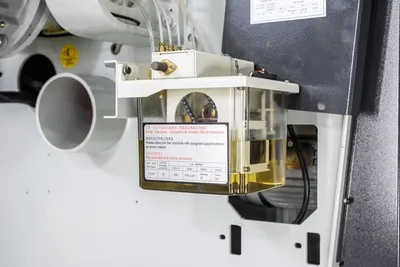

Oiler = Automatic Mechanical Oiler
Low Oil Warning = Low Oil Shut-off
Fence Type = Industrial Cam Lock Quick Rel
Fence Dims. = 1-3/4” x 23-3/4”
Brake System = Pneumatic Brake
Frame Const. = 1/4” Steel Construction
Worktable Dims. = 61” x 33-1/2”
Table Const. = Steel
Laser = 100mw Laser Light & Mount Bracket
Decible Rating = 80 dB
Net Weight = 1930 Lbs.
Gross Weight = 2150 Lbs.
Machine Dims. = 69-1/2” x 54” x 62-1/2”
Packaging Dims = 72” x 59” x 71”
