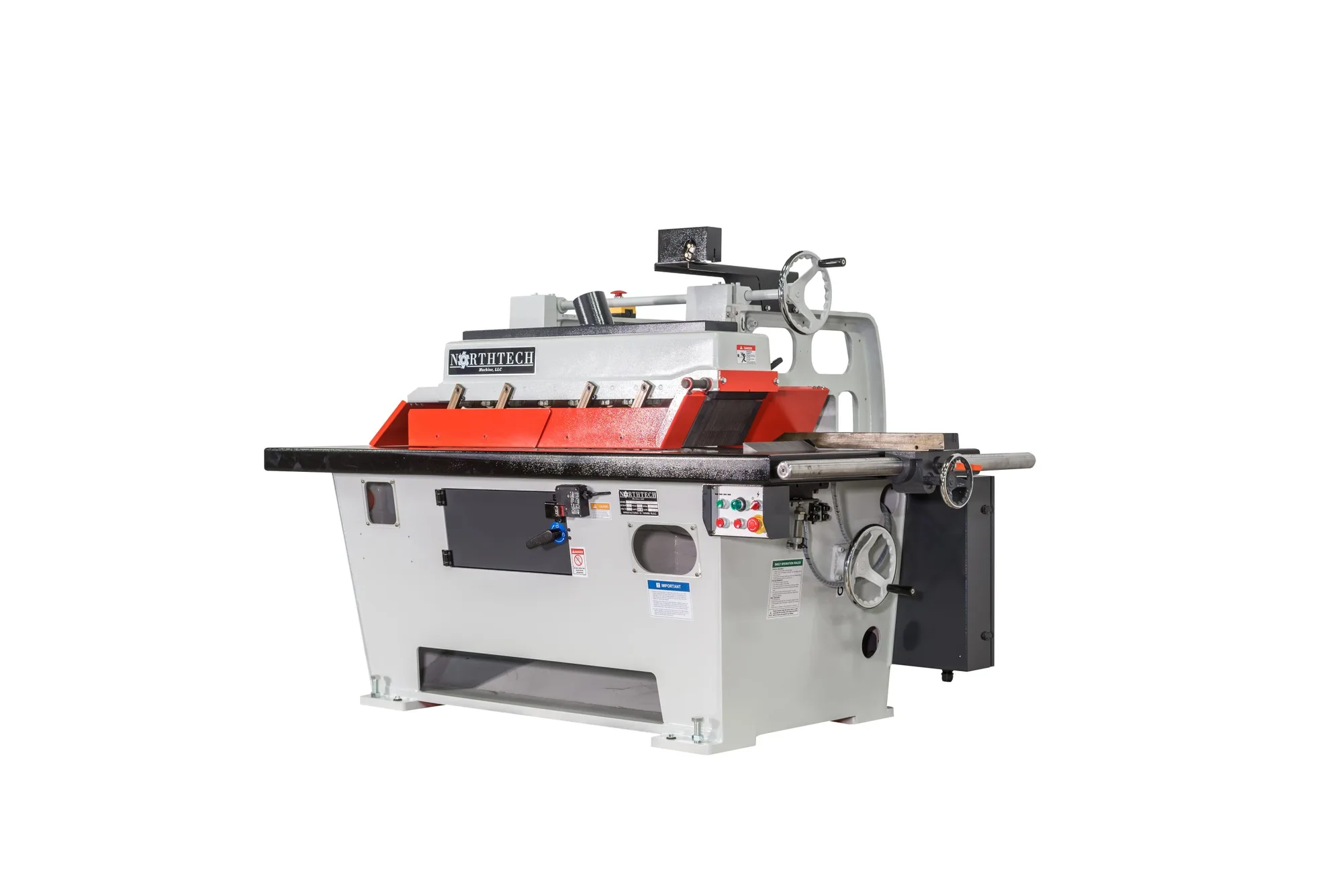

Northtech NT SLR-16SC Precision 16″ Straight Line Rip Saw ( 4-1/16″ depth of cut)

The NT SLR-16SC precision straight-line rip saw is equipped with a 15 HP arbor motor and 16″ blade, providing a maximum depth of cut of 4-1/16″ (with 16″ blade). This is the newest generation of Northtech’s straight-line cutting machines and is affordably priced. The chain and race are equipped with “True Track” for glue line accuracy, and the 1.5 HP variable feed will allow speeds from 40′ – 120′ / minute.

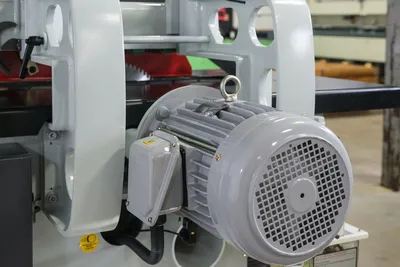

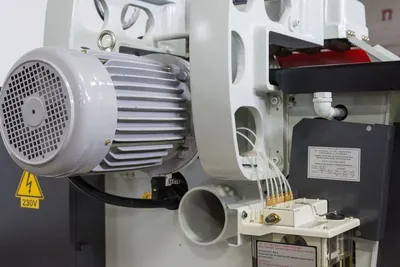

Saw motor: 15HP, 3PH 230/460V
Feed: 1.5HP variable from 40′ – 120′ FPM
Min. thickness: 3/16″
Max depth of cut: 4-1/16″ with 16” Blade
Max depth of cut: 3-1/16” with 14” Blade
Max. width of stock: (Blade to column arms) 18-1/4″

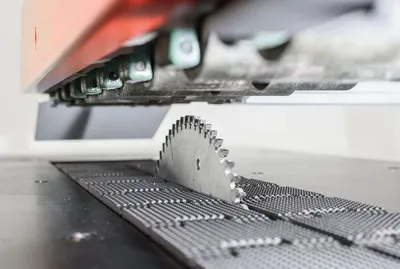

“True Track” Chain and Race
Table size 69” x 35”
The machine frame is constructed of a 1″ thick base plate
Solid steel frame with 1/2″ thick column arms.
Safety door switch with pneumatic motor brake.
2″ arbor and large support bearings.
Glue line guarantee 12′ on 4/4 at 50 FPM
All motors and electricals are UL-rated.
Industrial fence with cam-lock quick release on rack and pinion glide.

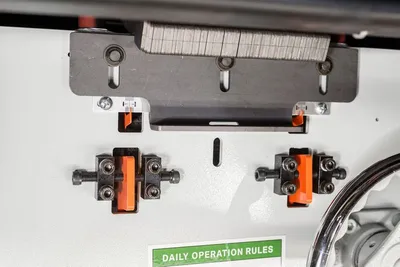

Two rows of heavy-duty kickback fingers.
(8) large pressure rollers for optimum glue line ripping.

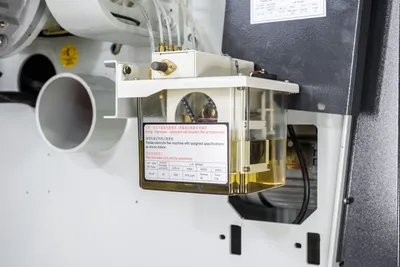

An automatic mechanical oiling system with low oil level feed shutoff.
A 100mw laser light and mounting bracket are included.
(1) Toolbox
Amperage requirements: 15HP + 1.5HP 230V / 460V: 39.7A / 19.85A.
Dust requirements:
(1) 4″ dust port requiring 450 CFM
(1) 6″ dust port requiring 981 CFM
(1) 4″ dust port requiring 450 CFM
(1) 6″ dust port requiring 981 CFM
Weight: 2,285 lbs.
Machine dimensions: (L) 77″ x (W) 57″ x (H) 66″
Warranty is one-year parts
All machines are tested stateside at the factory before shipment providing trouble-free start-up.
Main Motor Hp. = 15 hp.
Direct Drive = Direct Drive
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 40/20 Amps
Feed Hp. = 1.5 Hp.
Feed System = 4” Split Chain with True Trac
Drive System = Belt
Feed Speed = 40-120 FPM
Variable Speed = Mechanical
Elevation Style = Manual Wheel Adjustment
Elevation Sys. = Linear Gauge with Hand Wheel
Total Hp. = 16.5 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 110 Volt

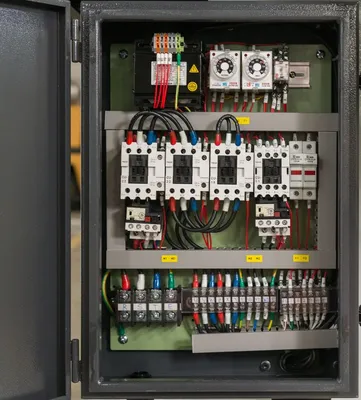

Assisted Start = Wye Delta
Pass-Line = 33-3/8”
Throat Capacity = 18-1/4”
Min. Length = 12” 2nd Roller to Kickback
Max. Length = Infinite
Min. Width = 1″
Min. Thickness = 3/16″
Max. Thickness = 4-1/16” W/ 16” Blade
Glue Line Rip = Guaranteed 12′ 4/4 stock @ 50 FPM
Arbor Rpm = 3520 RPM
Blade Size = 14” Tungsten Carbide Tipped
No. of Teeth = 70 Tooth
Tooth Spacing = 5/8 In.
Blade Kerf = .197 In.
Vertical Travel = 3/16” – 3-3/8”
Dust Collection = 1417 Total CFM
Dust Port Out = 4” Top 6” Bottom
Arbor Diameter = 2″ Arbor
Idle Rollers = (8) Idle Rollers
Hold Down Style = 8 Spring Loaded Hold Downs
Kickback Finger = (59) Lower (32) Top

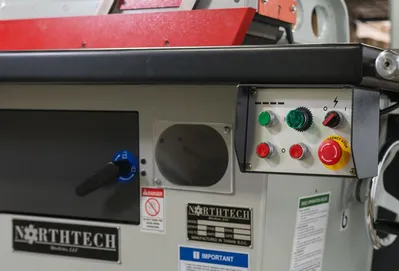

Emergency Stop = Push Button
Rear E Stop = Push Button
Safety Feature = Door Switch / Motor Brake
Guarding = High Visibility Guarding
Oiler = Automatic Mechanical Oiler
Low Oil Warning = Low Oil Shut-off
Fence Type = Industrial Cam Lock Quick Rel
Fence Dims. = 1-3/4” x 23-3/4”
Brake System = Air Brake on Motor
Frame Const. = 1” Base 1/4” Frame 3/4” Arms
Worktable Dims. = 69” x 35”
Table Const. = Steel
Laser = 100mw Laser Light & Mount Bracket
Decible Rating = 84 dB
Net Weight = 2170 Lbs.
Gross Weight = 2285 Lbs.
Machine Dims. = 77” x 57” x 66”
Packaging Dims = 81” x 58” x 74”
