Northtech NT SRS-12NS 12″ STRAIGHT LINE RIP SAW ( 3-1/2″ depth of cut)
Description
With its main 15 hp motor and a 12″ blade, you will be able to achieve a max. depth of cut of 3-1/2” with a 12” Blade. The 1HP variable feed will allow speeds from 45′ – 100′ / minute.
Specifications
15HP Motor + 1HP feed motor (with Wye Delta soft start)
Mechanical variable speed (45′ – 100′ FPM) provides a speed range for all material types and thickness ranges of 3/16”- 3-1/2”.
Bottom & top kickback fingers
Rack and pinion fence for precise and quick positioning.
Digital electronic oiler provides maximum chain and race life.
15-1/2″ distance from column to blade.
8′ glue line tolerance.
Industrial series 10mw laser is included with steel bracket.
12″ x 50T laser-cut precision blade is included.

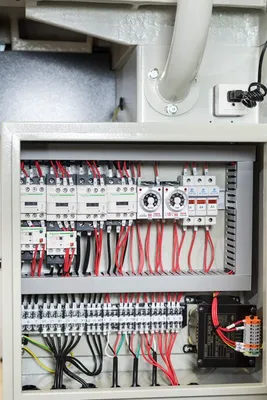

Motors and controls are with UL and CE-approved components.
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.
Main Motor Hp. = 15 hp.
Voltage/ Freq. = 230/460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 26/13 Amps
Feed Hp. = 1 Hp.

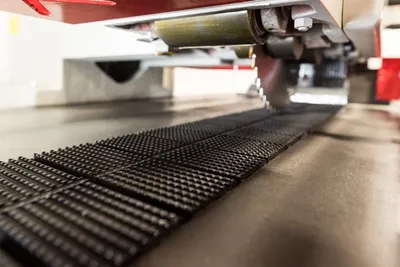

Feed System = 5-1/2” 50 Pad Steel Chain
Drive System = Variable Speed Pulley
Feed Speed = 45 – 100 FPM
Variable Speed = Manual Lever Adjustment
Elevation Style = Manual Wheel Adjustment
Elevation Sys. = Jack Screw / Linear Guides
Total Hp. = 16 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 220V Control Voltage
Assisted Start = Wye Delta Arbor Motor
Pass-Line = 32”
Throat Capacity = 15-1/2”
Min. Length = 10” 2nd Roller to Kickback
Min. Thickness = 3/16″
Max. Thickness = 3-1/2”
Glue Line Rip = Guaranteed 8′ 4/4 stock @ 50 FPM

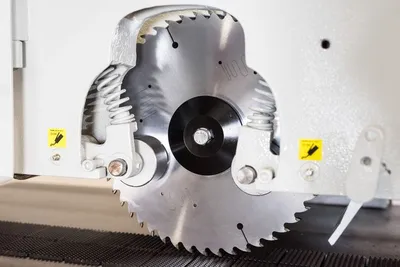

Blade Size = 12” Tungsten Carbide Tipped
No. of Teeth = 50 Tooth
Tooth Spacing = 3/4”
Blade Kerf = 4 mm
Dust Collection = (1) 5” @ 681 CFM
Arbor Diameter = 1” Arbor
Idle Rollers = (6) Idle Rollers
Hold Down Style = (6) Spring Loaded Hold Downs
Kickback Finger = Top/Bottom Kickback Fingers
Emergency Stop = Push Button
Safety Feature = Safety Interlock Switch
Oiler = Auto Oiler
Low Oil Warning = Low Oil Alarm
Fence Type = Industrial Cam Lock Quick Rel
Fence Dims. = 1-3/4” x 27”
Frame Const. = Cast Construction
Worktable Dims. = 31” x 49-3/8”
Table Const. = Cast Iron
Laser = 100mw Laser Light & Mount Bracket
Decible Rating = 86 dB
Net Weight = 1790 Lbs.
Gross Weight = 2018 Lbs.
Machine Dims. = 66” x 38” x 73”
Packaging Dims = 57” x 44” x 61”
