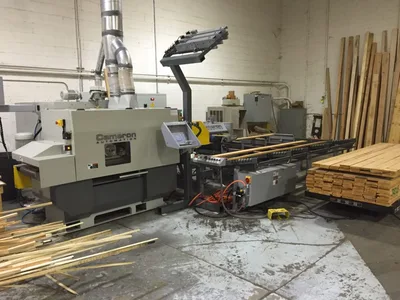

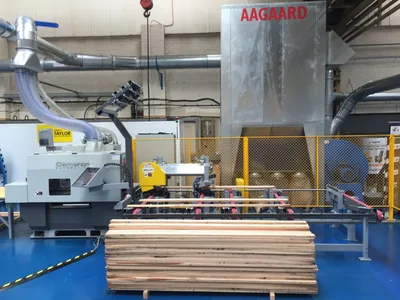

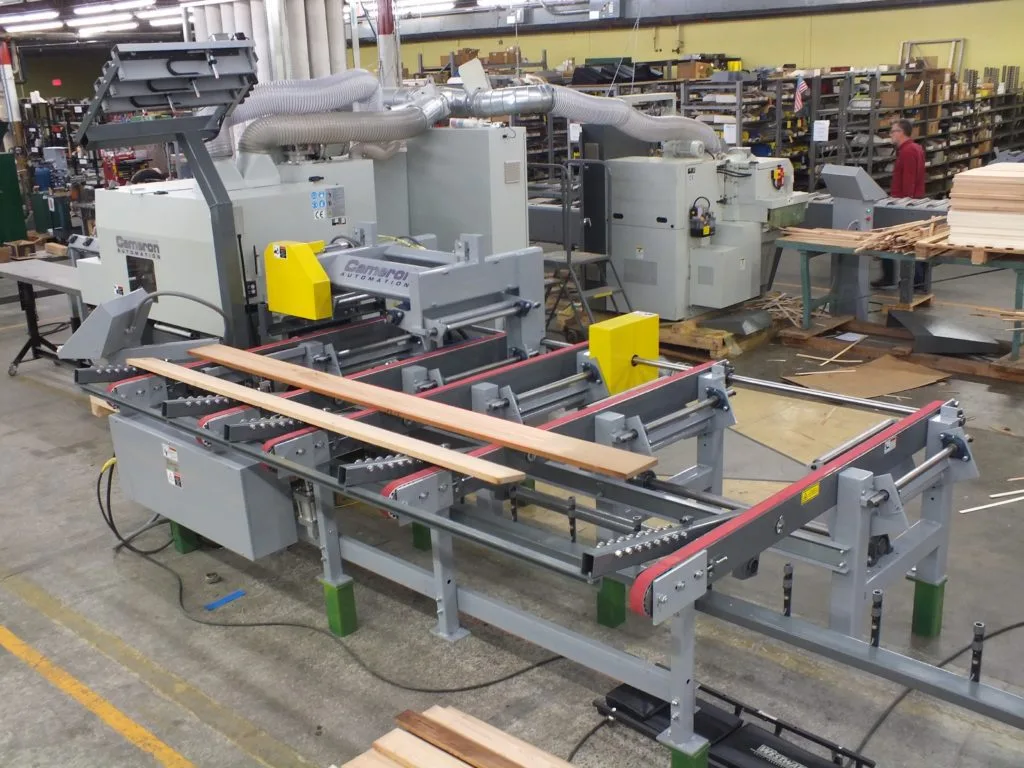

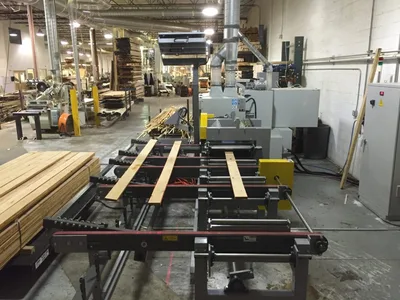

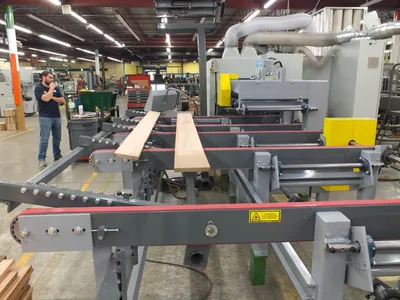

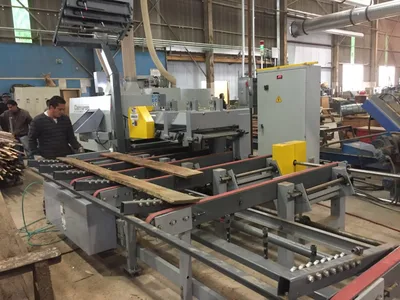

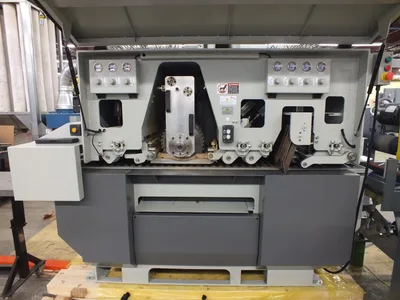

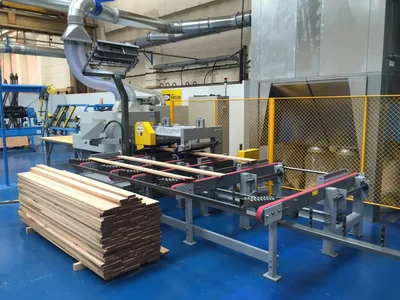

Cameron Automation #415A- Quick Rip System (Gang)

***Please note: This product has territorial restrictions. Meaning we can only sell it with in a certain radius from our location in Kingston, TN. However please contact us and we will point you to the right point of contact for your area. We are always here to help.
The Quick Rip System offers the highest yield in the market due to its fenceless design, powerful “Opti-Rip” optimizing software, and multiple moving blade technology in a few different model saws. Non straight boards are handled just as effectively as straight boards and the net result is lower raw material costs.

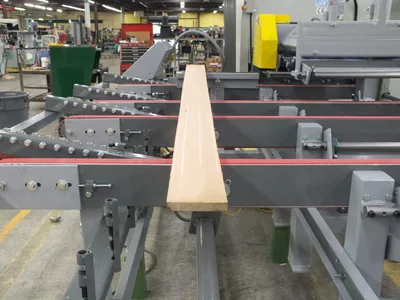

Cameron Quick Rip Infeed with Fenceless, Servo-Driven Board Positioner with Extremely High Accuracy

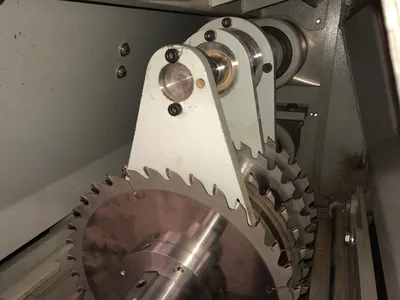

Multiple Moving Blade, Multiple Fixed Blade Setups
Completely Integrated Software Package
Automatic Movable Blade Positioning by the Cameron Software
Highest Board Yield on the Market!!!
Cameron Saw Models:
#413A – 12″ Wide (2) Moving Blade, Multiple Fixed Blade Saw
#413B – 18″ Wide (3) Moving Blade, Multiple Fixed Blade HD Rip Saw
#413C – 24″ Wide (4) Moving Blade, Multiple Fixed Blade HD Rip Saw
Unlike other systems, the Quick Rip is fenceless and has Auto Skewing for achieving highest possible yield. Our sensors read the width, the length, and the shape of the boards. If a board has crook or taper, our software can determine if the board should be skewed for higher yield. If so, it happens automatically. This adds up to an additional 3% yield over systems with a fence. Quick Rips can be paired with Moving Blade Saws that come with (2), (3) or (4) Moving Blades Depending on your Cut Bill and Lumber. The Cameron Opti-Rip software is written in-house allowing changes, improvements and free upgrades to happen on a regular basis.

Moulding & Millwork Shops
Mid-Size Cabinet Manufacturers
Window & Door Manufacturers
Wholesale Lumber Distributor
Current Installation Production Rates
Minimum = 3000 – 4000 bd. ft. per Day
Maximum = 16,000 – 20,000+ bd. ft. per Day
Minimum = 3000 – 4000 bd. ft. per Day
Maximum = 16,000 – 20,000+ bd. ft. per Day
Max Production
Typically Includes a Material Handling Outfeed System
(1) Operator Loading the Infeed
Outfeed Chains to Catch Rips and Cross Transfer
(1 – 2 ) Operators pulling Material from the Chains into Carts
(10 – 12+) 10 Ft. Long Boards per Minute
Typically Includes a Material Handling Outfeed System
(1) Operator Loading the Infeed
Outfeed Chains to Catch Rips and Cross Transfer
(1 – 2 ) Operators pulling Material from the Chains into Carts
(10 – 12+) 10 Ft. Long Boards per Minute
(2) Operators
(1) Operator loading the Infeed and (1) Operator Tailing the Machine
(5 – 6) 10 Ft. Long Boards per Minute
(1) Operator loading the Infeed and (1) Operator Tailing the Machine
(5 – 6) 10 Ft. Long Boards per Minute
(3) Operators
(1) Operator Loading the Infeed and (2) Operators Tailing the Machine
(8 – 10) 10 ft. Long Boards per Minute
(1) Operator Loading the Infeed and (2) Operators Tailing the Machine
(8 – 10) 10 ft. Long Boards per Minute
Lumber Capacities
Standard Machine: 5 Ft. Minimum / 16 Ft. Maximum
Short Stock Machine: 42″ Minimum / 16 Ft. Maximum
Standard Machine: 5 Ft. Minimum / 16 Ft. Maximum
Short Stock Machine: 42″ Minimum / 16 Ft. Maximum
Thickness Tolerances
12″ Saw Blades: 2.5″
14″ Saw Blades: 4″
12″ Saw Blades: 2.5″
14″ Saw Blades: 4″
Maximum Width (Incoming Material)
20″ Wide
20″ Wide

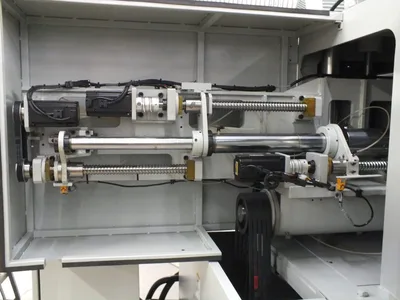

(3) Servo Controlled Movable Blades
Multiple Fixed Blades
Pocket Sizes between Saw Blades
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Feed Speed
Minimum: 26 ft/min (8 m/min)
Maximum: 180 ft/min (55 m/min)
Minimum: 26 ft/min (8 m/min)
Maximum: 180 ft/min (55 m/min)
Electric Motors:
Arbor Motor: 60 Hp
Feed Motor: 5 Hp
Arbor Motor: 60 Hp
Feed Motor: 5 Hp
Three (3) sets of anti-kickback fingers

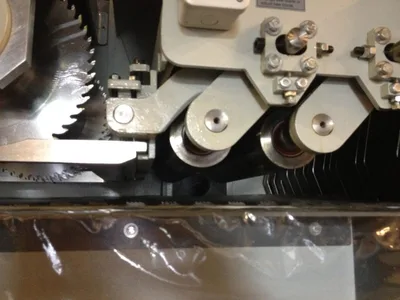

(4) individual Pneumatic pressure rolls

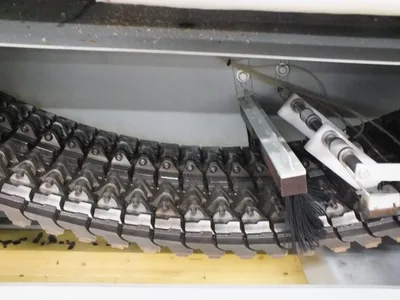

Steel Double V dip chain construction with urethane inserts
Powered out-feed roller
Automatic lubricator for feed chain.
Amp meter for monitoring arbor motor running amperage
Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances

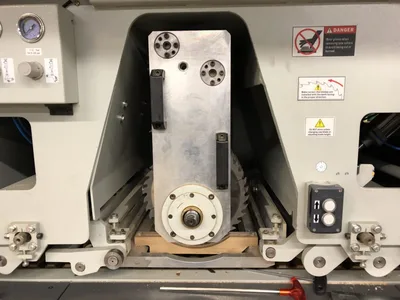

Easy access to spindle and blades for maintenance and tooling changes
Yield Improvement over Hand feeding
Increased Safety for Operator
Full Production Tracking that includes:
Production Tallies
Rough Lumber tracking by length and Yield
Production Tallies
Rough Lumber tracking by length and Yield
Arbor Optimization (mainly used with large fixed arbor saws)
Bundle reports on packs of lumber
Simulation capabilities to simulate jobs before the wood ever hits the infeed
Product Value Decisions: software can choose rip widths based on which rips are more profitable for your company.
