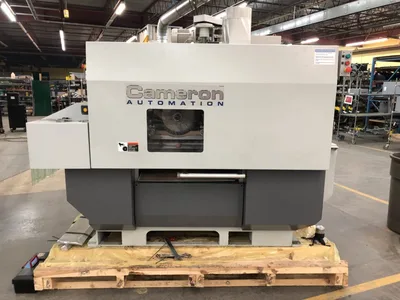

Cameron Automation #413- Cameron Moving Blade Rip Saws (Gang)

***Please note: This product has territorial restrictions. Meaning we can only sell it with in a certain radius from our location in Kingston, TN. However please contact us and we will point you to the right point of contact for your area. We are always here to help.
As Movable Blade Rip Saws have become the industry standard, Cameron Automation has continued to push the envelope with (3) Rip Saw Models that it partners with its Industry leading Cameron Infeeds:
Cameron Saw Models:
#413A – 12″ Wide (2) Moving Blade, Multiple Fixed Blade Saw
#413B – 18″ Wide (3) Moving Blade, Multiple Fixed Blade HD Rip Saw
#413C – 24″ Wide (4) Moving Blade, Multiple Fixed Blade HD Rip Saw
With a Moving Blade Rip Saw, the potential cut patterns are exponentially increased from a fixed arbor or single blade saw. From the skinniest of boards where you can only cut 1 door stile or rail, to the widest boards where you can cut multiple parts, the number of patterns is endless. Because of the number of solutions the moving blades can create, there is no down time to set up the arbor. This makes the whole process of changing from job to job seamless and efficient. The servo driven blades are extremely accurate and fast, and coupled with the Cameron software, change sizes very quickly.

12″ Wide Solid Arbor

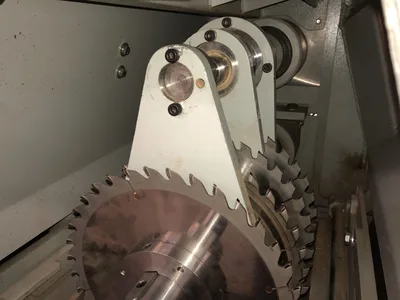

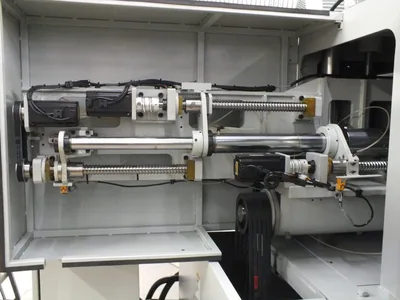

(2) Servo Controlled Movable Blades
Multiple Fixed Blades
Pocket Sizes between Saw Blades
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Feed Speed
Minimum: 26 ft/min (8 m/min)
Maximum: 130 ft/min (40 m/min)
Minimum: 26 ft/min (8 m/min)
Maximum: 130 ft/min (40 m/min)
Electric Motors:
Arbor Motor: 50 Hp
Feed Motor: 3 Hp
Arbor Motor: 50 Hp
Feed Motor: 3 Hp

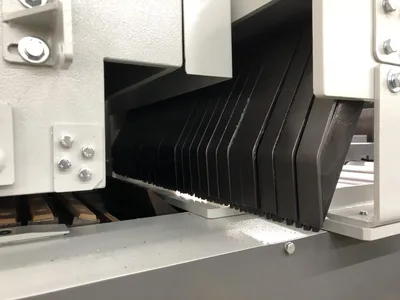

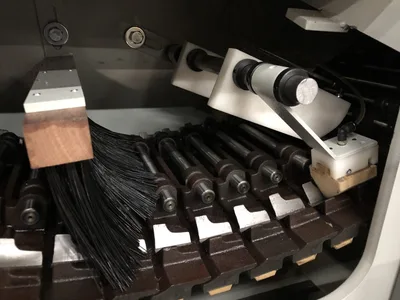

Three (3) sets of anti-kickback fingers

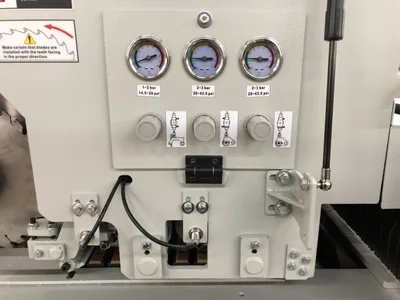

(4) individual Pneumatic pressure rolls

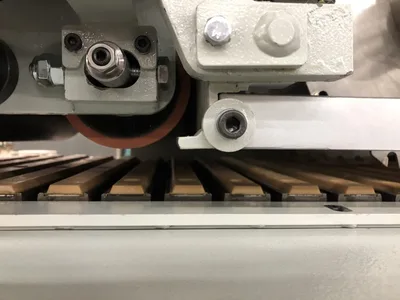

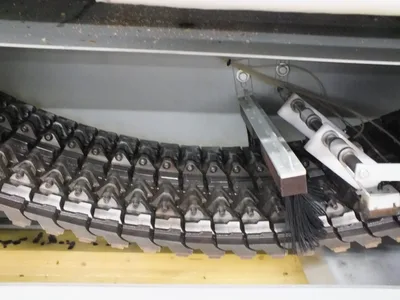

Steel dip chain construction with urethane inserts
Powered out-feed roller
Digital controlled lubricator for feed chain.
Amp meter for monitoring arbor motor running amperage

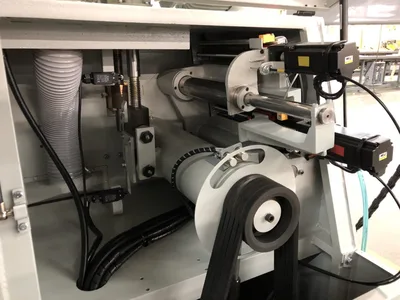

Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances

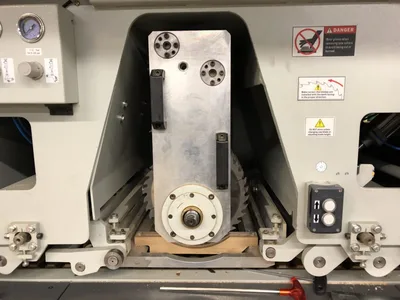

Easy access to spindle and blades for maintenance and tooling changes
18″ Wide Solid Arbor
(3) Servo Controlled Movable Blades
Multiple Fixed Blades
Pocket Sizes between Saw Blades
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Feed Speed
Minimum: 26 ft/min (8 m/min)
Maximum: 180 ft/min (55 m/min)
Minimum: 26 ft/min (8 m/min)
Maximum: 180 ft/min (55 m/min)
Electric Motors:
Arbor Motor: 60 Hp
Feed Motor: 5 Hp
Arbor Motor: 60 Hp
Feed Motor: 5 Hp
Three (3) sets of anti-kickback fingers
(4) individual Pneumatic pressure rolls
Steel Double V dip chain construction with urethane inserts
Powered out-feed roller
Automatic lubricator for feed chain.
Amp meter for monitoring arbor motor running amperage
Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances
Easy access to spindle and blades for maintenance and tooling changes
24″ Wide Solid Arbor
(4) Servo Controlled Movable Blades
Multiple Fixed Blades
Pocket Sizes between Saw Blades
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Between (2) Fixed Blades: 1″
Between Fixed Blade and 1st Movable Blade: 1″
Between (2) Movable Blades: 1.875″
Feed Speed
Minimum: 26 ft/min (8 m/min)
Maximum: 200 ft/min (60 m/min)
Minimum: 26 ft/min (8 m/min)
Maximum: 200 ft/min (60 m/min)
Electric Motors:
Arbor Motor: 60 – 75 Hp
Feed Motor: 5 Hp
Arbor Motor: 60 – 75 Hp
Feed Motor: 5 Hp
Three (3) sets of anti-kickback fingers
(4) individual Pneumatic pressure rolls
Steel Double V dip chain construction with urethane inserts
Powered out-feed roller
Automatic lubricator for feed chain.
Amp meter for monitoring arbor motor running amperage
Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances
Easy access to spindle and blades for maintenance and tooling changes
Yield Improvement over Hand feeding
Increased Safety for Operator
Full Production Tracking that includes:
Production Tallies
Rough Lumber tracking by length and Yield
Production Tallies
Rough Lumber tracking by length and Yield
Arbor Optimization (mainly used with large fixed arbor saws)
Bundle reports on packs of lumber
Simulation capabilities to simulate jobs before the wood ever hits the infeed
Product Value Decisions: software can choose rip widths based on which rips are more profitable for your company.
