Pillar HPMT: 3-Axis CNC Mortise and Tenon Machine for Precision Joints
Overview

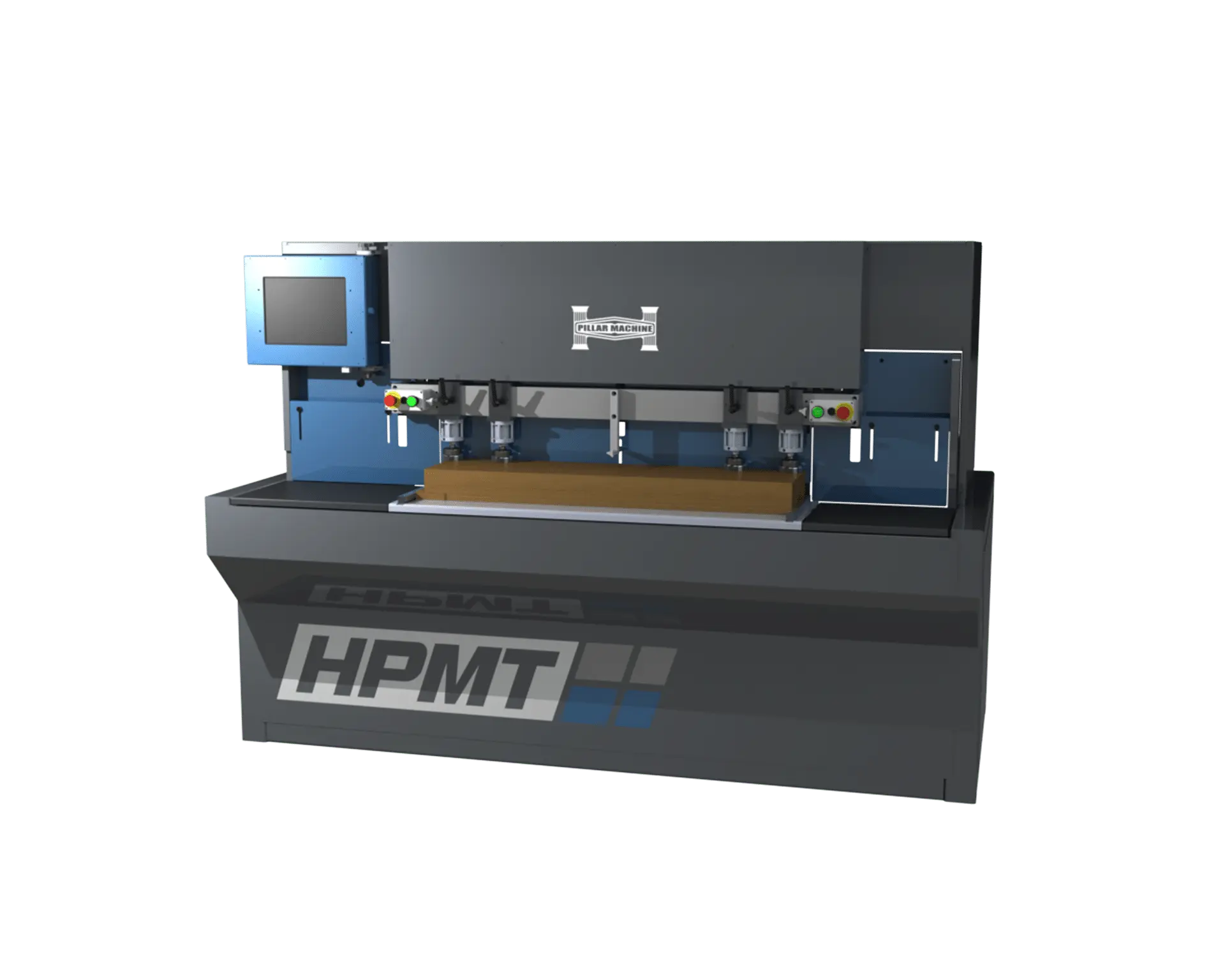

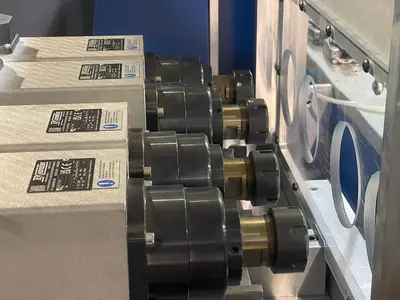

The HPMT is a 3-axis CNC horizontal mortise and tenon machine with a 48″ working length and two pendulum zones, handling material from 0.5″ to 2″ thick. Separate 3 HP mortise (24,000 RPM) and 6 HP tenon (18,000 RPM) spindles handle each operation; the same machine also cuts louvers, slots, and grooves. Table extensions to 96″ or 120″ are available.
Specs

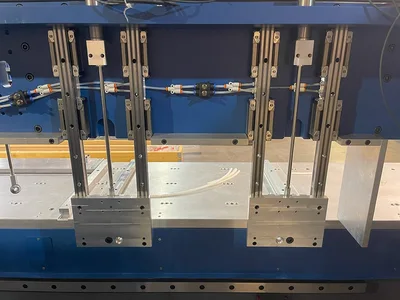

3-Axis CNC Precision: X, Y, and Z axes with rack-and-pinion and ball screw systems deliver exact mortise and tenon cuts for flawless joints.
Dual Work Zones: Two zones with left and right-hand programs enable pendulum processing, maximizing throughput with minimal downtime.
Versatile Machining: Cuts mortise and tenon joints, louvers, slots, and grooves, supporting cabinet, furniture, and shutter applications.
Flexible Capacity: Handles material up to 48″ wide (unlimited with side fence removal) and 2″ thick, accommodating diverse project needs.

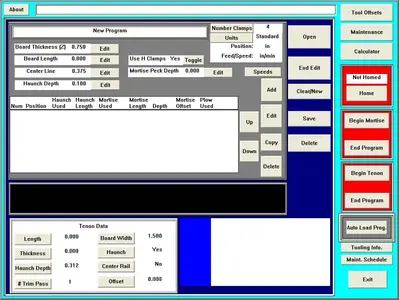

User-Friendly Interface: A 15″ touchscreen with graphical displays and parametric programming simplifies setup and operation.
Heavy-Duty Build: 2,800 lb. frame with high-precision square rail guides ensures durability in demanding shop environments.
Graphical displays for mortise, tenon, and groove placement.
Parametric programming for custom flexibility.
Password-protected editing and online diagnostics (with internet).
