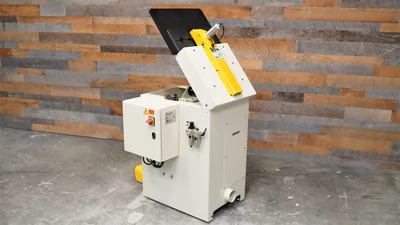

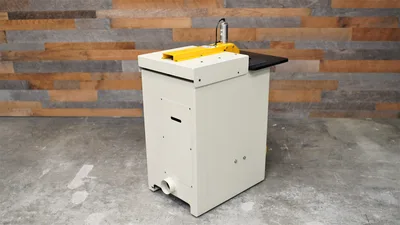

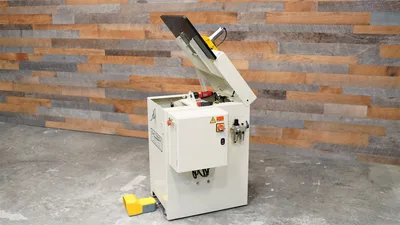

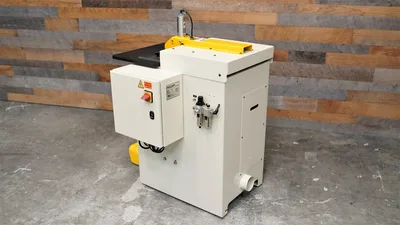

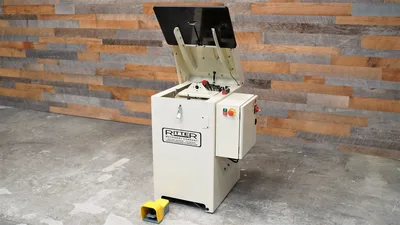

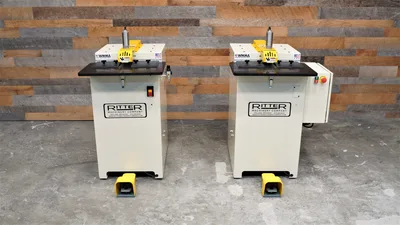

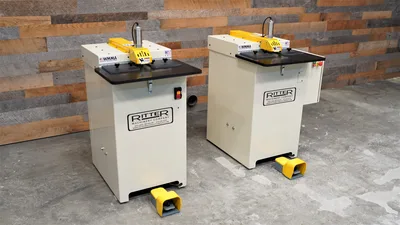

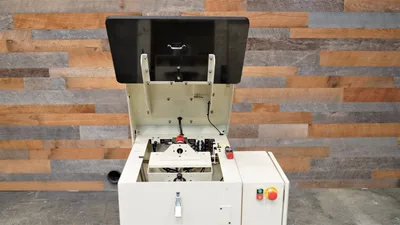

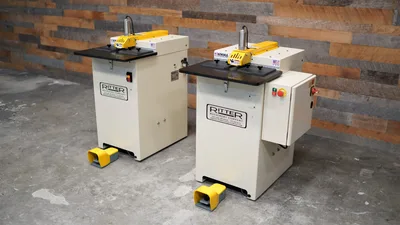

Ritter R2063 6° Low Angle Pocket Screw Machine

This is the NEWEST Pocket Screw machine from Ritter, released in 2021. In our opinion, it is the best machine out there. Remember, unlike drill tubs, these machines route the low-angle pocket. The low-angle pocket allows for a stronger joint, while routing the pocket means fewer split parts, especially in knotty species of wood. These are also the heaviest-built pocket screw machines on the market. Built right here in the USA.

6° Low angle

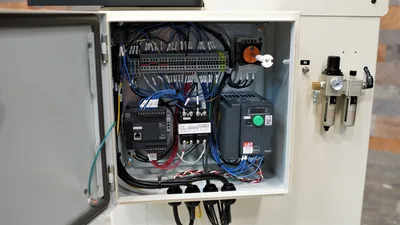

PLC controlled cycle

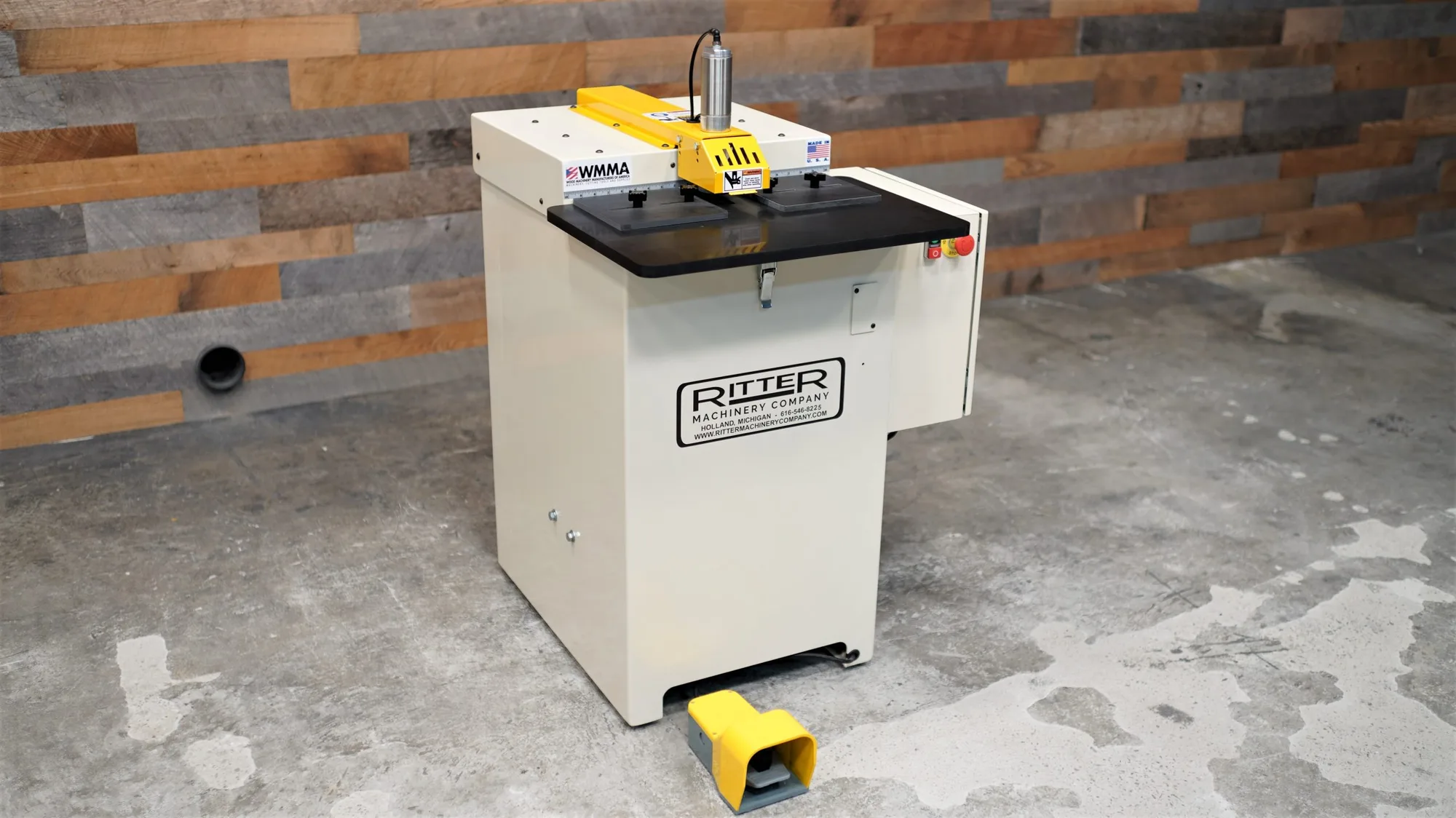

Foot pedal operated
Adjustable Material Stops
Up to 2″ thick material
Cycle Time: 1.75 – 2 Sec
Tooling Included

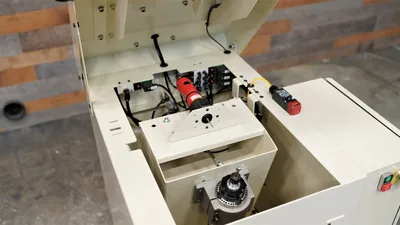

Router Bit: 3/8” Solid Carbide, Rough Mill
Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
Router: 24,000 RPM, 8 A, 2 HP
Drill: 22,000 RPM, 0.9 HP, 5.5 CFM (Intermittent)
Electrical: 230V, 3Ø, 10A
Air: 5.5 CFM at 80 – 100 PSI
Work height: 36″
Footprint: 27.75″ x 20.5″
Table Area: 15.75″ x 23.75″
Dust Port: 4″
48″ Wide Table
R2061 – 1-Phase 120 Volt
