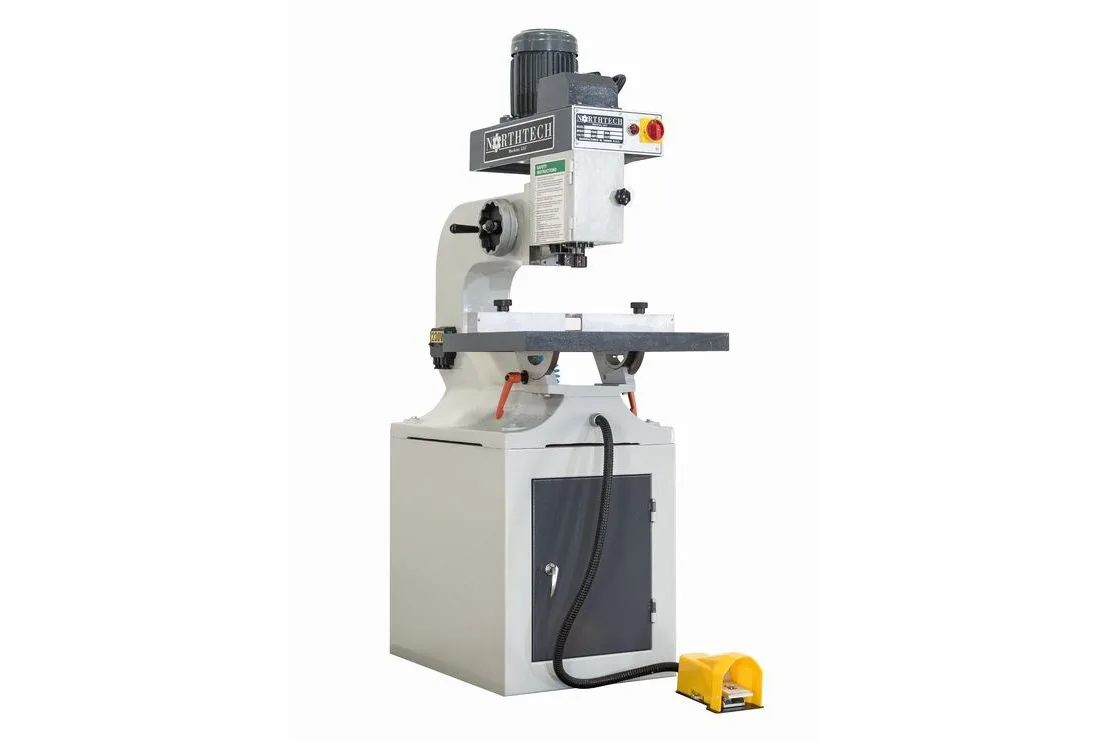

Northtech NT 555 Overarm Pin Router

The Northtech NT 555-532 Overarm Pin Router sports an efficient three-phase 5 HP motor with a maximum spindle speed of 17,800 RPM. The machine comes standard with ¼”, ⅜”, and ½” collets (and matching guide pins) to accommodate a variety of tooling. Vertical spindle movement is pneumatically controlled via foot pedal and allows for custom adjustment to both initial and final plunge speed.

5 HP spindle
Precision high-speed spindle bearings
¼”, ⅜”, and ½” collets
¼”, ⅜”, and ½” guide pins
Guide fence with adjustable position
Spindle speed of 8,900 & 17,800 RPM
Spindle moves up and down pneumatically (3-3/8” stroke)

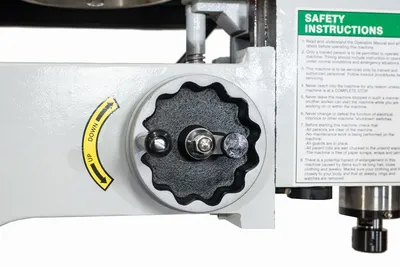

Three depth-of-cut adjustments easily set with turret gauge – micro-adjustment
Tilting table (0 – 45°)
Pneumatic foot control of spindle
Air-line control to adjust initial plunge speed
Restrictor in head to adjust final plunge speed
Blowgun and hose included for additional cleaning
Oiler to facilitate smooth movement of the spindle
660 lbs. cast iron construction
One-year parts warranty
All machines are tested prior to shipping to ensure trouble-free start-up
