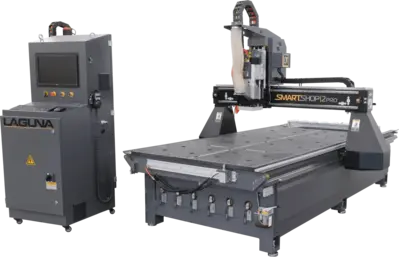

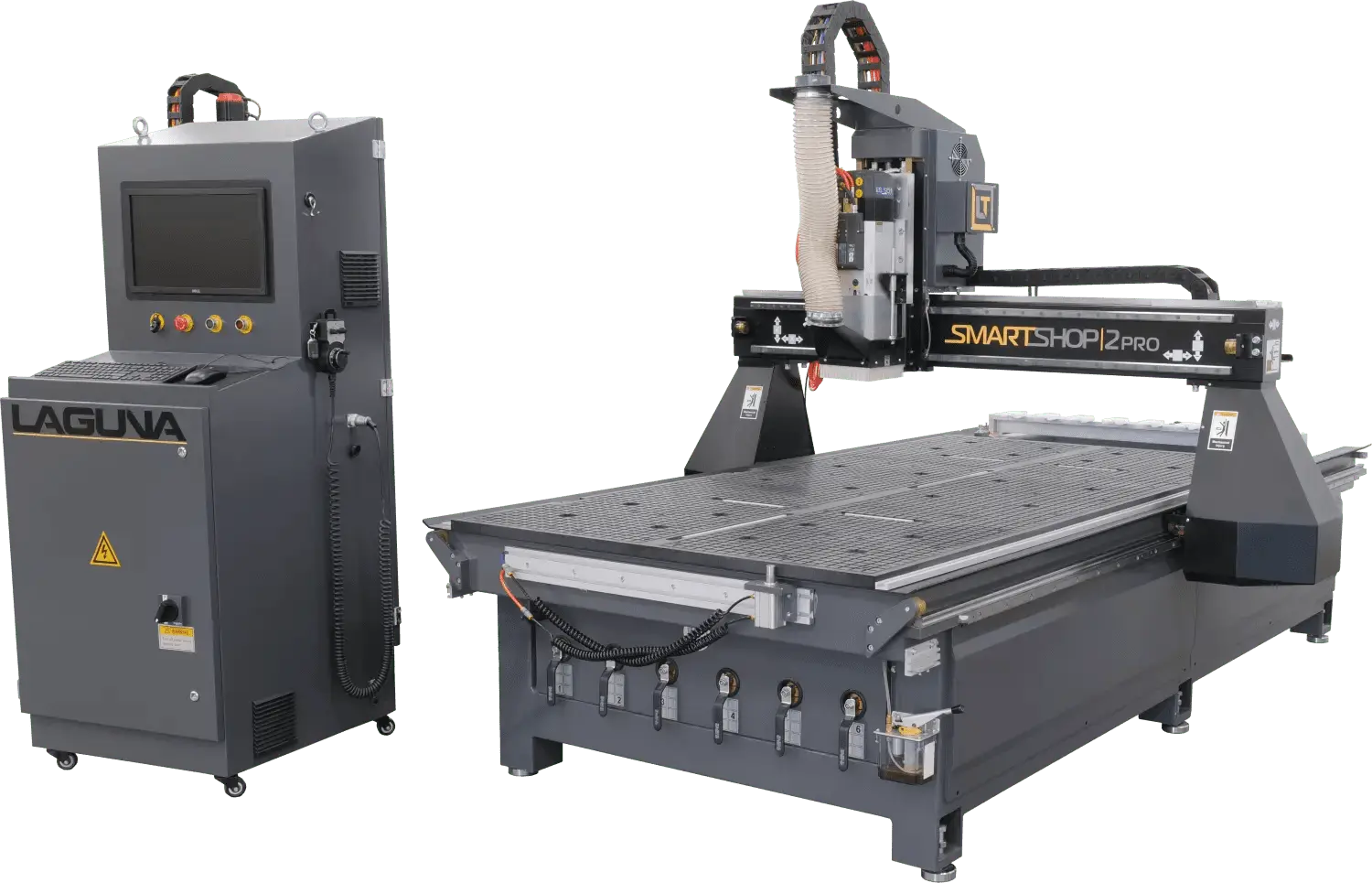

Laguna SmartShop® 2 Pro CNC Router
Overview
Description
The award-winning Smartshop® 2 Pro has been the workhorse of the Laguna line of CNC machines. Designed to cut everything from wood to non-ferrous metals, the Smartshop® 2 Pro is dependable and built to last. Constructed with an all-steel frame featuring helical rack and pinion, the Smartshop® 2 Pro excels at giving the precision you need with a cut quality rivaling any machine on the market.
Machine Details:
12HP HSD Spindle 5,000-24,000 RPM
Available In 4′ x 8′, 5′ x 10′, 5′ x 12′ Table Sizes
8 Position ISO 30 Automatic Tool Changing System
Yaskawa AC Servos Drive Motors
Up To 1,800 IPM Rapid Speed
Planetary Gear Box Drive System
12″ Z-Clearance
13″ Z Travel
6 Zone Vacuum Table
Syntec Industrial Control System
Helical Rack & Pinion X,Y Axis, Ball Screw Z Axis
Heavy-Duty One-Piece All-Steel Frame
