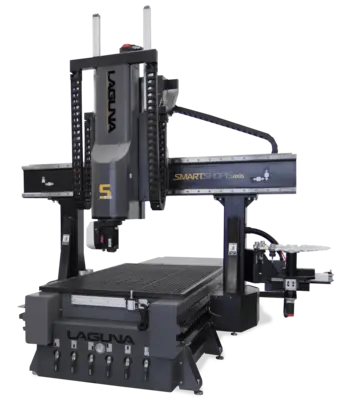

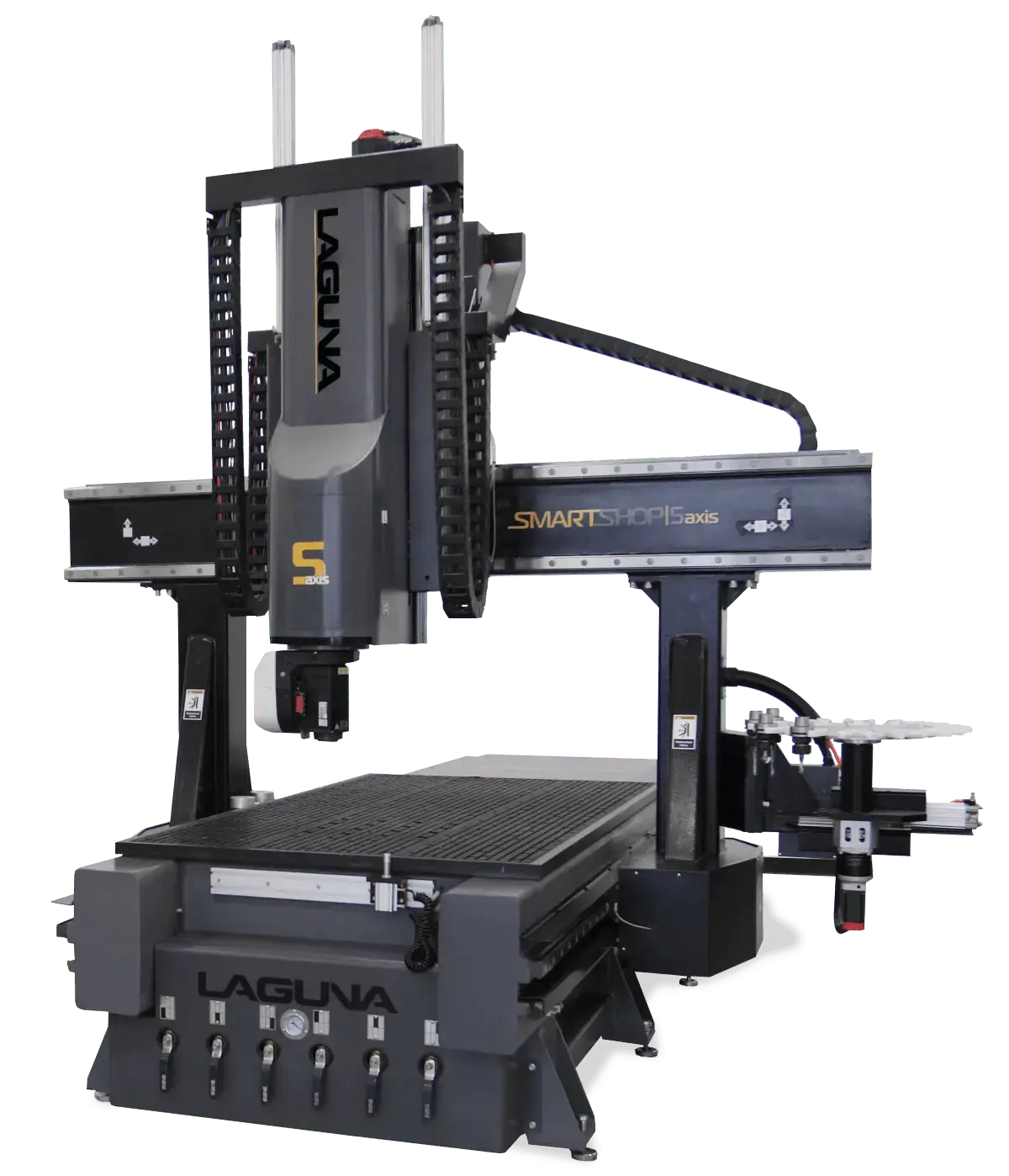

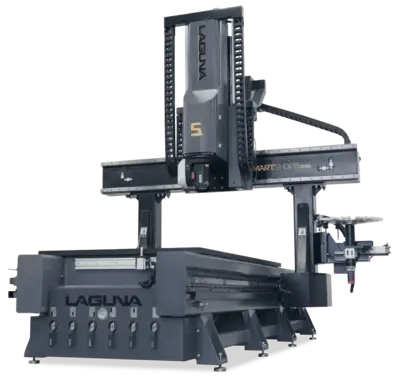

Laguna SmartShop® 5 Axis CNC Router
Overview
The Laguna SmartShop® 5 Axis machine delivers the flexibility of multiple cutting angles and compound machining with unmatched precision and cut quality. Starting with a robust 8600lb. all steel frame an HSD 2-axis articulating head and Fanuc’s industry leading 31i-B5 control. The SmartShop® 5 Axis is in a class by itself at a price point that is very economical.
Features:
FEA-Engineered: 8600 lbs. All Welded Steel Frame & Gantry
Fixed Table, Moving Gantry Design Allows For Easy & Unrestricted Access To All Sides Of The Machine
Standard 12-Position, Automatic Rotary Tool Changer
FANUC 31i-B5 Industrial Control With FANUC 1,500-Watt Servo Package
Universal Vacuum Table: Pod Ready
Adjustable Pop-Up Pins
HSD 2-Axis 9HP Spindle
Specs
Factory-Provided Advanced Technical & Applications Support
Onsite Machine Installation & Training
Full 5-axis 3D Capacity With Tool Center Point Programming
Standard Table Sizes: 4′ x 8′ & 5′ x 10′
Laguna Universal Vacuum Table: Pod Ready
One-Piece Welded Tubular Steel Frame (8600lbs.)
9HP HSD 2-Axis Articulating Spindle
HSK-63F Tool Holders
Cutting Speeds Up To 1,000 in/min
Rapid Travel Up To 2,500 in/min
6-Zone Vacuum Table
Z-Axis Clearance: 20″ – 36″
Laguna Full 1-Year Warranty
FANUC Controller 2-Year Warranty
