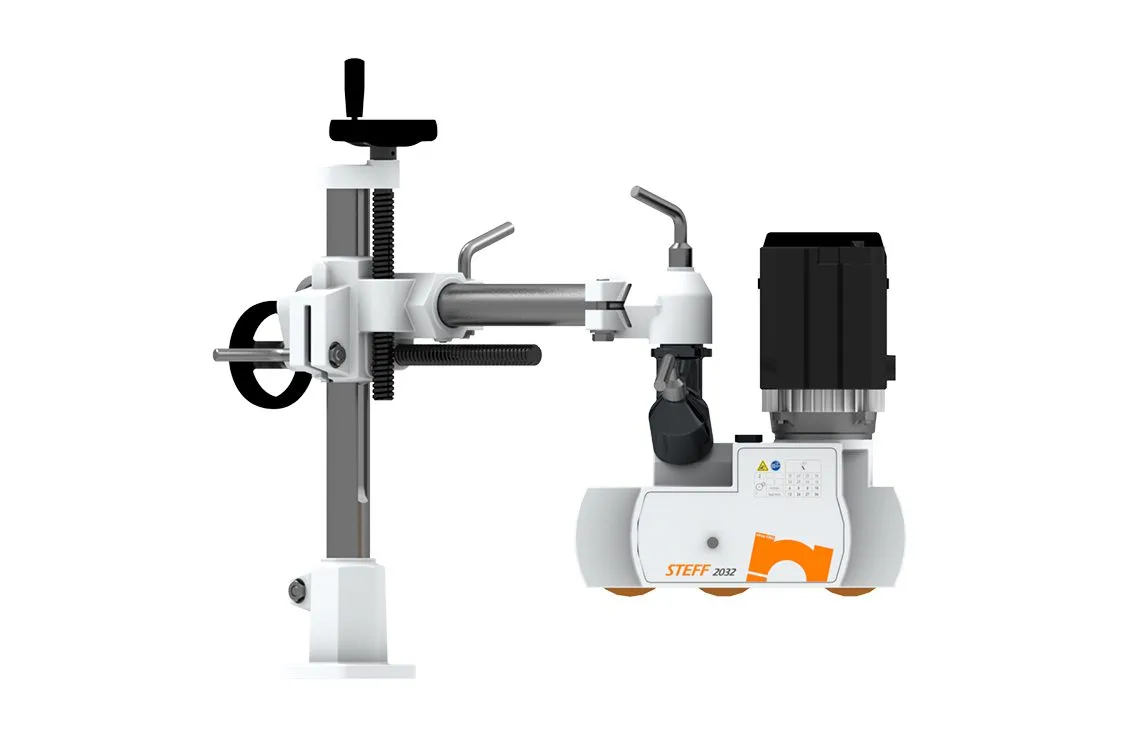

Steff 2032 3-Roll 4-Speed Power-Feeder

The 2032 is the compact entry-level Steff feeder: 3 rubber rolls, 4 fixed speeds (4, 8, 9, and 18 m/min), and the smallest footprint in the line at 330x303x150 mm. Available in single-phase (0.52 kW) or three-phase (0.75 kW). Roller vertical travel is 9/16″, slightly less than the larger models.

Roller/Belt Vertical Range of Motion is 9/16 inches.
Electrostatic paint finish.
Sintered case hardened gears.
Bronze alloy main drive gear.
Natural rubber, 50 shore hardness rollers/belts. (Polyurethane rollers are also available).
Calibrated spring support to maintain consistent roller contact.
