Northtech NT ES43 4 Sided Straight and Curved Part Edge Sander

Versatile 4 Sided Straight and Curved Part Edge Sander.

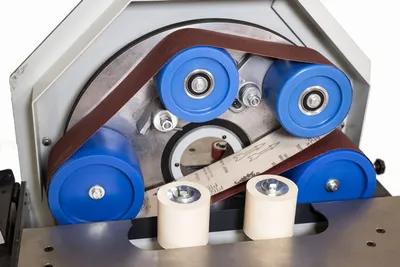

2 Belt with 360° rotation
(1) 1HP sanding motor
(1) 1/4HP 0 – 35 FPM variable speed feed
Min. working length: 350mm (13-3/4″) for straight workpiece
200mm (7.8″) radius and greater
Min. workpiece curve: 400mm (8″) radius and greater
Round rod working diameter: 10~75mm (3/8 – 3″)
Sanding belt size: (2) 1220mm x 90mm (48-1/2″ x 3-1/2″)
Variable rotational belt speed control: 0~1102M/min (0-3600 FPM)
Auto feeding system optional variable speed of 0 – 35 FPM
(1) 5″ dust port requiring 681 CFM @ point of extraction
Net weight: 626 lbs.
Gross weight: 700 lbs.
Machine dimensions: (L)36″ x (W)32″ x (H)48″
Packing dimensions: (L)42″ x (W)38″ x (H)53″
(1) Toolbox
Warranty is one-year parts
All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble-free start-up.
Main Motor Hp. = 1 Hp.
Machine Hp. = 1.25 Hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 2 Amps
Feed Hp. = .25 Hp

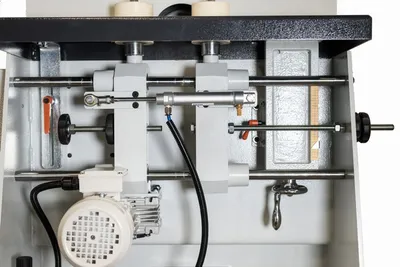

Feed System = (2) 3×3 Rubber Wheels
Drive System = .25 Hp. Motor to Gear Box
Feed Speed = 0 – 35 FPM
Variable Speed = Inverter Controlled
Reverse Feed = Reversible Feed

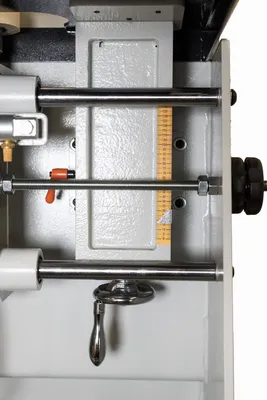

Elevation Style = Manual Wheel Adjustment
Total Hp. = 1.25 Hp.

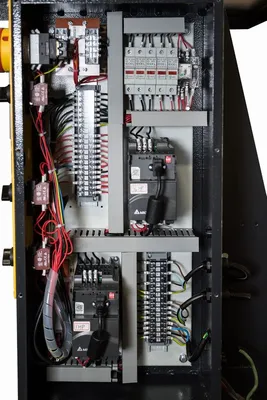

Electronics = UL Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Operator Panel = Fixed
Pass-Line = 33-1/2”
Min. Length = 13-3/4”
Min. Width = 3/8”
Max. Width = 3”
Sandpaper Size = (2) 3-1/2” x 48-1/2”
Vertical Travel = 3”
Dust Collection = (1) 5” @ 681 CFM
Powered Rollers = (1) Feed Wheel
Idle Rollers = (1) Idle Roller
FLR Included = Filter, Lubricator, Regulater
Guarding = Full Enclosure
Frame Const. = 1/4” Steel Construction
Infeed Table = 12” x 24-1/2”
Outfeed Table = 12” x 24-1/2”
Decible Rating = 65 dB
Net Weight = 626 Lbs.
Gross Weight = 700 Lbs.
Machine Dims. = 32” x 36” x 48”
Packaging Dims = 38” x 42” x 53”
