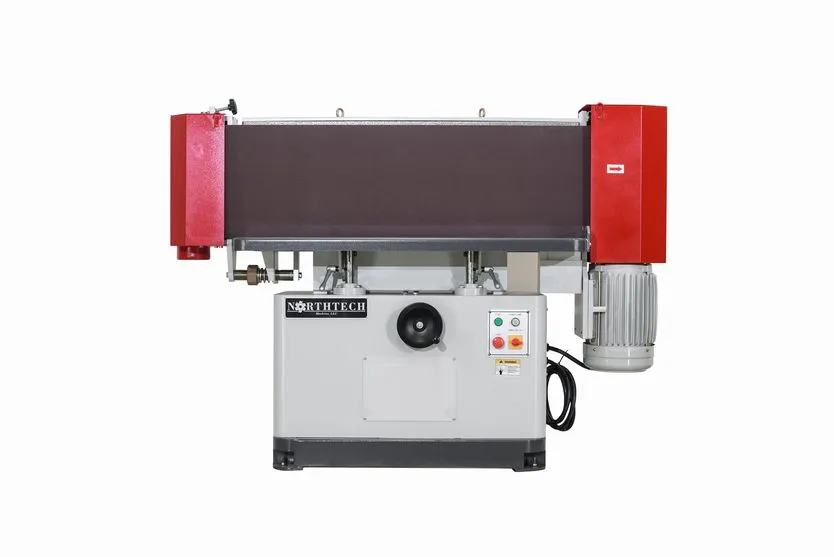

Northtech NT ES1648D 16″ X 48″ Capacity Drawer Box Edge Sander

This machine features 16″ X 48″ platens and is powered by a 10 hp main motor. The oscillating stroke is 1/2″.

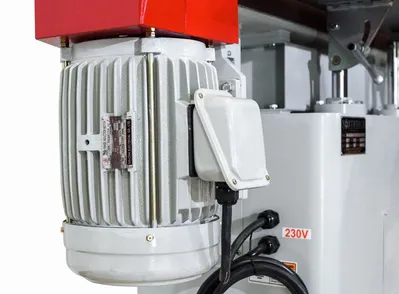

10HP main motor; 3PH, 230V/460V Dual Voltage
(1/2″) oscillating stroke
Drive wheel: 7″ x 17″
Dual steel tables for two operators
Easy elevation control through the manual worm gear
Side table dimensions: (2) 10-1/2″ x 48″
Sanding belt size: 16″ x 143″ (Included)
Side table tilt: 0° – 45°
Sanding belt speed: 970 m/min (3,300 FPM)
Platen size: (2) 16.5″ x 48″
Dust Ports: (2) 4″ requiring 900 CFM @ point of extraction
Easy jig fences are standard for squaring accuracy and part stability
Machine Dimensions: 72″ x 29″ x 53″
Packaging Dimensions: 75″ x 33″ x 59″
Net weight: 1,181 lbs
Gross weight: 1,253 lbs
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.
Direct Drive = Motor to 7” x 16-3/4” Pulley
Machine Hp. = 10 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 30 Amp s
Elevation Sys. = (2) Post Jack Screw
Elevation Style = Manual Wheel Adjustment
Total Hp. = 10 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Pass-Line = 32”
Max. Length = 48”
Max. Thickness = 16”
Sandpaper Size = 16” x 143”
Platen Specs. = 16-1/2” x 48”
1st Belt Speed = 3300 FPM
Oscillation Sty = Gear Box with Cam
Oscillation Rte = 30 Cycles/Minute
Oscillation Trv = 3/8”
Tracking Style = Manual Adjustment
Tension Style = Manual Adjustment
Vertical Travel = 7-1/4” Table Travel
Dust Collection = (2) 5” @ 1362 CFM
Dust Port Out = (2) 5” Outlets
Emergency Stop = Push Button
Guarding = High Visibility Guarding
Fence Type = Jig Fence
Tiltable = 45 Degrees
Frame Const. = 1/4” Steel Construction
Side Table Dim. = 10-1/2” x 48”
Table Const. = Steel
Decible Rating = 80 dB
Net Weight = 1181 Lbs.
Gross Weight = 1253 Lbs.
Machine Dims. = 72” x 29” x 53”
Packaging Dims = 76” x 34” x 59”
