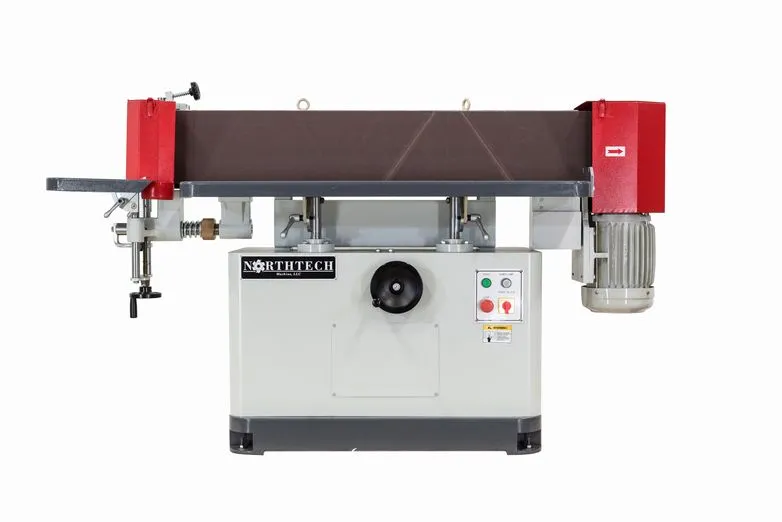

Northtech NT ES948SE‑532 9″ X 48″ Capacity Single Sided Oscillating Edge Sander

This machine features 9″ X 48″ platens and is powered by a 5 hp main motor. The oscillating stroke is 3/8″.

5HP main motor; 3PH, 230V/460V Dual Voltage
(3/8″) oscillating stroke
Drive wheel: 7″ x 9-5/8″
Easy elevation control through manual worm gear
Side table dimensions: (1) 10-1/2″ x 48″
Side table tilt: 0° – 45°
End table dimensions: (1) 13-3/4″ x 16-1/2″
End table tilt: 0° – 45°
Sanding belt size: 9″ x 134″ (Included)
Sanding belt speed: 3,300 FPM
Platen size: 9.5″ x 48″
Dust ports: ( 2) 4″ requiring 500 CFM @ point of extraction
Easy jig fences are standard for squaring accuracy and part stability
Part thickness: 9″
Machine Dimensions: 76″ x 25-1/2″ x 45-1/2″
Packaging Dimensions: 81″ x 31″ x 52″
Net weight: 696 lbs
Gross weight: 870 lbs
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside prior to shipment providing trouble-free start-up.
Direct Drive = Motor to 7” x 9-5/8” Pulley
Machine Hp. = 5 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 15 Amps
Elevation Sys. = (2) Post Jack Screw
Elevation Style = Manual Wheel Adjustment
Total Hp. = 5 Hp.
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Pass-Line = 32”
Max. Length = 48”
Max. Thickness = 9”
Sandpaper Size = 9” x 134”
Platen Specs. = 9” x 48”
1st Belt Speed = 3300 FPM
Oscillation Sty = Gear Box with Cam
Oscillation Rte = 30 Cycles/Minute
Oscillation Trv = 3/8”
Tracking Style = Manual Adjustment
Tension Style = Manual Adjustment
Vertical Travel = 5-3/4” Table Adjustment
Dust Collection = (2) 4” @ 900 CFM
Emergency Stop = Push Button
Guarding = High Visibility Guarding
Fence Type = Jig Fence
Frame Const. = 1/4” Steel Construction
End Table Dims. = 13-3/4” x 16-1/2”
Worktable Dims. = 10-1/2” x 48”
Table Const. = Steel
Decible Rating = 72 dB
Net Weight = 696 Lbs.
Gross Weight = 870 Lbs.
Machine Dims. = 76” x 25-1/2” x 45-1/2”
Packaging Dims = 81” x 58” x 74”
