Northtech NT ES1248SE 12″ X 48″ Capacity Single Sided or Dual Sided Oscillating Edge Sander
Overview
Description

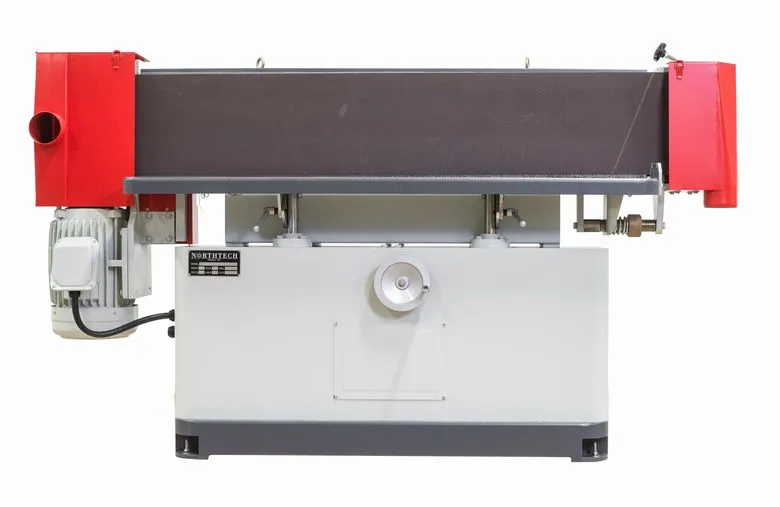

This machine features 12″ X 48″ platens and is powered by a 7.5 hp main motor. The oscillating stroke is 1/2″. Available in either single sided or dual sided versions. (single sided pictured)
Specifications
Direct Drive = Motor to 7” x 12” Pulley
Machine Hp. = 7.5 hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 22 Amps
Elevation Style = Manual Wheel Adjustment
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Pass-Line = 32”
Sandpaper Size = 12” x 136”
Platen Specs. = 12” x 48”
Drum Specs. = 7”x 12” Steel 4-3/4”x 12.5′
Roller Type = Steel / Rubber
Oscillation Sty = Gear Box Driven
Oscillation Trv = 1/2”
Tracking Style = Manual Adjustment
Tension Style = Manual Adjustment
Dust Collection = (2) 4” @ 900 CFM
Dust Port Out = 2 4” Top
Emergency Stop = Push Button
Guarding = High Visibility Guarding
Tiltable = 45 Degrees
Frame Const. = 3/16” Steel Construction
End Table Dims. = 13-3/4” x 16-1/2”
Side Table Dim. = 10” x 48”
Table Const. = Steel
Decible Rating = 77 dB
Net Weight = 977 Lbs.
Gross Weight = 1003 Lbs.
Machine Dims. = 69” x 25” x 49”
Packaging Dims = 82” x 30” x 55”
