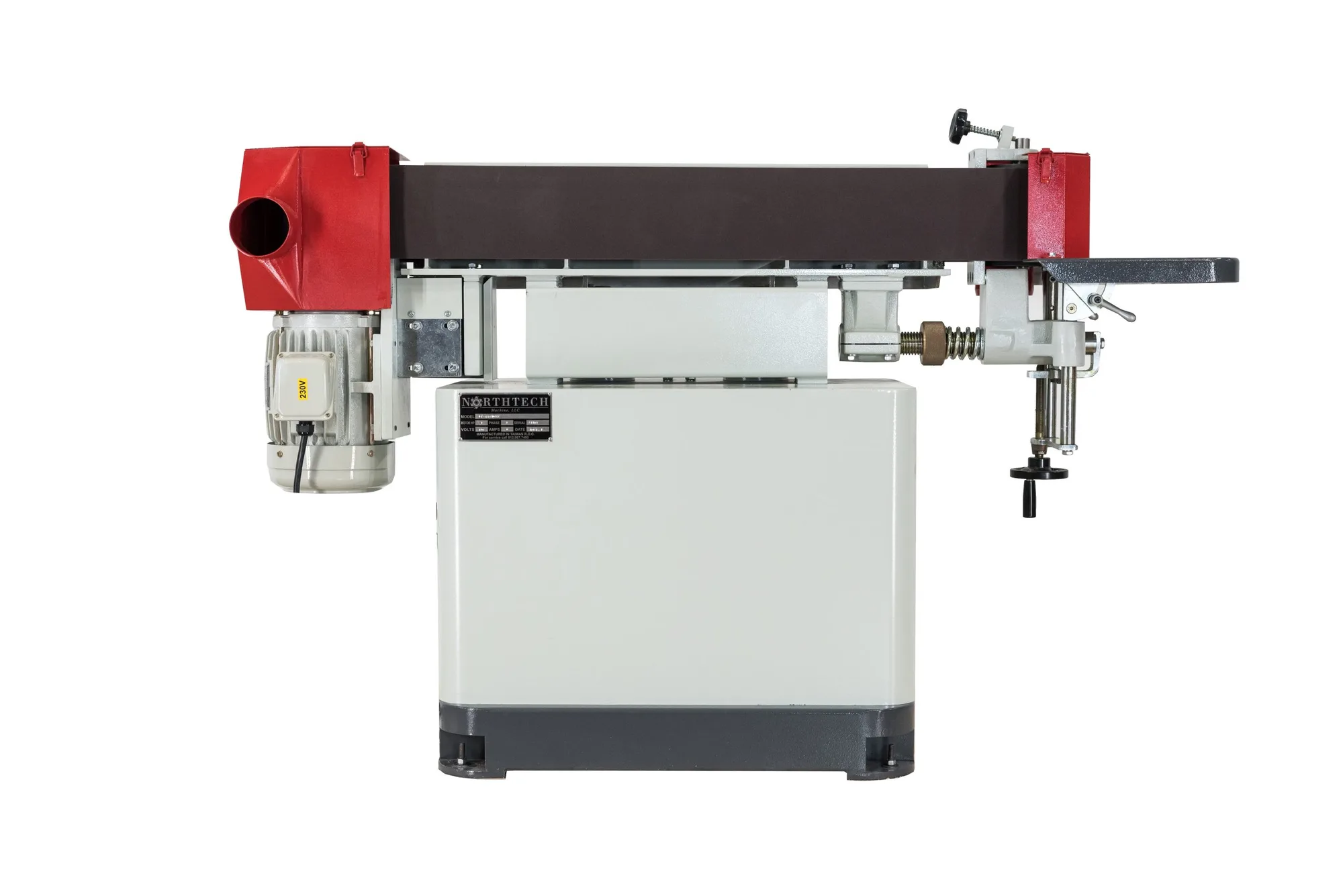

Northtech NT ES636SE 6″ X 36″ Capacity Single Sided Oscillating Edge Sander

This machine features 6″ X 36″ platens and is powered by a 3 HP main motor. The oscillating stroke is 3/8″.

3HP main motor; 3PH, 230V/460V Dual Voltage
 (3/8″) oscillating stroke
Drive wheel: 7″ x 6-5/8″
Easy elevation control through the manual worm gear
Side table dimensions: (1) 10-1/2″ x 35-3/4″
Side table tilt: 0° – 45°
End table dimensions: (1) 13-3/4″ x 16-1/2″
End table tilt: 0° – 45°
Sanding belt size: 6″ x 109″ (Included)
Sanding belt speed: 3,300 FPM
Platen size: 6.5″ x 36″
Dust ports: ( 2) 4″ requiring 500 CFM @ point of extraction
Easy jig fences are standard for squaring accuracy and part stability
Machine Dimensions: 64″ x 25″ x 39-1/2″
Packaging Dimensions: 69″ x 31″ x 49″
Net weight: 572 lbs
Gross weight: 725 lbs
(1) Toolbox
Warranty is one-year parts
All machines are tested stateside before shipment providing trouble-free start-up.
Direct Drive = Motor to 7” x 6-5/8” Pulley
Machine Hp. = 3 hp.
Voltage/ Freq. = 230/460Volt 60Hz
Phase = 3 Phase
Amp Requirement = 9/4.5 Amps
Elevation Sys. = (2) Post Jack Screw
Elevation Style = Manual Wheel Adjustment
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Pass-Line = 32”
Max. Length = 36”
Max. Thickness = 6”
Sandpaper Size = 6” x 109”
Platen Specs. = 6” x 36”
1st Belt Speed = 3300 FPM
Oscillation Sty = Gear Box with Cam
Oscillation Rte = 30 Cycles/Minute
Oscillation Trv = 3/8”
Tracking Style = Manual Adjustment
Tension Style = Manual Adjustment
Vertical Travel = 4” Table Travel
Dust Collection = (2) 4” @ 900 CFM
Emergency Stop = Push Button
Guarding = High Visibility Guarding
Fence Type = Jig Fence
Tiltable = 45 Degrees
Frame Const. = 1/4” Steel Construction
End Table Dims. = 13-3/4” x 16-1/2”
Worktable Dims. = 10-1/2” x 35-3/4”
Table Const. = Steel
Decible Rating = 72 dB
Net Weight = 570 Lbs.
Gross Weight = 722 Lbs.
Machine Dims. = 64” x 25” x 39-1/2”
Packaging Dims = 68” x 30” x 49-1/2”
