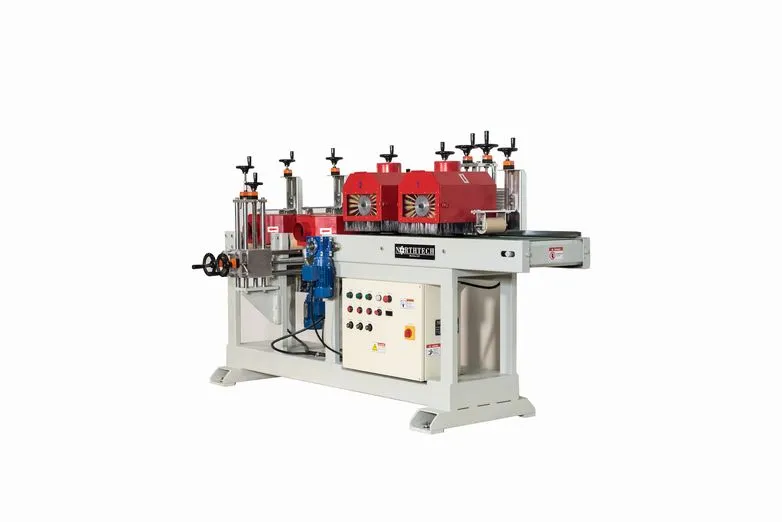

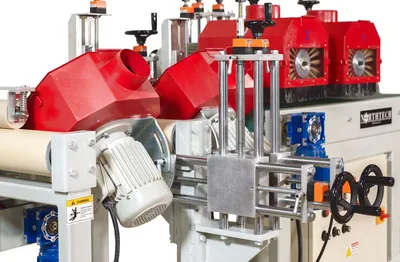

Northtech NT MBS12‑2T1R2L‑EL Five Head Moulding Brush Sander

This machine has a 4-3/8″ X 12-1/2″ capacity and feed speeds up to 105 FPM. A very cost-effective solution to many common sanding needs.

Sanding configuration: 2 Top + 1 Right + 2 Left
Working width 1-3/4″ – 12.5″
Working thickness range: 1/8″ – 4-3/8″
Minimum working length: 18-1/2″

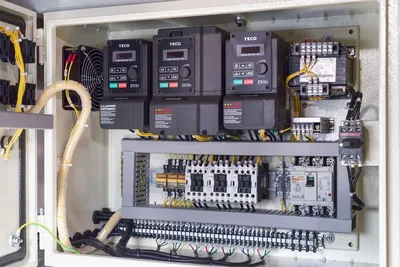

Sanding heads RPM is inverter controlled

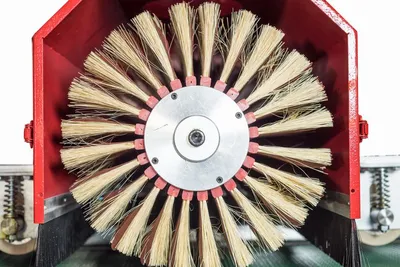

Sanding heads included with customer choice of 80-400 grit at time of order
(2) 1/3HP feed motors with 25-105 feed speed range

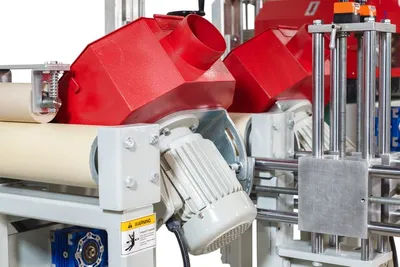

(2) 5″ top dust ports requiring 681 CFM @ point of extraction
(3) 4″ side dust ports requiring 436 CFM @ point of extraction
230V/460V 24 AMP / 12 AMP
Net / Gross weight: Approx. 1,240lbs / Approx. 1,645lbs
Machine /Packing dimensions (LxWxH): 89″ x 49″ x 67″ / 93″ x 50″ x 75″
Tool box and Operation/Parts Manual included
Warranty is one year parts
Northtech offers a full line of dust collectors for any application.
All machines are tested stateside prior to shipment providing trouble-free start-up.
Machine Hp. = 4 Hp.
Voltage/ Freq. = 230 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 12 Amps

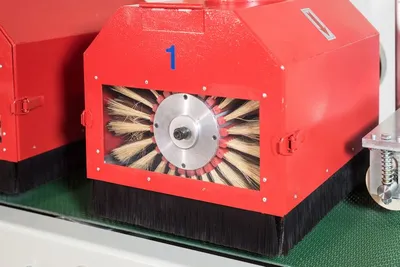

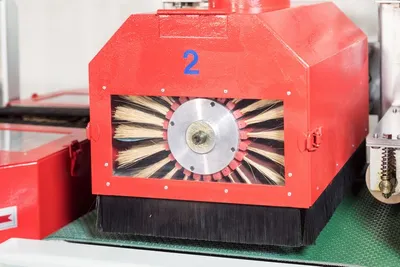

1st Head = 12-3/8” x 10-1/2” Brush Sand
2nd Head = 12-3/8” x 10-1/2” Brush Sand
3rd Head = 4-3/8” x 10-1/2” Brush Sande
4th Head = 4-3/8” x 10-1/2” Brush Sande
5th Head = 4-3/8” x 10-1/2” Brush Sande
Feed Hp. = (2) 1/3 Hp. Motors
Feed System = Belt / (2) Pinch Rollers
Feed Speed = 25-105 FPM
Variable Speed = Inverter Controlled

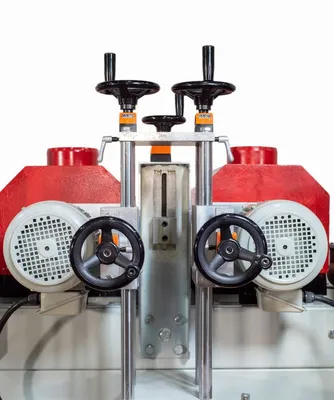

Elevation Style = Manual Wheel Adjustment
Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 24 Volt Control Voltage
Pass-Line = 34-1/4”
Min. Length = 18-1/2”
Min. Width = 1-3/4”
Max. Width = 12-1/2”
Min. Thickness = 1/8”
Max. Thickness = 4-3/8”
Dust Collection = (2) 5” (3) 4” 2670 CFM Total
Digital Display = Feed
Conveyor = 12” x 54”
Powered Rollers = (2) Powered Rollers
Idle Rollers = (5) Top Idle Rollers
Emergency Stop = Push Button
Fence Type = Adjustable Fence
Tiltable = Head 3/4/5 45 Degrees
Measure Meth. = Siko Counter
Decible Rating = 67 dB
Net Weight = 1240 Lbs.
Gross Weight = 1625 Lbs.
Machine Dims. = 93” x 53” x 56”
Packaging Dims = 98” x 55” x 66”
