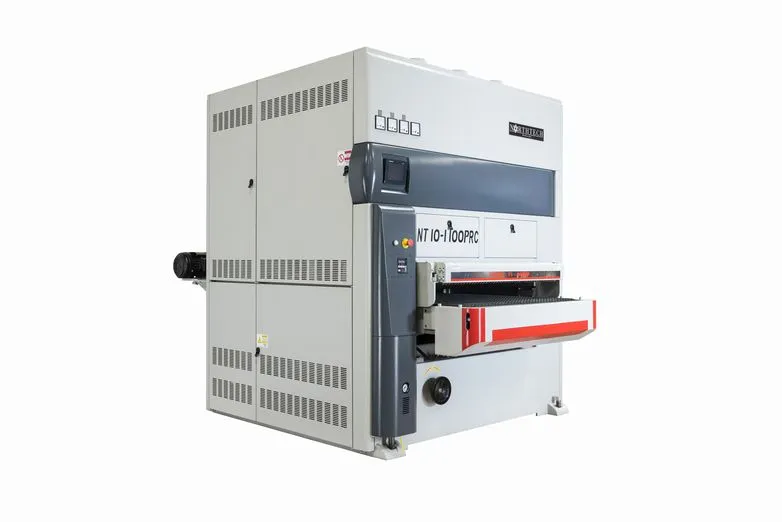

Northtech NT 10‑1100PRP Planer Sander (3 Head/Next Gen Helical)
Overview
Description
This machine features a 7″ Next Generation 6 row helical head up front, 10″ drum in the middle, and a combination head in the rear. This machine also has the power required to power thru material with it’s 40/40/30 hp motors it will give you a smooth finish even at higher feed speeds.
***This machine is also available in other working widths.
Specifications
Machine Hp. = 117 hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 136 Amps
Configuration = Planer, Roller, Pad
1st Head = 40Hp. 7” Spiral Helical Head
2nd Head = 40 Hp. 10” Spiral Fluted Rubb
3rd Head = 30 Hp. 3-1/4” Pad
Brush Motor Hp. = 1 Hp.
Feed Hp. = 5 Hp.
Feed System = 43” Rubber Feed Mat

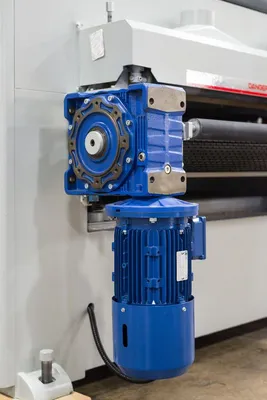

Drive System = Gear Box Inverter Controlled
Feed Speed = 15 – 60 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 1 Hp.
Elevation Sys. = (4) Post Jack Screw
Elevation Style = Auto Touch Screen Control
Total Hp. = 117 Hp.

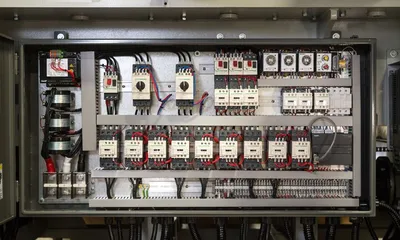

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 230 Volt
Programmable = Elevation
Touch Screen = 8” Digital Touch Screen
Min. Length = 20”
Max. Width = 43”
Min. Thickness = .372”
Max. Thickness = 4-3/4”
Tooling = 30 x 12 x 1.5 mm
Head Type = Dynamically Balanced Helical Head
Cutter Head Dim = 7” x 44-1/4”
Cut Head Matl. = Alloy Steel
Rows of Cutters = 6 Rows
No. of Inserts = 264
Insert Size = 30 x 12 x 1.5 mm
Sandpaper Size = 43” x 103”
Platen Specs. = 4” x 44-1/2” with 8” Graphi
1st Belt Speed = 5000 FPM
2nd Belt Speed = 2700 FPM
Oscillation Sty = Pneumatic Controlled
Oscillation Rte = 20 Cycles/Minute
Oscillation Trv = 1/2”
Cleaning System = Oscillating Jet Blow Off
Tracking Style = Pneumatic Dust Proof Eye
Tension Style = Pneumatic
Dust Collection = (13) 5” @ 8853 CFM
Dust Port Out = 5”
Digital Display = Touch Screen 8”

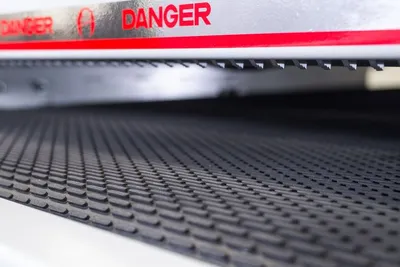

Conveyor = Seamless
Idle Rollers = (12) Hold Down Rollers
Pressure Shoes = 9” 12” 10” 5-1/2” x 48”
Hold Down Style = Spring Loaded Pressure Shoes
Kickback Finger = (45) 1/4” Fingers
Emergency Stop = (1) Push Putton (2) Bars

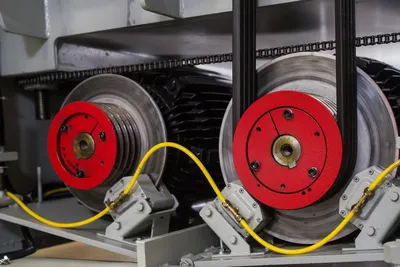

Brake System = (3) Pneumatic Dual Caliper Dis
Frame Const. = 1” Steel Construction
Decible Rating = 78 dB
Net Weight = 13228
Gross Weight = 14000
Machine Dims. = 104” x 74” x 92”
Packaging Dims = 115” x 79” x 99”
