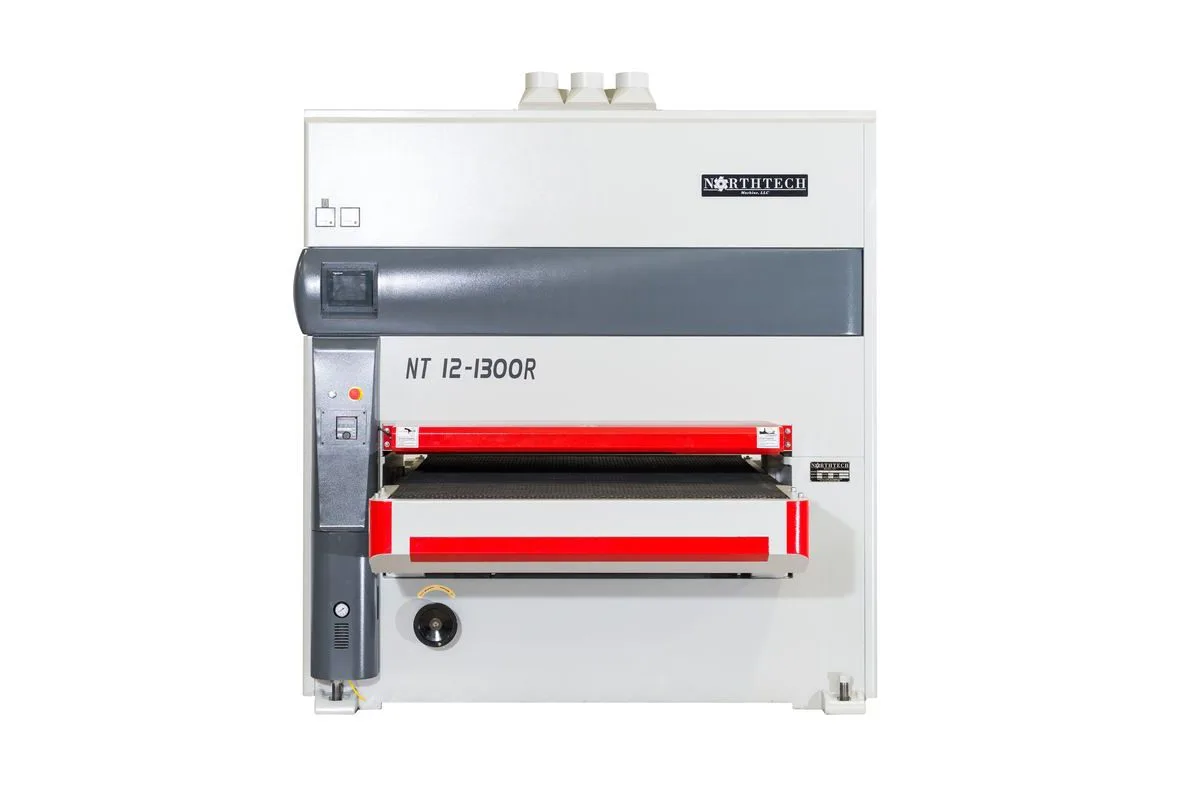

Northtech NT 12‑1300R Wide Belt Sander W/Brush Head
Overview
Description
This is a very robust machine. With its larger diameter 12″ head and 40 hp main motor it is capable of powering thru material with ease. The second station is a cleaning brush.
Specifications
Main Motor Hp. = 40 hp.
Machine Hp. = 45 hp.
Voltage/ Freq. = 460 Volt 60Hz
Phase = 3 Phase
Amp Requirement = 53 Amps
Configuration = Spiral Fluted Steel Roller
1st Head = 40 Hp. 12” Spiral Fluted Steel
Brush Motor Hp. = 1 Hp.
Feed Hp. = 3 Hp.
Feed System = 51” Rubber Feed Mat
Drive System = Gear Box Inverter Controlled
Feed Speed = 15 – 60 FPM
Variable Speed = Inverter Controlled
Elevation Hp. = 1 Hp.
Elevation Sys. = (4) Post Jack Screw
Elevation Style = Auto Touch Screen Control
Total Hp. = 45 Hp.

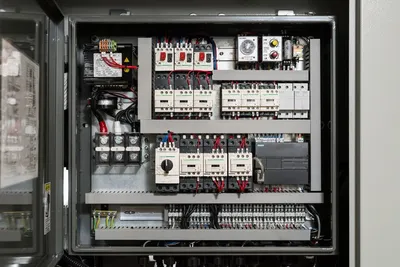

Electronics = CE Approved Components
Dual Voltage = 230/460 Volt
Control Voltage = 230 Volt
Programmable = Elevation
Touch Screen = 8” Digital Touch Screen
Min. Length = 16”
Max. Width = 51”
Min. Thickness = .196”
Max. Thickness = 4-3/4”
Sandpaper Size = 53” x 103”
Roller Type = 12” Spiral 11/16 Flute Steel
1st Belt Speed = 4725 FPM
Oscillation Sty = Pneumatic Controlled
Oscillation Rte = 20 Cycles/Minute
Oscillation Trv = 1/2”
Cleaning System = Oscillating Jet Blow Off
Tracking Style = Pneumatic Dust Proof Eye
Tension Style = Pneumatic
Dust Collection = (6) 5” @ 5886 CFM
Dust Port Out = 5”
Digital Display = Touch Screen 8”
Conveyor = Seamless
Pressure Shoes = 5” x 51” Steel
Hold Down Style = Pressure Shoes/Rubber Rollers
FLR Included = Filter, Lubricator, Regulater
Recommended CFM = 681 CFM @ Extraction Points
Emergency Stop = (1) Push Putton (2) Bars

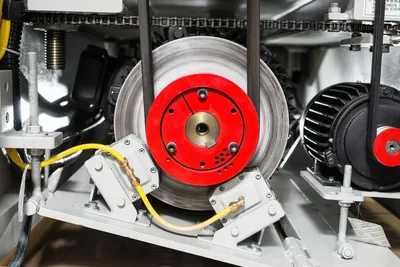

Brake System = (3) Pneumatic Dual Caliper Dis
Frame Const. = 1” Steel Construction
Measure Meth. = Digital
Surface Toler. = .019” – .039”
Decible Rating = 75 dB
Net Weight = 6600 Lbs.
Gross Weight = 7480 Lbs.
Machine Dims. = 88” x 74” x 92”
Packaging Dims = 91” x 90” x 99”
